Agrimate AM-MT-320M-WT User Manual

Wheel trolly / transporter
Hide thumbs

Advertisement

Quick Links

Download this manual

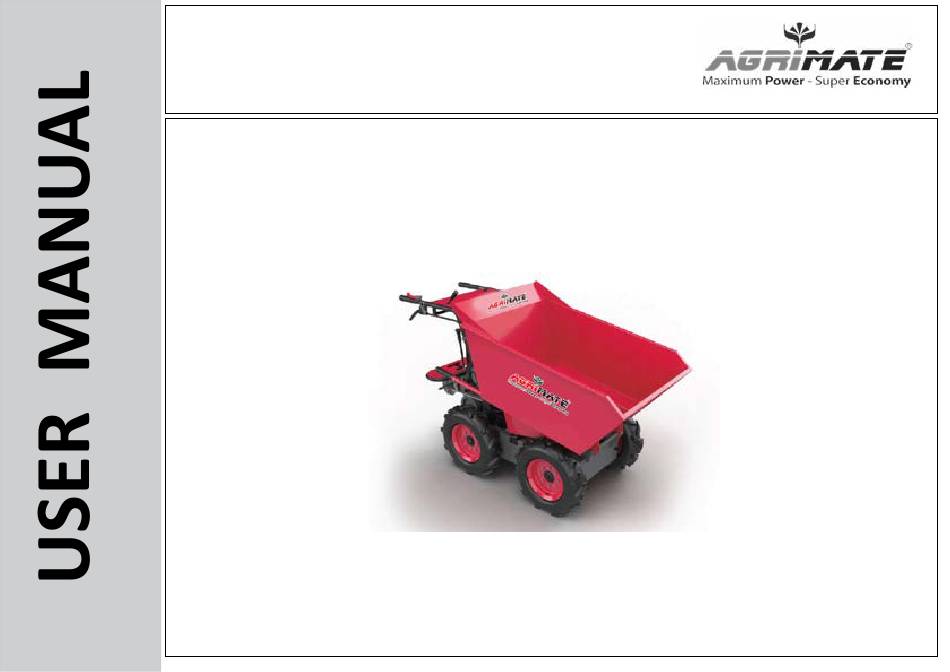

WHEEL TROLLY / TRANSPORTER
AM-MT-320M-WT
TRANSMISSION PART LIST

Advertisement

loading
Need help?

Need help?

Do you have a question about the AM-MT-320M-WT and is the answer not in the manual?

Questions and answers

Related Manuals for Agrimate AM-MT-320M-WT

Summary of Contents for Agrimate AM-MT-320M-WT

  • Page 1 WHEEL TROLLY / TRANSPORTER AM-MT-320M-WT TRANSMISSION PART LIST...

  • Page 2: Technical Specifications

    TECHNICAL SPECIFICATIONS WHEEL TROLLY/TRANSPORTER MODEL AM-MT-320M-WT ENGINE AM-170FP POWER 7HP/212CC NO. OF GEARS 3FORWARD, 1 REVERSE LOADING CAPACITY UPTO 350KG...
  • Page 3 Operation Instructions Warnings Forbid to operate, maintain and check the machine before read and mater the instructions Please safe-keep the instructions in order to operate, maintain and check the machine in time. About the instructions In order that you can operate our machine more safe, the instructions contains method for operating ,maintain and checking.Correctly operating method is on basis of reading and grasping.
  • Page 4 1. Safety affairs Safety driving, safety operating General safety precautions must comply with this record of driving, operation. Driving operation must be in accordance with the provisions of the articles of association of security matters, always remember to safe driving, safety operation. 1.1 Before driving instructions The right to wear safety clothing, and wear the safety guard Do not wear the leisure clothes like vests, shorts and sandals when operating.

  • Page 5: Parking Instructions

    Loading cautions forbid over loading Forbid to load over the max capacityfor this machine correct to load the goods In order to avoid placing uneven,let the machine roll over,please place them even and fasten with rope,moreover,should avoid the height to ensure the sight view cautions for quanyity restrictions When crossing the wood bridge,please make sure the total quantity of machine,goods and operator lower than max bearing quantity.And cross within limited...
  • Page 6 Ignition method warnings  Start the engine at ventilation area to avoid get poisoned  start the engine after confirm safety background  Make sure the clutch at the stop position before start the engine to avoid the machine running to cause any accidents cautions At winter or dry and cold environment, please warm up before driving, if not ,will reduce the service for the machine...

  • Page 7: Driving Method

    Driving method Make sure the safety affairs around the machine Make sure the clutch at the stop position Turn the gear lever and sub-gear lever to the neutral position suggestions About the walking speed for each gear lever, please refer the technical data.Turn the clutch forward to walking side slightly if gear lever can not move, then you can turn it again Turn the accelerating lever forward to HIGH position, can speed up the output rotary speed. turn the clutch to start position to start the machine Turning left, operate the left clutch handle Turning right, operate the right clutch handle...
  • Page 8 MACHINE WHOLE PARTS-A SL NO PART NO DESCIPTION AM-MT-320M-WT-TA01 Container comp Handle bar compo- AM-MT-320M-WT-TA02 nents AM-MT-320M-WT-TA03 Chassis comp AM-MT-320M-WT-TA04 Wheels assy...
  • Page 9 HANDLE BAR COMPONENTS - B...
  • Page 10 SL NO PART NO DESCIPTION AM-MT-320M-WT-TB01 AM-MT-320M-WT-TB02 Clutch handle AM-MT-320M-WT-TB03 Φ25 grip AM-MT-320M-WT-TB04 welding assembly for left lever AM-MT-320M-WT-TB05 Bolt AM-MT-320M-WT-TB06 Turning cable AM-MT-320M-WT-TB07 line-card AM-MT-320M-WT-TB08 connecting panel AM-MT-320M-WT-TB09 Throttle cable AM-MT-320M-WT-TB10 welding assembly for right lever AM-MT-320M-WT-TB11 shut down switch AM-MT-320M-WT-TB12 welding assembly AM-MT-320M-WT-TB13 welding assembly...
  • Page 11 CHASSIS COMP 1 - C...
  • Page 12 SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION AM-MT-320M-WT-TC01 Oil seal AM-MT-320M-WT-TC17 Three-speed driven gear AM-MT-320M-WT-TC02 Circlips for holes AM-MT-320M-WT-TC18 Three-speed driving gear AM-MT-320M-WT-TC03 Deep groove ball bearings AM-MT-320M-WT-TC19 III axis AM-MT-320M-WT-TC04 Support seat weldment AM-MT-320M-WT-TC20 Second gear driven gear AM-MT-320M-WT-TC05 Hexagon flange bolt AM-MT-320M-WT-TC21...
  • Page 13 SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION AM-MT-320M-WT-TC33 Oil seal AM-MT-320M-WT-TC49 II shaft gasket Steering separation arm as- AM-MT-320M-WT-TC34 AM-MT-320M-WT-TC50 1R block slip gear sembly Elastic cylindrical pin rolled AM-MT-320M-WT-TC35 AM-MT-320M-WT-TC51 Second and third gear slip gear standard type AM-MT-320M-WT-TC36 Deep groove ball bearing AM-MT-320M-WT-TC52 Circlip for shaft AM-MT-320M-WT-TC37 IV shaft gasket AM-MT-320M-WT-TC53 I axis Auxiliary transmission driven...
  • Page 14 SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION AM-MT-320M-WT-TC65 Lower fork shaft AM-MT-320M-WT-TC78 Vent plug AM-MT-320M-WT-TC66 Upper fork shaft AM-MT-320M-WT-TC79 Shift lever AM-MT-320M-WT-TC67 Circlip for shaft AM-MT-320M-WT-TC80 Gear lever set AM-MT-320M-WT-TC68 Reverse gear fork AM-MT-320M-WT-TC81 Hexagon flange bolt AM-MT-320M-WT-TC69 Lever limit plate AM-MT-320M-WT-TC82 Oil seal AM-MT-320M-WT-TC70 Type 1 hexagon nut...
  • Page 15 CHASSIS ASSY - 2 - D...
  • Page 16 SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION AM-MT-320M-WT-TD 01 Wire retaining ring for shaft AM-MT-320M-WT-TD 02 Drive sprocket AM-MT-320M-WT-TD 03 AM-MT-320M-WT-TD 04 Oil seal AM-MT-320M-WT-TD 05 Brake box AM-MT-320M-WT-TD 06 Hexagon flange bolt small series AM-MT-320M-WT-TD 07...
  • Page 17 CHASSIS ASSY (3) -E...
  • Page 18 SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION AM-MT-320M-WT-TE01 Hexagon flange bolt small series AM-MT-320M-WT-TE10 Extra large washer C grade AM-MT-320M-WT-TE02 Wire retaining ring for shaft AM-MT-320M-WT-TE11 Big pulley AM-MT-320M-WT-TE03 Oil seal AM-MT-320M-WT-TE12 AM-MT-320M-WT-TE04 Circlip for hole AM-MT-320M-WT-TE13 Output shaft pressure plate AM-MT-320M-WT-TE05 Deep groove ball bearing AM-MT-320M-WT-TE14 Flat washer A grade...
  • Page 19 SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION Hexagon flange bolt small AM-MT-320M-WT-TE19 AM-MT-320M-WT-TE29 Underframe assembly series AM-MT-320M-WT-TE20 Tension pulley comp AM-MT-320M-WT-TE30 Right bracket AM-MT-320M-WT-TE21 Bushing AM-MT-320M-WT-TE31 Hexagon flange bolt small series Hexagon flange bolt small AM-MT-320M-WT-TE22 AM-MT-320M-WT-TE32 Type 1 hex nut series AM-MT-320M-WT-TE23 AM-MT-320M-WT-TE33 Hexagon head bolt AM-MT-320M-WT-TE24 AM-MT-320M-WT-TE34 Large Washer A...
  • Page 20 CHASSIS ASSY (4) - F...
  • Page 21 SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION AM-MT-320M-WT-TF01 Hexagon head bolt AM-MT-320M-WT-TF10 Chain AM-MT-320M-WT-TF02 Oil seal AM-MT-320M-WT-TF11 Flat washer A grade AM-MT-320M-WT-TF03 Half shaft AM-MT-320M-WT-TF12 Type 1 hexagon lock nut AM-MT-320M-WT-TF04 AM-MT-320M-WT-TF13 Tension block AM-MT-320M-WT-TF05 Tapered roller bearing AM-MT-320M-WT-TF14 Oil plug AM-MT-320M-WT-TF06 Bearing seat...
  • Page 22 CHASSIS ASSY (5) - G...
  • Page 23 SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION AM-MT-320M-WT-TG01 Hexagon flange boltse AM-MT-320M-WT-TG10 AM-MT-320M-WT-TG02 Hexagon flange bolt small series AM-MT-320M-WT-TG11 Bumper AM-MT-320M-WT-TG03 Lower belt guard AM-MT-320M-WT-TG12 Hexagon flange bolt small series AM-MT-320M-WT-TG04 Upper belt guard AM-MT-320M-WT-TG13 Cover plate AM-MT-320M-WT-TG05 Hexagon Thin Nut AM-MT-320M-WT-TG14 Type 2 hexagon flange nut AM-MT-320M-WT-TG06 Star handle AM-MT-320M-WT-TG07...
  • Page 24 CHASSIS ASSY (6) - H...
  • Page 25 SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION Hexagon flange bolt small AM-MT-320M-WT-TH01 AM-MT-320M-WT-TH13 Standard spring washer series AM-MT-320M-WT-TH02 Rear cover (right) AM-MT-320M-WT-TH14 Extra Large Washer Class C Hexagon flange bolt small AM-MT-320M-WT-TH03 Rear cover (left) AM-MT-320M-WT-TH15 series Hexagon flange bolt small AM-MT-320M-WT-TH04 Flat washer A grade AM-MT-320M-WT-TH16 series AM-MT-320M-WT-TH05 Hook screw AM-MT-320M-WT-TH17 Outer spokes/holes/4.00-8...
  • Page 26 CARGO COMPARTMENTS ASSY (1) -J...
  • Page 27 SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION AM-MT-320M-WT-TJ01 Hexagon flange bolt small series AM-MT-320M-WT-TJ02 Cross recessed pan head screws AM-MT-320M-WT-TJ03 Cushion AM-MT-320M-WT-TJ04 Cargo compartment lock plate AM-MT-320M-WT-TJ05 Hex head bolt AM-MT-320M-WT-TJ06 Hexagon flange bolt AM-MT-320M-WT-TJ07 Cover AM-MT-320M-WT-TJ08 Flat washer A grade AM-MT-320M-WT-TJ09 non-metallic insert hex lock nuts...
  • Page 28 CARGO COMPARTMENTS ASSY (2) - K...
  • Page 29 SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION AM-MT-320M-WT-TK01 Cargo AM-MT-320M-WT-TK11 Hexagon flange bolt small series AM-MT-320M-WT-TK02 Flat washer A grade AM-MT-320M-WT-TK12 Cargo lock hook cable assembly AM-MT-320M-WT-TK03 Split pin AM-MT-320M-WT-TK13 Cargo handle weldment AM-MT-320M-WT-TK04 AM-MT-320M-WT-TK14 Clutch handle Lock hook return tension AM-MT-320M-WT-TK05 AM-MT-320M-WT-TK15 Shock absorption grip spring AM-MT-320M-WT-TK06 Type 1 hexagon lock nut AM-MT-320M-WT-TK07 Cargo compartment lock hook...

  • Page 30: Warranty Card

    WARRANTY CARD CUSTOMER COPY DEALERS SIGN DEALERS OFFICIAL SEAL DATE DATE OF DELIVERY PURCHASERS NAME & ADDRESS CUSTOMER SIGN INVOICE/DN NO. PRODUCT SERIAL NO. PRODUCT NAME I/Will accept the terms and conditions of warranty as in the warranty card DEALERS COPY DEALERS SIGN DEALERS OFFICIAL SEAL DATE...
  • Page 31 1.LIMITED WARRANTY PERIOD : For a period of six months from the date of Sale / delivery of the product which ever is earlier. 2. LIMITED WARRANTY OBLIGATION : Replacement of defective part(s) by authorized dealer are free of charges. If found defective by reasons of defective material / poor workmanship, parts will be replaced and there will be no value re-imbursement. 3. TERMS & CONDlTlONS : a. Claims under warranty will be accepted on submission of Warranty Card duly filled and stamped by authorized dealer together with the original purchase document.
  • Page 32 1st service coupon ISO 9001 : 2015 CERTIFIED COMPANY FREE SERVICE COUPON (30DAYS/30HRS. WHICHEVER IS EARLIER SERIAL NUMBER MODEL SERVICE NO. PURCHASE BILL NO. DATE PDI DATE OPERATIONS DEALERS OFFICE SEAL 1. Check and test the fuel mixture 2. check and clean the air filter 3.Check , clean and adjust the spark plug 4.
  • Page 33 DONTS attempting to use the equipments. Always read the instruction manual supplied along with the equipments and understand the correct installation and operating procedures before trousers and jackets while operating potentially dangerous machines 2. It is important to use the personal protection equipments such as head helmet with visor, ear defenders, goggles, safety gloves, cut resistant shoes, 3.
  • Page 34 NO. 1 CHOICE OF FARMERS SINCE 1999 RATNAGIRI IMPEX PVT., LTD., Annapurna House, #1 / 1G, 7th Cross, New Guddadahalli Mysore Road, Bangalore - 560 026 Missed Call : 7393 938 938 Email: ask@agrimart.in...
