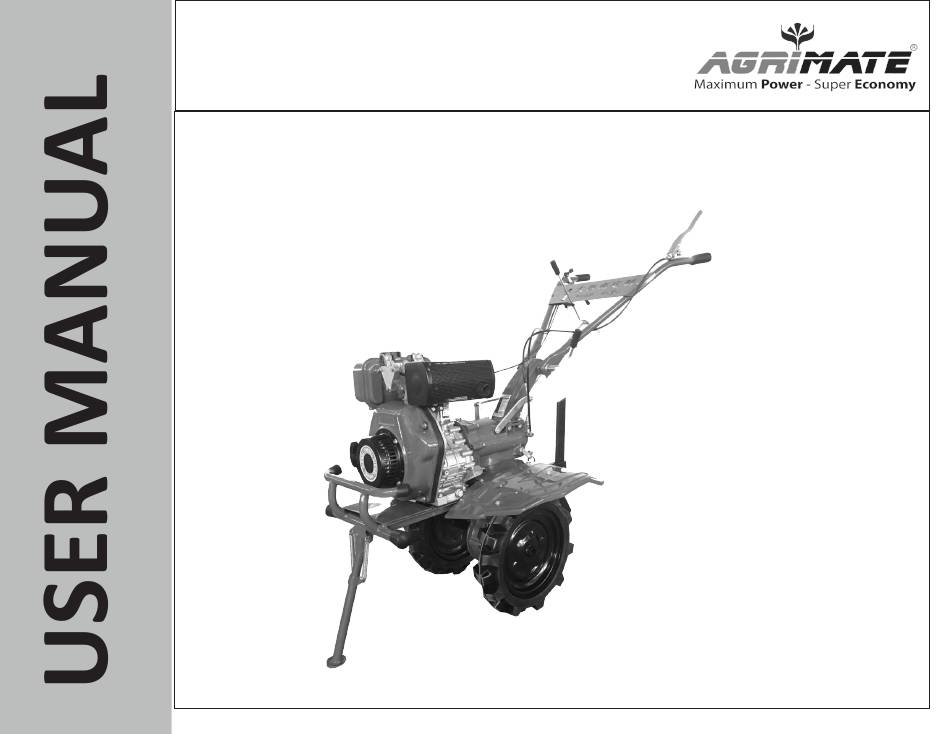

INTERCULTIVATOR/POWER WEEDER
AM-RTD-5D-CHAMPION NEW
MANUAL START
ENGINE PART DIAGRAM

Advertisement

loading
Need help?

Need help?

Do you have a question about the AM-RTD-5D-CHAMPION NEW and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Agrimate AM-RTD-5D-CHAMPION NEW

Summary of Contents for Agrimate AM-RTD-5D-CHAMPION NEW

  • Page 1 INTERCULTIVATOR/POWER WEEDER AM-RTD-5D-CHAMPION NEW MANUAL START ENGINE PART DIAGRAM...
  • Page 2 INTRODUCTION Please persue the contents in the insttuctions manual prio to us this machine, correctly carried out installation and debugging, as well as used it strictly cording to the working specifications in the instruction manual. The user should be familiar with the safety notices, machine perfotmance and maintaonance, etc.

  • Page 3: Technical Specifications

    TECHNICAL SPECIFICATIONS Model AM-RTD-5D CHAMPION NEW Engine AM-173FD Starting MANUAL Displacement 247CC Fuel Tank Capacity 2.5LTR Driving Model GEAR TRANSMISSION Oil Capacity in Gear box 1.8LTR Gears 2 FORWARD,1 REVERSE Tilling Width 600-1000MM Tilling Depth ≥150MM Net Weight...
  • Page 4 Cylinder Block Assy - A...
  • Page 5 SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION AM-178FDM-A01 Drain Plug Screw AM-178FDM-A17 Gasket AM-178FDM-A02 Washer unit of Drain plug AM-178FDM-A18 AM-178FDM-A03 Oil seal AM-178FDM-A19 Needle Bearing AM-178FDM-A04 Cylinder Block AM-178FDM-A20 Thrust Plate AM-178FDM-A05 Needle Bearing AM-178FDM-A21 Bolt AM-178FDM-A06 O- Ring AM-178FDM-A22...
  • Page 6 SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION AM-178FDM-A33 Ball Bearing AM-178FDM-A34 Main Bearing AM-178FDM-A35 Crankcase Cover AM-178FDM-A36 Oil Seal AM-178FDM-A37 Bolt AM-178FDM-A38 Hexagon Internal Scew Plug AM-178FDM-A39 Bolt AM-178FDM-A40 Plunger AM-178FDM-A41...
  • Page 7 Cylinder Head Assy - B...
  • Page 8 SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION AM-178FDM-B01 Intake Pipe Shim AM-178FDM-B17 Valve clearance adjusting screw AM-178FDM-B02 Cylinder Head AM-178FDM-B18 Valve clearance adjustment locking nut AM-178FDM-B03 Intake Valve AM-178FDM-B19 Exhaust valve Rocker Arm AM-178FDM-B04 Exhaust Valve AM-178FDM-B20 Set Bolt of Rocker arm seat AM-178FDM-B05 Inlet Valve Seat...
  • Page 9 Cylinder Head Cover Assy - C SL NO PART NO DESCRIPTION AM-178FDM-C01 Steel Ball AM-178FDM-C02 Rolling Pin AM-178FDM-C03 Cylinder Head Cover AM-178FDM-C04 Breather seat AM-178FDM-C05 O- Ring AM-178FDM-C06 Cylinder Head Cover Assy AM-178FDM-C07 Plunger AM-178FDM-C08 Decompressing Spring AM-178FDM-C09 Decompression Shaft Assy AM-178FDM-C10 Bolt AM-178FDM-C11...
  • Page 10 Piston & Connecting Rod Assy - D SL NO PART NO DESCRIPTION AM-178FDM-D01 First Air Ring AM-178FDM-D02 Second Air Ring AM-178FDM-D03 Oil Ring assy AM-178FDM-D04 Piston AM-178FDM-D05 Piston Pin AM-178FDM-D06 Retainer Ring AM-178FDM-D07 Connceting Rod Bolt AM-178FDM-D08 Connecting Rod Block AM-178FDM-D09 Connecting Rod Shaft Blocking AM-178FDM-D10...
  • Page 11 Crank Shaft & Fly Wheel Assy- E...
  • Page 12 SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION AM-178FDM-E01 Ball Bearing AM-178FDM-E17 Starting Ratchet Reel AM-178FDM-E02 Balance Shaft AM-178FDM-E18 Bolt AM-178FDM-E03 AM-178FDM-E04 Drive Gear of Balance Shaft AM-178FDM-E05 Output Enf set Bolt AM-178FDM-E06 Gasket AM-178FDM-E07 Output End Gasket AM-178FDM-E08 Crankshaft Timing Gear AM-178FDM-E09...
  • Page 13 Camshaft Assy - F SL NO PART NO DESCRIPTION AM-178FDM-F01 Valve Push Rod Assy AM-178FDM-F02 Valve Tappet AM-178FDM-F03 Camshaft Timing Gear AM-178FDM-F04 AM-178FDM-F05 Camshat...
  • Page 14 Air Intake System - G...
  • Page 15 SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION AM-178FDM-G01 Inlet Pipe AM-178FDM-G02 Tightening Bolt of Air Cleaner AM-178FDM-G03 Air Cleaner Washer AM-178FDM-G04 Air Cleaner Bottom base Assy AM-178FDM-G05 AM-178FDM-G06 Shockproot sheet Gasket AM-178FDM-G07 Air Cleaner Elelment Assy AM-178FDM-G08 Shock proof Unit AM-178FDM-G09 Shock proof sheet Gasket...
  • Page 16 Fuel Injection Valve Assy - H SL NO PART NO DESCRIPTION AM-178FDM-H01 Fule Injection Valve Block AM-178FDM-H02 Washer AM-178FDM-H03 Volt Adjustment Gasket AM-178FDM-H04 Mandril AM-178FDM-H05 Intermediate Block AM-178FDM-H06 Locating Pin AM-178FDM-H07 Nozzel AM-178FDM-H08 Nozzel orcing Nut...
  • Page 17 Muffler Assy - J SL NO PART NO DESCRIPTION AM-178FDM-J01 Mufffler Case weldment assy AM-178FDM-J02 Bolt AM-178FDM-J03 AM-178FDM-J04 Spring gasket AM-178FDM-J05 Gasket AM-178FDM-J06 Muffler weldment Gasket AM-178FDM-J07 Bolt...
  • Page 18 Lubricating System -K...
  • Page 19 SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION AM-178FDM-K01 Bolt AM-178FDM-K02 Lube oil Pump Cover AM-178FDM-K03 O Ring AM-178FDM-K04 Engine oil Pump Unit AM-178FDM-K05 AM-178FDM-K06 Drive Gear of Lube oil Pump AM-178FDM-K07 Flying weight AM-178FDM-K08 Flying weight pin AM-178FDM-K09 Lube oil cleaner cover AM-178FDM-K10...
  • Page 20 Fuel System -L...
  • Page 21 SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION AM-178FDM-L01 Bolt AM-178FDM-L17 Fuel Filetr Washer AM-178FDM-L02 Set Bolt of Fuel tank Upper Support AM-178FDM-L18 Element asssy AM-178FDM-L03 Gasket AM-178FDM-L19 Fuel tank Weldment assy AM-178FDM-L04 Fuel Tank Upper support AM-178FDM-L20 Fuel Tank cap AM-178FDM-L05 Cushion...
  • Page 22 Fuel Injection pipe Assy - M...
  • Page 23 SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION AM-178FDM-M01 Fuel Delivery Valve Forcing Holder AM-178FDM-M17 Spring AM-178FDM-M02 Fuel Delivery Valve Spring AM-178FDM-M18 Spring Holder AM-178FDM-M03 Fuel Delivery Valve Sheet Gasket AM-178FDM-M19 Tappet AM-178FDM-M04 Fuel Delivery Valve Core AM-178FDM-M05 Fuel Delivery Valve seat AM-178FDM-M06 Fuel Pipe weldment Assy...
  • Page 24 Governor & Controller Assy - N...
  • Page 25 SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION AM-178FDM-N01 Control handle AM-178FDM-N17 Governor Push reel AM-178FDM-N02 Return Spring II AM-178FDM-N18 Fork AM-178FDM-N03 Control Handle Support AM-178FDM-N04 Handle AM-178FDM-N05 Bolt AM-178FDM-N06 Bolt AM-178FDM-N07 AM-178FDM-N08 Pull Bolt AM-178FDM-N09 High Speed limit Screw AM-178FDM-N10 Return Spring I AM-178FDM-N11...
  • Page 26 Manual Starting Assy -P...
  • Page 27 SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION AM-178FDM-P01 Clip AM-178FDM-P02 Locking Clip AM-178FDM-P03 Friction Reel AM-178FDM-P04 Spiral Spring AM-178FDM-P05 Ratchet AM-178FDM-P06 Compression Spring AM-178FDM-P07 Spring Cover AM-178FDM-P08 Starter Reel AM-178FDM-P09 Spiral Spring AM-178FDM-P10 Starter Handle AM-178FDM-P11 Starter Rope AM-178FDM-P12 Outer Case Assy AM-178FDM-P13...
  • Page 28 Starting Motor Assy-Q SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION AM-178FDM-Q01 Starting motor Assy AM-178FDM-Q1.1 Engine motor hole cover board AM-178FDM-Q02 Bolt AM-178FDM-Q2.1 AM-178FDM-Q03 Spring Gasket AM-178FDM-Q04 Gasket...
  • Page 29 Flywheel Alternator Assy - R...
  • Page 30 SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION AM-178FDM-R01 Bolt AM-178FDM-R02 Long Gasket AM-178FDM-R03 Switch Board of Electri starter AM-178FDM-R04 Starting Key Assy AM-178FDM-R05 Rotator Assy AM-178FDM-R06 Screw AM-178FDM-R07 Bolt AM-178FDM-R08 Gasket AM-178FDM-R09 Startor Assy AM-178FDM-R10 Retainer AM-178FDM-R11 Screw AM-178FDM-R12 Support of Governor...
  • Page 31 Fan Cover Assy - S SL NO PART NO DESCRIPTION AM-178FDM-S01 Cushion AM-178FDM-S02 fan Cover Weldment Assy AM-178FDM-S03 Cushion Sheath AM-178FDM-S04 Sheath AM-178FDM-S05 Gasket AM-178FDM-S06 Bolt...

  • Page 32: Warranty Card

    WARRANTY CARD CUSTOMER COPY DEALERS SIGN DEALERS OFFICIAL SEAL DATE DATE OF DELIVERY PURCHASERS NAME & ADDRESS CUSTOMER SIGN INVOICE/DN NO. PRODUCT SERIAL NO. PRODUCT NAME I/Will accept the terms and conditions of warranty as in the warranty card DEALERS COPY DEALERS SIGN DEALERS OFFICIAL SEAL DATE...
  • Page 33 1.LIMITED WARRANTY PERIOD : For a period of six months from the date of Sale / delivery of the product which ever is earlier. 2. LIMITED WARRANTY OBLIGATION : Replacement of defective part(s) by authorized dealer are free of charges. If found defective by reasons of defective material / poor workmanship, parts will be replaced and there will be no value re-imbursement. 3. TERMS & CONDlTlONS : a. Claims under warranty will be accepted on submission of Warranty Card duly filled and stamped by authorized dealer together with the original purchase document.
  • Page 34 1st service coupon ISO 9001 : 2015 CERTIFIED COMPANY FREE SERVICE COUPON (30DAYS/30HRS. WHICHEVER IS EARLIER SERIAL NUMBER MODEL SERVICE NO. PURCHASE BILL NO. DATE PDI DATE OPERATIONS DEALERS OFFICE SEAL 1. Check and test the fuel mixture 2. check and clean the air filter 3.Check , clean and adjust the spark plug 4.
  • Page 35 DONTS Always read the instruction manual supplied along with the equipments and understand the correct installation and operating procedures before attempting to use the equipments. 2. It is important to use the personal protection equipments such as head helmet with visor, ear defenders, goggles, safety gloves, cut resistant shoes, trousers and jackets while operating potentially dangerous machines 3.
  • Page 36 Agrimate Army For Pest Control ANY WHERE - ANY TIME - ANY CROP RATNAGIRI IMPEX PVT., LTD., Annapurna House, #1 / 1G, 7th Cross, New Guddadahalli Mysore Road, Bangalore - 560 026 Missed Call : 7393 938 938 Email: ask@agrimart.in...
