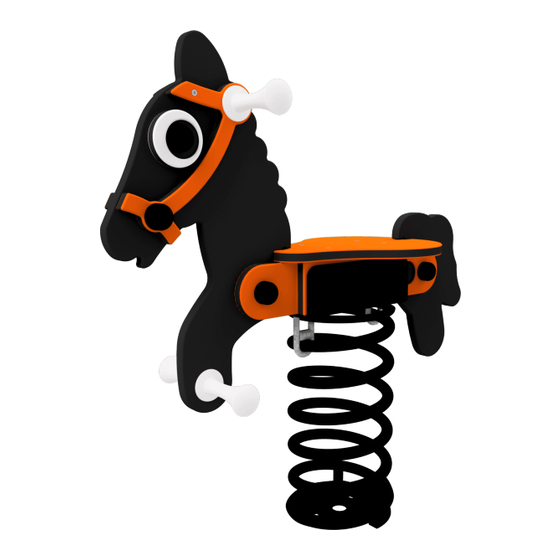

Springer Horse "Black Beauty"
BBIE705

Advertisement

loading
Need help?

Need help?

Do you have a question about the Springer Horse "Black Beauty" and is the answer not in the manual?

Questions and answers

Related Manuals for BOERPLAY Springer Horse "Black Beauty"

Summary of Contents for BOERPLAY Springer Horse "Black Beauty"

  • Page 1 Springer Horse "Black Beauty" BBIE705...

  • Page 2: Installation Instructions

    Si el tierra no ayuda a la estabilidad del equipo que se está colocando, vierta 50L de hormigón por poste. FR - Important ! Si le sol ne contribue pas à la stabilité de l’équipement à placer, versez 50L de béton par poteau. BBI 705 © Copyright BOERplay 20-5-2022 Revision: A...
  • Page 3 Hoofdafmetingen Hauptabmessungen Dimensiones principales Dimensions principales 0,81 m 0,84 m 0,52 m 0,40 m 0,26 m 0,00 m BBI 705 © Copyright BOERplay 20-5-2022 Revision: A...
  • Page 4 Zona libre de obstáculos Zone libre d’obstacles 3,50 m 1,40 m Impact area Opvangzone Ausprallbereich Zona de impacto Zone d‘impact Obstacle free zone Obstakelvrije zone Hindernissfreie raum Zona libre de obstáculos Zone libre d’obstacles BBI 705 © Copyright BOERplay 20-5-2022 Revision: A...
  • Page 5 Bodemplan Bodenplan Plan de superficie Plan de surface 1,75 m 1,75 m Ground level Maaiveld Bodennahe Nivel del suelo Niveau au sol BBI 705 © Copyright BOERplay 20-5-2022 Revision: A...

  • Page 6: Assembly Manual

    Montagereihenfolge Orden de esemblado Ordre de montage - assembly manual - module Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module MOD.BBI.705 MOD.BBI.700 MOD.BBI.700 MOD.BBI.705 BBI 705 © Copyright BOERplay 20-5-2022 Revision: A...
  • Page 7 Benodigde gereedschappen Benötigtes Werkzeug Herramientas requeridas Outils nécessaires TX-25 No. 17 (2x) No. 19 No. 17 No. 19 BBI 705 © Copyright BOERplay 20-5-2022 Revision: A...
  • Page 8 Montagevolgorde Montagereihenfolge Orden de esemblado Ordre de montage MOD.BBI.705 MOD.BBI.700 BOER PLAY xxx.xxx.xxx EN 1176 www.boerplay.com BBI 705 © Copyright BOERplay 20-5-2022 Revision: A...
  • Page 9 LOGBOOK Type indication Figura Play Article number BBIE705 Product Name Springer Horse "Black Beauty" Maximum fall height > 0,6 m Construction year 2023 Certificate 066748 Inspection body TUV Nederland QA BV Ekkersrijt 4401 5692 DL Son Manufacturer name Boer Speeltoestellen Hyacintstraat 2 - 4255 HX Nieuwendijk Phone: +31 (0)183 40 23 66 Fax: +31 (0)183 40 35 64...
  • Page 10 LOGBOOK Inspection and maintenance Date of Time of Name Name Parts to be inspection inspection executor of executor of Found defects replaced maintenance maintenance inspection maintenance Accidents Date Age of Measures taken Probable cause of injury Occurred injury accident victim after accident...

  • Page 11: Inspection And Maintenance Intervals

    Inspection and maintenance intervals months Nr. Inspection Maintenance between inspections Verify equipment's stability, junctions and Add missing parts, secure joints, apply missing parts. Inspect bolts, screws and nuts for missing fixing agent and replace absence, jams, corrosion and wear. corroded parts. Replace worn parts and/or remove non- Check suspension for wear.
  • Page 12 7. Remember that bad maintenance leads to unsafe conditions and notably faster impoverishment of the playground area. 8. Replacement parts can be ordered at the manufacturer with the OEM part numbers on the module drawing. Drawings can be found in the user guide. 9.
  • Page 14 - module Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module MOD BBI 700 © Copyright BOERplay 12-1-2022 Revision:...
  • Page 15 1 / 1 OME.MNP.152.905 SMD.VER.200.905 BSV.026.010.035 BSV.030.010.002 BSV.010.010.010 SME.MNP.149.372 BSV.010.010.010 BSV.026.010.035 BSV.030.010.002 OME.MNP.152.905 SMD.VER.200.905 SME.MNP.149.372 MOD BBI 700 © Copyright BOERplay 12-1-2022 Revision:...
  • Page 16 - module Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module MOD BBI 705 © Copyright BOERplay 18-5-2022 Revision: A...
  • Page 17 OPE.BBI.608.090 OPE.BBI.609.090 OPE.BBI.606.022 OPE.BBI.606.022 Detail A (2x) KST.DOP.010.060 BSR.021.010.080 BSR.030.010.002 KST.DON.010.060 KST.DON.010.060 BSR.010.010.010 BSR.021.010.080 BSR.030.010.002 KST.DON.010.060 BSR.030.010.002 KST.DOP.010.060 OPE.BBI.606.022 BSR.010.010.010 OPE.BBI.608.090 KST.DOP.010.060 OPE.BBI.609.090 MOD BBI 705 © Copyright BOERplay 18-5-2022 Revision: A...
  • Page 18 OPE.BBI.660.022 OPE.BBI.561.022 OPE.BBI.561.022 Detail B (4x) 35 mm BSR.053.005.035 Detail C (2x) KST.DOP.010.060 BSR.021.010.130 BSR.030.010.002 KST.DON.010.060 BSR.002.005.050 KST.DON.010.060 BSR.010.010.010 BSR.021.010.130 BSR.030.010.002 BSR.030.010.002 BSR.010.010.010 KST.DON.010.060 KST.DOP.010.060 KST.DOP.010.060 OPE.BBI.561.022 OPE.BBI.660.022 MOD BBI 705 © Copyright BOERplay 18-5-2022 Revision: A...
  • Page 19 Detail E (1x) KST.HVT.002.005 KST.HVT.003.005 BSR.030.010.002 BSR.021.010.240 BSR.010.010.010 BSR.030.010.002 KST.HVT.003.005 KST.HVT.002.005 Detail A (1x) KST.DOP.010.060 BSR.021.010.080 BSR.030.010.002 BSR.010.010.010 BSR.021.010.080 KST.DON.010.060 BSR.021.010.200 BSR.021.010.240 BSR.030.010.002 BSR.053.005.035 KST.DON.010.060 KST.DOP.010.060 KST.HVT.002.005 BSR.030.010.002 KST.HVT.003.005 BSR.010.010.010 OPE.BBI.610.022 OPE.BBI.611.022 KST.DOP.010.060 MOD BBI 705 © Copyright BOERplay 18-5-2022 Revision: A...
  • Page 20 Detail F (1x) KST.DOP.010.060 BSR.010.010.010 BSR.030.010.002 KST.DON.010.060 OPE.BBI.572.006 KST.DOP.010.060 BSR.023.010.070 OPE.BBI.572.006 KST.DON.010.060 BSR.030.010.002 BSR.010.010.010 BSR.023.010.070 BSR.030.010.002 KST.DON.010.060 KST.DOP.010.060 OPE.BBI.572.006 MOD BBI 705 © Copyright BOERplay 18-5-2022 Revision: A...
