BOERPLAY PSTE115.002 Manual

Multi-play equipment
Hide thumbs

Advertisement

Quick Links

Download this manual
Multi-play equipment
PSTE115.002

Advertisement

loading
Need help?

Need help?

Do you have a question about the PSTE115.002 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BOERPLAY PSTE115.002

Summary of Contents for BOERPLAY PSTE115.002

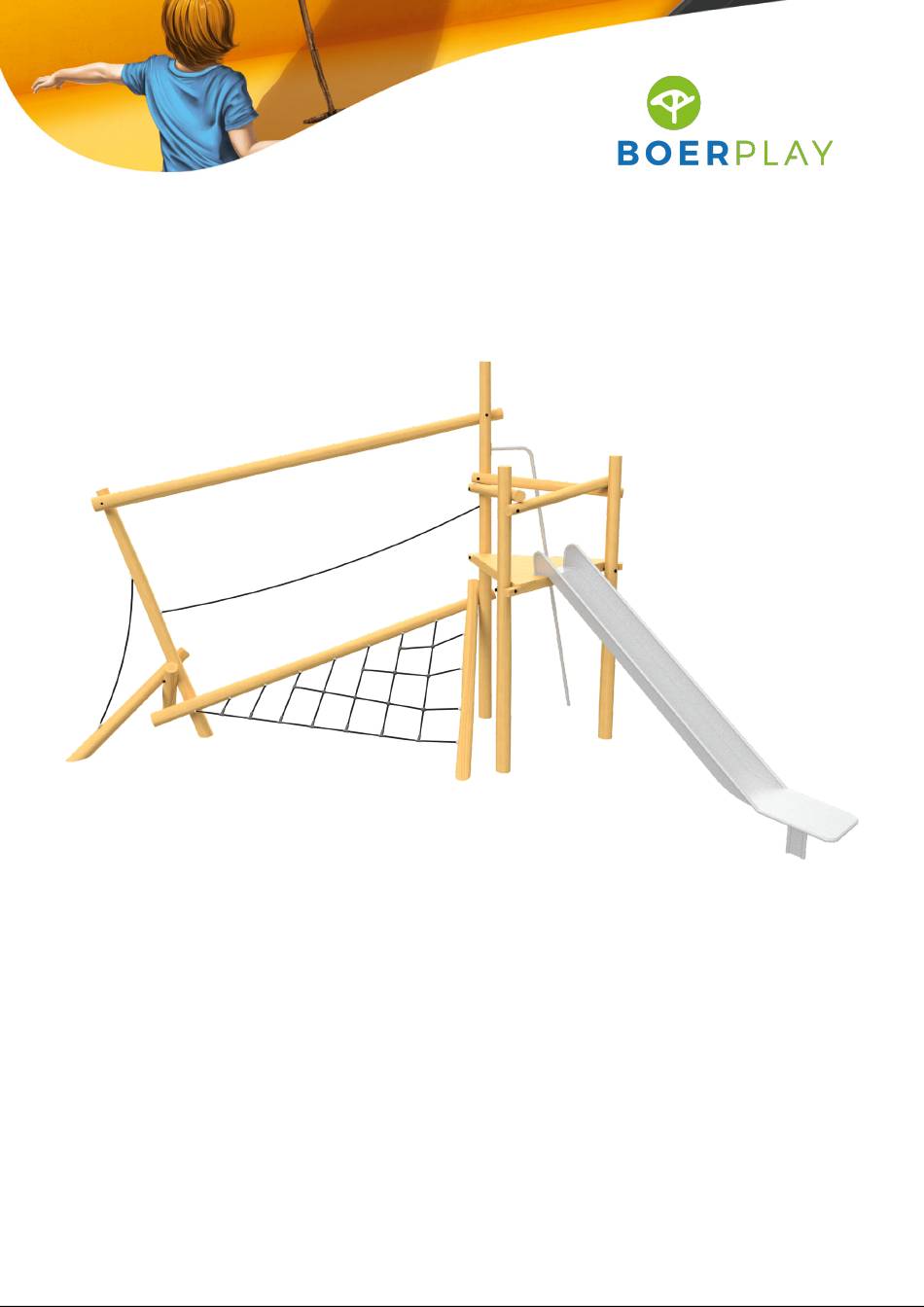

  • Page 1 Multi-play equipment PSTE115.002...

  • Page 2: Main Dimensions

    3,12 m 3,12 m 2,52 m 2,27 m 1,49 m 1,22 m 1,11 m 1,00 m 0,00 m 0,00 m 3,97 m 3,05 m 1,95 m 0,00 m < 0,35 m PST 115 002 © Copyright BOERplay 10-3-2023 Revision: D...
  • Page 3 Zona libre de obstáculos Zone libre d’obstacles 6,38 m Impact area Opvangzone Ausprallbereich Zona de impacto Zone d‘impact Obstacle free zone Obstakelvrije zone Hindernissfreie raum Zona libre de obstáculos Zone libre d’obstacles PST 115 002 © Copyright BOERplay 10-3-2023 Revision: D...
  • Page 4 Bodemplan Bodenplan Plan de superficie Plan de surface 5,91 m 5,05 m 4,61 m 4,04 m 2,69 m 0,39 m 0,08 m Grondmarkering Ground level marker 0,61 m 0,70 m PST 115 002 © Copyright BOERplay 10-3-2023 Revision: D...

  • Page 5: Order Of Assembly

    Bew. Rev. Benaming Opmerking Vloer 1,95 Grond frame 1,45 Staander 3,75 m Staander 4,7 m Railing Glijbaan 195 cm Module Robina Driehoek Opklimnet Adventure Play Aanbouwtouw Adventureplay Glijpaal 3,25m Adventure Play PST 115 002 © Copyright BOERplay 10-3-2023 Revision: D...
  • Page 6 Montagevolgorde Montagereihenfolge Orden de esemblado Ordre de montage < 0,80 m > 0,65 m PST 115 002 © Copyright BOERplay 10-3-2023 Revision: D...
  • Page 7 LOGBOOK Type indication Adventure Play Article number PSTE115.002 Product Name Multi-play equipment Maximum fall height 2,0 m Construction year 2024 Certificate 032709 Inspection body TUV Nederland QA BV Ekkersrijt 4401 5692 DL Son Manufacturer name Boer Speeltoestellen Hyacintstraat 2 - 4255 HX Nieuwendijk...
  • Page 8 LOGBOOK Inspection and maintenance Date of Time of Name Name Parts to be inspection inspection executor of executor of Found defects replaced maintenance maintenance inspection maintenance Accidents Date Age of Measures taken Probable cause of injury Occurred injury accident victim after accident...

  • Page 9: Inspection And Maintenance Intervals

    Inspection and maintenance intervals months Nr. Inspection Maintenance between inspections Verify equipment's stability, junctions and Add missing parts, secure joints, apply missing parts. Inspect bolts, screws and nuts for missing fixing agent and replace absence, jams, corrosion and wear. corroded parts. Replace worn parts and/or remove non- Check suspension for wear.
  • Page 10 7. Remember that bad maintenance leads to unsafe conditions and notably faster impoverishment of the playground area. 8. Replacement parts can be ordered at the manufacturer with the OEM part numbers on the module drawing. Drawings can be found in the user guide. 9.
  • Page 12 Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Draadeind+borgm.+ringen+dop M12, L= 240, RVS A2-70 Afstandsbus 30x30x14 Vloer 1,95 MAP 01 003 © Copyright BOERplay 16-2-2023 Revision:...
  • Page 13 Manual de ensamblado - módulo Manuel de montage - module Type Progr. Volgnr. Bew. Rev. Benaming Opmerking HOUTDRAADBOUT M10 X 80 Carrosseriering M10 x 30 - VZ 8.8 Standaard plank 120x20 Lengte = 1400 MAP 02 140 © Copyright BOERplay 18-7-2022 Revision:...
  • Page 14 - module Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module Type Progr. Bew. Rev. Benaming Volgnr. Opmerking Robinia 14-16 Zaaglengte 3,75 MAP 04 380 © Copyright BOERplay 18-7-2022 Revision:...
  • Page 15 - module Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module Type Progr. Bew. Rev. Benaming Volgnr. Opmerking Robinia 14-16 Zaaglengte 4,7 MAP 04 470 © Copyright BOERplay 19-8-2022 Revision:...
  • Page 16 Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Draadeind+borgm.+ringen+dop M12, L= 220, RVS A2-70 Paal 10-12 Lengte =1600 MAP 05 160 © Copyright BOERplay 11-8-2022 Revision:...
  • Page 17 3,18 m Let op: toestel bij voorkeur niet met de glijbaan op het zuiden plaatsen. Type Progr. Volgnr Bew. Rev. Benaming Opmerking Borgdopmoer M10 - RVS A2-70 Attention: it is advisable not to oriënt Slotbout M10 x 50 - RVS A2-70 playground equipment with the slide SLUITRING facing south...
  • Page 18 0,17 m Openingen altijd > 230 mm Openings always > 230 mm Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Draadeind+borgm.+ringen+dop M12, L= 240, RVS A2-70 5 x 70 - RVS A2-70 Schroef Assy Pin-Torx - VZ 8.8 Veiligheidsschroef Paal 14-16 Lengte =4000 Paal 14-16 Lengte =3200...
  • Page 19 Paal 14-16 Lengte =4400 Paal 14-16 Lengte =2700 Lengte =2000 Paal 14-16 Paal 14-16 Lengte =3600 Bus RVS schroefdraad touw d16 Hercules touw 16mm, zwart, 3,8m Touw 1,75m 16mm diameter MOD PST 022 004 © Copyright BOERplay 27-9-2022 Revision: B...
  • Page 20 A ( 1 : 5 ) Afstand van de glijstang naar: - vloer: tussen 350 en 500mm - railing: groter dan 250mm - overige toesteldelen: groter dan 500mm Distance from the fireman's pole to: - floor: between 350 and 500mm - railing: more than 250mm - other parts of the equipment: more than 500mm Type...
