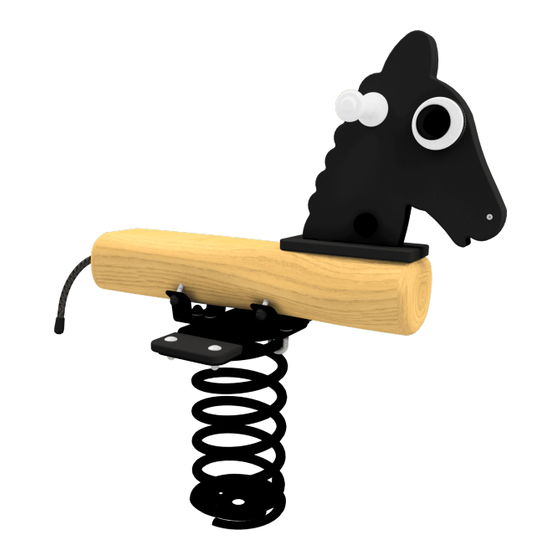

Springer Horse black
PSTE300.090

Advertisement

loading
Need help?

Need help?

Do you have a question about the Springer Horse black and is the answer not in the manual?

Questions and answers

Related Manuals for BOERPLAY Springer Horse black

Summary of Contents for BOERPLAY Springer Horse black

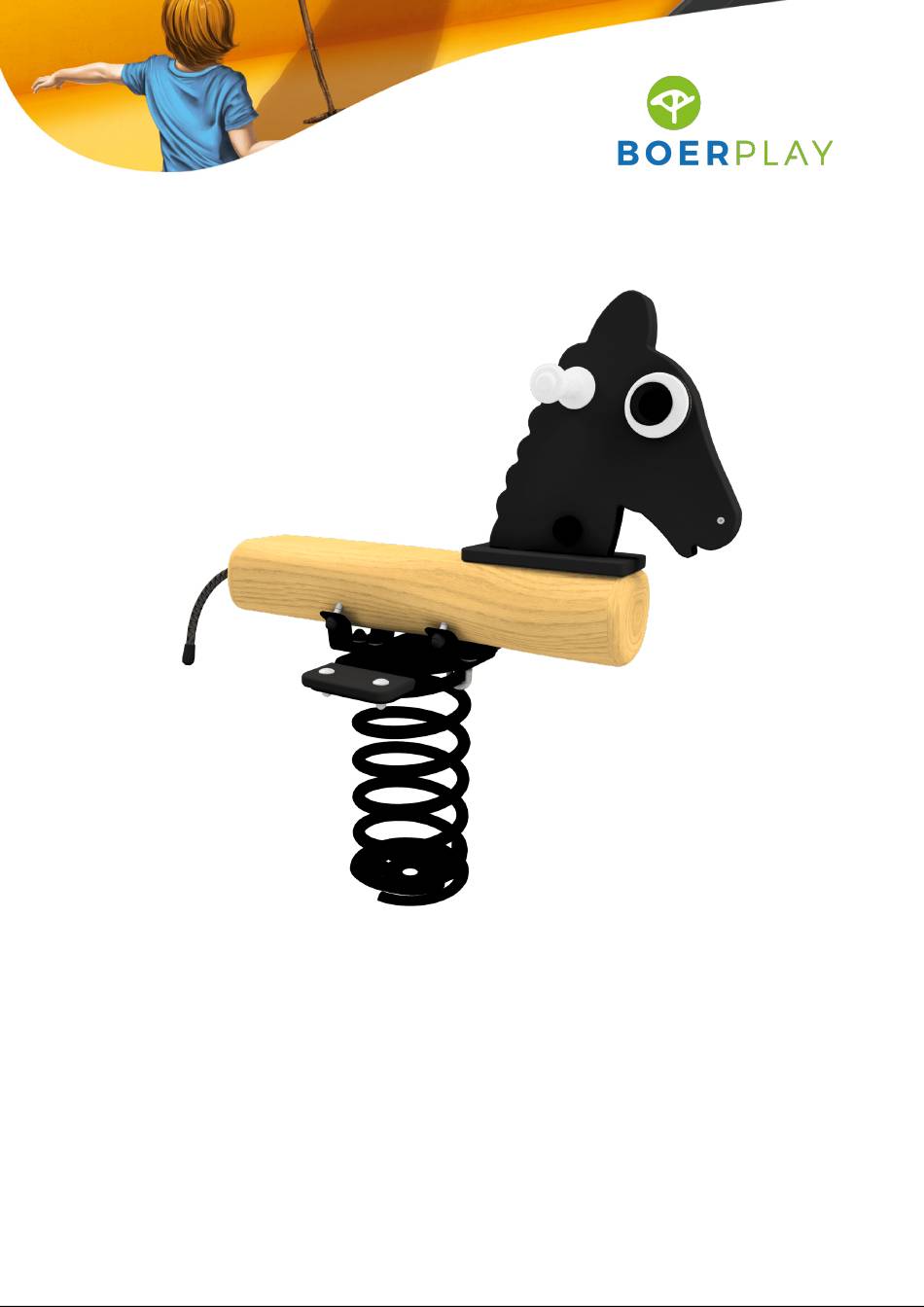

  • Page 1 Springer Horse black PSTE300.090...

  • Page 2: Installation Instructions

    Si el tierra no ayuda a la estabilidad del equipo que se está colocando, vierta 50L de hormigón por poste. FR - Important ! Si le sol ne contribue pas à la stabilité de l’équipement à placer, versez 50L de béton par poteau. © Copyright BOERplay 28-2-2023 Revision: PST 300 090...
  • Page 3 Hoofdafmetingen Hauptabmessungen Dimensiones principales Dimensions principales 0,93 m 0,57 m 0,00 m © Copyright BOERplay 28-2-2023 Revision: PST 300 090...
  • Page 4 Zona libre de obstáculos Zone libre d’obstacles 2,50 m 1,05 m Impact area Opvangzone Ausprallbereich Zona de impacto Zone d‘impact Obstacle free zone Obstakelvrije zone Hindernissfreie raum Zona libre de obstáculos Zone libre d’obstacles © Copyright BOERplay 28-2-2023 Revision: PST 300 090...
  • Page 5 Bodemplan Bodenplan Plan de superficie Plan de surface 1,55 m 1,55 m 0,48 m Ground level Maaiveld Bodennahe Nivel del suelo Niveau au sol © Copyright BOERplay 28-2-2023 Revision: PST 300 090...

  • Page 6: Assembly Manual

    Montagereihenfolge Orden de esemblado Ordre de montage - assembly manual - module Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module MOD.PST.519.090 MOD.PST.006.131 MOD.PST.006.131 MOD.PST.519.x © Copyright BOERplay 28-2-2023 Revision: PST 300 090...
  • Page 7 Benodigde gereedschappen Benötigtes Werkzeug Herramientas requeridas Outils nécessaires TX-25 No. 10 (2x) TX-40 No. 13 (2x) No. 17 (2x) TX-25 No. 10 No. 13 No. 17 Ø3 mm Ø5 mm Ø11 mm Ø12 mm © Copyright BOERplay Revision:...
  • Page 8 Montagevolgorde Montagereihenfolge Orden de esemblado Ordre de montage MOD.PST.519.090 MOD.PST.006.131 BOER PLAY xxx.xxx.xxx EN 1176 www.boerplay.com © Copyright BOERplay 28-2-2023 Revision: PST 300 090...
  • Page 9 LOGBOOK Type indication Adventure Play Article number PSTE300.090 Product Name Springer Horse black Maximum fall height > 0,6 m Construction year 2023 Certificate 069670 Inspection body TUV Nederland QA BV Ekkersrijt 4401 5692 DL Son Manufacturer name Boer Speeltoestellen Hyacintstraat 2 - 4255 HX Nieuwendijk...
  • Page 10 LOGBOOK Inspection and maintenance Date of Time of Name Name Parts to be inspection inspection executor of executor of Found defects replaced maintenance maintenance inspection maintenance Accidents Date Age of Measures taken Probable cause of injury Occurred injury accident victim after accident...

  • Page 11: Inspection And Maintenance Intervals

    Inspection and maintenance intervals months Nr. Inspection Maintenance between inspections Verify equipment's stability, junctions and Add missing parts, secure joints, apply missing parts. Inspect bolts, screws and nuts for missing fixing agent and replace absence, jams, corrosion and wear. corroded parts. Replace worn parts and/or remove non- Check suspension for wear.
  • Page 12 7. Remember that bad maintenance leads to unsafe conditions and notably faster impoverishment of the playground area. 8. Replacement parts can be ordered at the manufacturer with the OEM part numbers on the module drawing. Drawings can be found in the user guide. 9.
  • Page 14 - module Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module MOD PST 519 090 © Copyright BOERplay 8-12-2022 Revision: A...
  • Page 15 SME.BBI.047.372 BSR.022.010.080 80 mm BSR.030.010.002 OHO.PST.835 BSR.022.010.080 BSR.030.010.002 OHO.PST.835 SME.BBI.047.372 MOD PST 519 090 © Copyright BOERplay 8-12-2022 Revision: A...
  • Page 16 KST.HVT.001.005 BSR.021.010.220 220 mm BSR.030.010.002 BSR.010.010.010 KST.HVT.001.005 Detail B (1x) KST.DOP.010.060 BSR.030.010.002 KST.DON.010.060 BSR.010.010.010 BSR.021.010.060 BSR.021.010.220 BSR.021.010.060 BSR.030.010.002 KST.DON.010.060 KST.DON.010.060 BSR.030.010.002 KST.DOP.010.060 60 mm BSR.010.010.010 KST.HVT.001.005 KST.DOP.010.060 OPE.BBI.552.xxx OPE.BBI.553.xxx OPE.PST.117.xxx MOD PST 519 090 © Copyright BOERplay 8-12-2022 Revision: A...
  • Page 17 BSR.010.010.010 KST.DOP.010.060 Detail C (1x) BSR.030.010.002 KST.DON.010.060 OPE.BBI.572.006 KST.DON.010.060 BSR.030.010.002 OPE.BBI.572.006 KST.DOP.010.060 BSR.021.010.090 Detail D (2x) 90 mm BSR.053.005.035 BSR.010.010.010 BSR.021.010.090 35 mm BSR.030.010.002 BSR.053.005.035 KST.DON.010.060 KST.DOP.010.060 OPE.BBI.572.006 MOD PST 519 090 © Copyright BOERplay 8-12-2022 Revision: A...
  • Page 18 SNT.PST.030.090 Detail E (1x) BSR.002.006.120 120 mm BSR.002.006.120 SNT.PST.030.xxx MOD PST 519 090 © Copyright BOERplay 8-12-2022 Revision: A...
  • Page 19 270 mm 200 mm MOD PST 519 090 © Copyright BOERplay 8-12-2022 Revision: A...
  • Page 20 M10 - VZ 8.8 HOUTDRAADBOUT M10 X 80 SLOTBOUT M10x35 SLUITRING M10 VZ Voetsteun Veerelement M10 zwart Afdekdop zeskantbout Veerplaat met voetsteun "stier" Veer 40 cm, Ø 20 cm Schotel en U-bouten Veerwippen Grondanker MOD PST 006 131 © Copyright BOERplay 10-8-2021 Revision:...
