Summary of Contents for Omcan CE-CN-0004-N

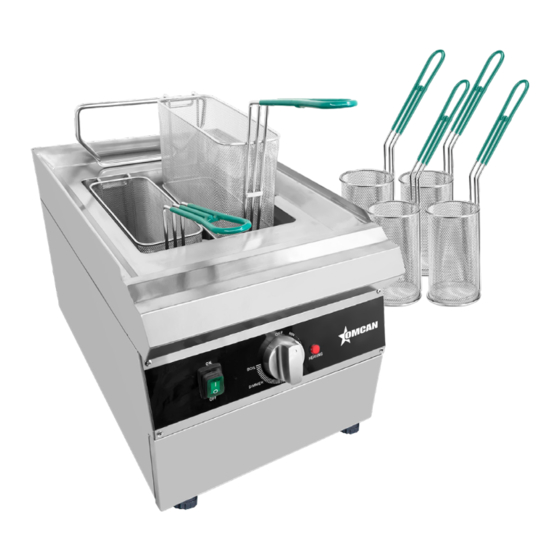

- Page 1 Pasta Cooker Model CE-CN-0004-N Item 47503 Instruction Manual Revised - 11/01/2023 Toll Free: 1-800-465-0234 Fax: 905-607-0234 Email: service@omcan.com www.omcan.com...
-
Page 2: Table Of Contents
Table of Contents Model CE-CN-0004-N Section Page General Information --------------------------------------------------------------------------- 3 - 4 Safety and Warranty --------------------------------------------------------------------------- 4 - 6 Technical Specifications -------------------------------------------------------------------------- 7 Installation --------------------------------------------------------------------------------------- 7 - 8 Operation ----------------------------------------------------------------------------------------- 8 - 9 Maintenance --------------------------------------------------------------------------------- 10 - 11 Troubleshooting... -
Page 3: General Information
If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents. -
Page 4: Safety And Warranty
Si el paquete ha sufrido un manejo de poco cuidado, golpes o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. - Page 5 Safety and Warranty 3. WARNING: during and after operation, the pasta cooker reaches/has reached very high temperatures. The water, water pot, and all surfaces will be EXTREMELY HOT. Take extreme caution when operating. Let water and unit cool before handling. 4.
- Page 6 1 YEAR PARTS AND LABOR BENCH WARRANTY Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule a drop off to either an Omcan authorized service depot in the area, or to an Omcan Service warehouse to repair the equipment.
-
Page 7: Technical Specifications
Technical Specifications Model CE-CN-0004-N Electrical 208 - 240V / 60Hz Power 2700 - 3600W Dimensions 14” x 22” x 18.1” / 355 x 560 x 460mm Packaging Dimensions 17.7” x 25.6” x 18.7” / 450 x 650 x 475mm Weight 37 lbs. -
Page 8: Installation
Installation BEFORE FIRST USE CLEAN THE PASTA COOKER 1. Use a non-corrosive, grease-dissolving commercial cleaner to clean the protective metal oils from all surface parts and the tank interior. 2. Follow the cleaner manufacturer’s directions. CAUTION: be careful not to disturb the thermostat and high limit capillaries when cleaning down inside the tank. -
Page 9: Operation
Operation 2. Use caution when adding pasta into the baskets. 3. Always use extreme caution when lowering, lifting and draining baskets. The water is extremely hot. TO DRAIN WATER FROM BASIN Turn off the past cooker and unplug from electrical outlet. Allow water to cool to room temperature. You may connect a hose (not supplied) to the water outlet valve (connection is NPT 1/2x12) or drain direct from the valve. -
Page 10: Maintenance
Maintenance CLEANING & MAINTENANCE WARNING: in addition to what is listed here, refer to all important safeguards in this manual. ALWAYS DISCONNECT OR UNPLUG THE ELECTRICAL POWER FROM THE PASTA COOKER BEFORE CLEANING. DO NOT use any cleaning fluids that can be harmful to you, others around you, or to the environment. DO NOT hose down, immerse or pressure wash any part of the electric pasta cooker. -
Page 11: Troubleshooting
Maintenance removable for cleaning. You must use a small Phillips head screwdriver to remove. Troubleshooting If the pasta cooker does not work, please check the following: MALFUNCTION POSSIBLE CAUSE SOLUTION Pasta cooker is not working. Power supply. Check power source. Power switch has not been turned Check that the unit is correctly plugged in and turned on. -
Page 12: Parts Breakdown
Parts Breakdown Model CE-CN-0004-N 47503... - Page 13 Parts Breakdown Model CE-CN-0004-N 47503 Item No. Description Position Item No. Description Position Item No. Description Position AO236 Lid for 47503 AN785 Power Cord for 47503 AO249 Knob for 47503 AO237 Hanger for Basket for 47503 AO243 Temperature Limiter for 47503...
-
Page 14: Electrical Schematics
Electrical Schematics Model CE-CN-0004-N 47503... -
Page 15: Warranty Registration
Warranty Registration Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting: Merci d’avoir acheté... - Page 16 Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North American food service industry. Our success over these many years can be attributed to our commitment to strengthen and develop new and existing relationships with our valued customers and manufacturers.
