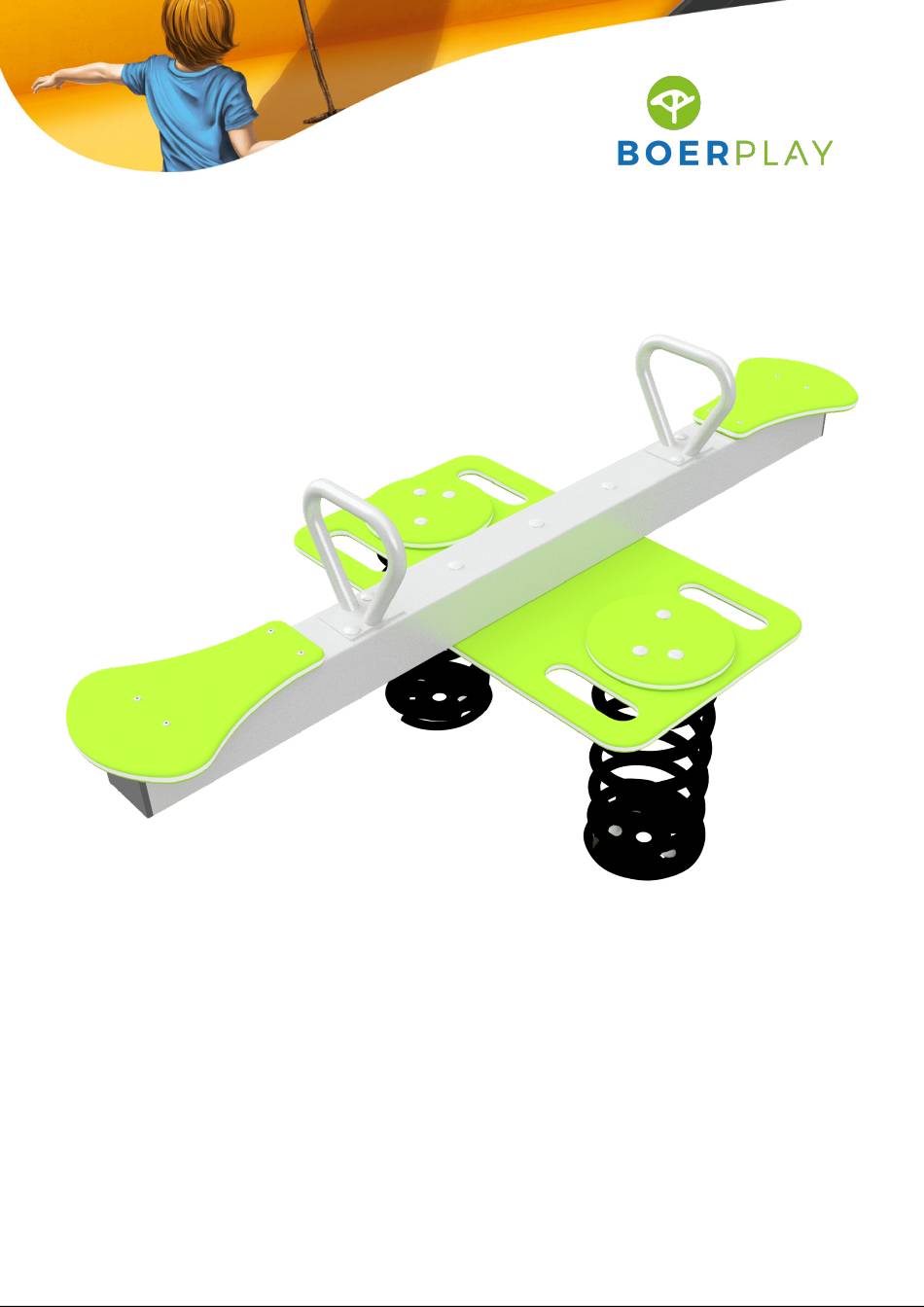

  • Page 1 Springer Seesaw BBPE011.0R...

  • Page 2: Main Dimensions

    A ( 1 : 15 ) Hoofdafmetingen Hauptabmessungen Dimensiones principales Dimensions principales 0,80 m 0,40 m 0,00 m 0,71 m 0,54 m 0,00 m BBP 011 0R © Copyright BOERplay 9-8-2021 Revision: A...
  • Page 3 Obstakelvrije zone Hindernissfreie raum Zona libre de obstáculos Zone libre d’obstacles 2,80 m BBP 011 0R © Copyright BOERplay 9-8-2021 Revision: A...

  • Page 4: Order Of Assembly

    Montagevolgorde Montagereihenfolge Orden de esemblado Ordre de montage 1,80 m 1,80 m Grondmarkering Ground level marker 0,49 m BBP 011 0R © Copyright BOERplay 9-8-2021 Revision: A...
  • Page 5 2 - Check the dimensions of the safety area with regard to the play equipment Typeplaatje Identification plate Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Veerwip dubbelschaal Onderstel Bovenstel kruiswip Basic Play BBP 011 0R © Copyright BOERplay 9-8-2021 Revision: A...
  • Page 6 LOGBOOK Type indication Basic Play Article number BBPE011.0R Product Name Springer Seesaw Maximum fall height 1,0 m Construction year 2023 Certificate 134883 Inspection body Keurmerkinstituut Groeneweg 2e, Zoetermeer 2718AA Zoetermeer Manufacturer name Boer Speeltoestellen Hyacintstraat 2 - 4255 HX Nieuwendijk...
  • Page 7 LOGBOOK Inspection and maintenance Date of Time of Name Name Parts to be inspection inspection executor of executor of Found defects replaced maintenance maintenance inspection maintenance Accidents Date Age of Measures taken Probable cause of injury Occurred injury accident victim after accident...

  • Page 8: Inspection And Maintenance Intervals

    Inspection and maintenance intervals months Nr. Inspection Maintenance between inspections Verify equipment's stability, junctions and Add missing parts, secure joints, apply missing parts. Inspect bolts, screws and nuts for missing fixing agent and replace absence, jams, corrosion and wear. corroded parts. Replace worn parts and/or remove non- Check suspension for wear.
  • Page 9 7. Remember that bad maintenance leads to unsafe conditions and notably faster impoverishment of the playground area. 8. Replacement parts can be ordered at the manufacturer with the OEM part numbers on the module drawing. Drawings can be found in the user guide. 9.
  • Page 11 - module Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module MOD BBI 716 © Copyright BOERplay 12-1-2022 Revision:...
  • Page 12 1 / 1 DRD.VER.201.905 DRD.VER.200.905 DRD.VER.202.000 BSV.026.010.035 BSV.030.010.002 BSV.010.010.010 SME.MNP.149.372 BSV.010.010.010 BSV.026.010.035 BSV.030.010.002 DRD.VER.200.905 DRD.VER.201.905 DRD.VER.202.000 SME.MNP.149.372 MOD BBI 716 © Copyright BOERplay 12-1-2022 Revision:...
  • Page 13 Type Progr. Volgnr. Bew. Rev. Benaming Opmerking M10 - VZ 8.8 Borgdopmoer DOPMOER BORG RVS M10 Klinknagel bolkop 4,8 x 30 - RVS A2-70 SLOTBOUT M10x55 Slotbout M10 x 120 - RVS A2-70 Slotbout M10 x 130 - VZ 8.8 SLUITRING M10 VZ SLUITRING...
