Summary of Contents for BOERPLAY Springer Chick

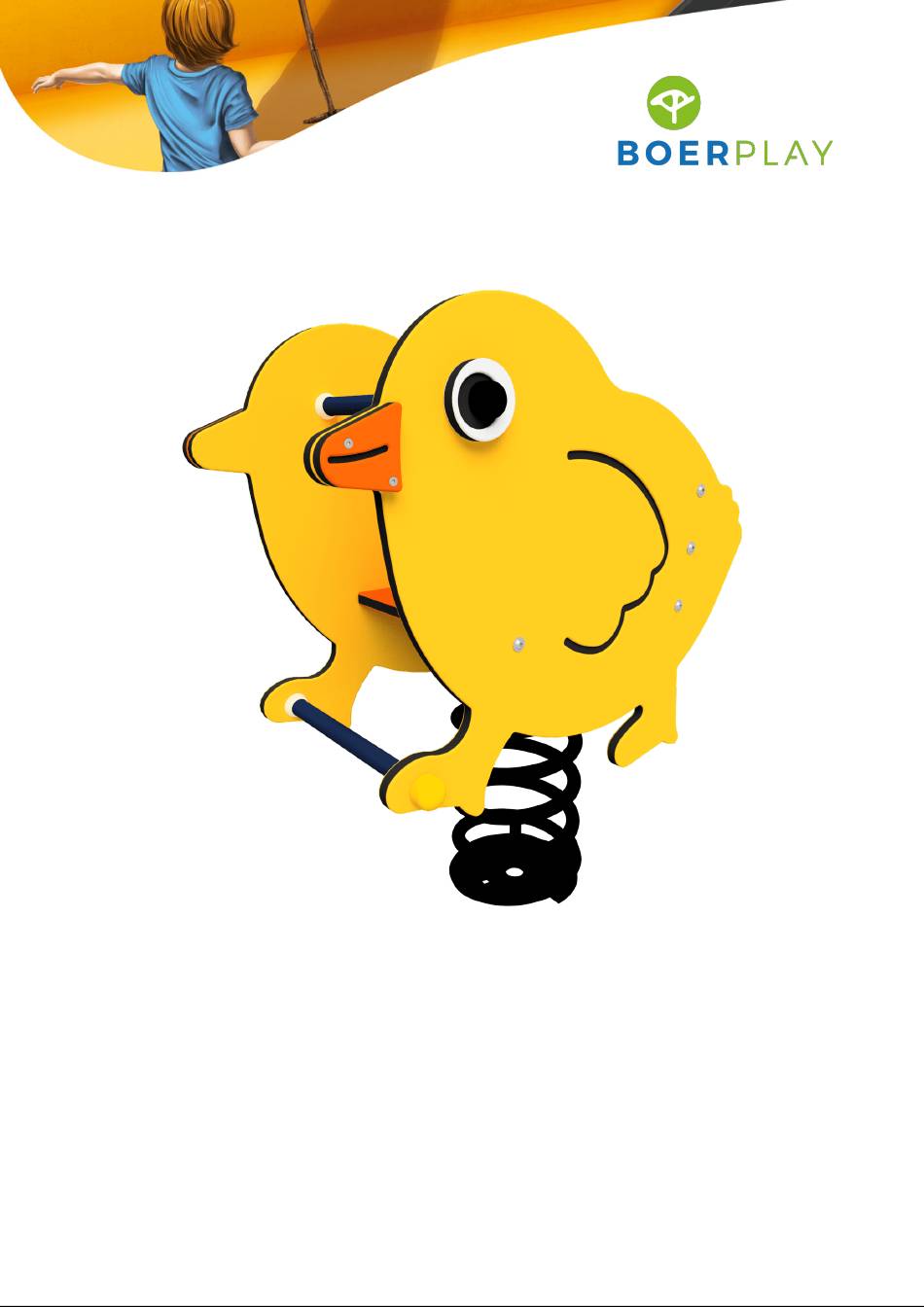

  • Page 1 Springer Chick BBIE708...

  • Page 2: Installation Instructions

    Si el tierra no ayuda a la estabilidad del equipo que se está colocando, vierta 50L de hormigón por poste. FR - Important ! Si le sol ne contribue pas à la stabilité de l’équipement à placer, versez 50L de béton par poteau. BBI 708 © Copyright BOERplay 12-1-2022 Revision:...
  • Page 3 Hoofdafmetingen Hauptabmessungen Dimensiones principales Dimensions principales 0,70 m 0,83 m 0,45 m 0,00 m BBI 708 © Copyright BOERplay 12-1-2022 Revision:...
  • Page 4 Zona libre de obstáculos Zone libre d’obstacles 3,50 m 1,35 m Impact area Opvangzone Ausprallbereich Zona de impacto Zone d‘impact Obstacle free zone Obstakelvrije zone Hindernissfreie raum Zona libre de obstáculos Zone libre d’obstacles BBI 708 © Copyright BOERplay 12-1-2022 Revision:...
  • Page 5 Bodemplan Bodenplan Plan de superficie Plan de surface 1,75 m 1,75 m Ground level Maaiveld Bodennahe Nivel del suelo Niveau au sol BBI 708 © Copyright BOERplay 12-1-2022 Revision:...

  • Page 6: Assembly Manual

    Montagevolgorde Montagereihenfolge Orden de esemblado Ordre de montage - assembly manual - module Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module MOD.BBI.710 MOD.BBI.701 MOD.BBI.701 MOD.BBI.710 BBI 708 © Copyright BOERplay 12-1-2022 Revision:...
  • Page 7 Benodigde gereedschappen Benötigtes Werkzeug Herramientas requeridas Outils nécessaires TX-25 TX-40 No. 10 (2x) No. 13 (2x) No. 17 (2x) TX-25 No. 10 No. 13 No. 17 Ø3 mm Ø5 mm Ø11 mm Ø12 mm © Copyright BOERplay Revision:...
  • Page 8 1 / 2 Montagevolgorde Montagereihenfolge Orden de esemblado Ordre de montage assembly manual module MOD.BBI.710 assembly manual module MOD.BBI.701 2 / 2 BOER PLAY xxx.xxx.xxx EN 1176 www.boerplay.com BBI 708 © Copyright BOERplay 12-1-2022 Revision:...
  • Page 9 LOGBOOK Type indication Figura Play Article number BBIE708 Product Name Springer Chick Maximum fall height > 0,6 m Construction year 2023 Certificate 066751 Inspection body TUV Nederland QA BV Ekkersrijt 4401 5692 DL Son Manufacturer name Boer Speeltoestellen Hyacintstraat 2 - 4255 HX Nieuwendijk...
  • Page 10 LOGBOOK Inspection and maintenance Date of Time of Name Name Parts to be inspection inspection executor of executor of Found defects replaced maintenance maintenance inspection maintenance Accidents Date Age of Measures taken Probable cause of injury Occurred injury accident victim after accident...

  • Page 11: Inspection And Maintenance Intervals

    Inspection and maintenance intervals months Nr. Inspection Maintenance between inspections Verify equipment's stability, junctions and Add missing parts, secure joints, apply missing parts. Inspect bolts, screws and nuts for missing fixing agent and replace absence, jams, corrosion and wear. corroded parts. Replace worn parts and/or remove non- Check suspension for wear.
  • Page 12 7. Remember that bad maintenance leads to unsafe conditions and notably faster impoverishment of the playground area. 8. Replacement parts can be ordered at the manufacturer with the OEM part numbers on the module drawing. Drawings can be found in the user guide. 9.
  • Page 14 - module Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module MOD BBI 701 © Copyright BOERplay 12-1-2022 Revision:...
  • Page 15 1 / 1 OME.PST.023.905 SMD.VER.200.905 BSV.026.010.035 BSV.030.010.002 BSV.010.010.010 SME.MNP.149.372 BSV.010.010.010 BSV.026.010.035 BSV.030.010.002 OME.PST.023.905 SMD.VER.200.905 SME.MNP.149.372 MOD BBI 701 © Copyright BOERplay 12-1-2022 Revision:...
  • Page 16 - module Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module MOD BBI 710 © Copyright BOERplay 30-6-2021 Revision:...
  • Page 17 1 / 4 OPE.BBI.629.012 OPE.BBI.631.022 OPE.BBI.630.012 OPE.BBI.632.022 Detail A (4x) 35 mm BSR.053.005.035 BSR.053.005.035 OPE.BBI.629.012 OPE.BBI.630.012 OPE.BBI.631.022 OPE.BBI.632.022 MOD BBI 710 © Copyright BOERplay 30-6-2021 Revision:...
  • Page 18 2 / 4 OPE.BBI.567.022 OPE.BBI.568.022 Detail B (8x) ✔ BSR.010.008.008 OME.BBI.021 BSR.052.008.060 BSR.010.008.008 BSR.052.008.060 OME.BBI.021 OPE.BBI.567.022 OPE.BBI.568.022 MOD BBI 710 © Copyright BOERplay 30-6-2021 Revision:...
  • Page 19 BSV.030.010.002 KST.DON.010.020 BSV.060.010.400 KST.DON.011.020 BSV.060.010.365 OME.MNP.231.502 OME.MNP.231.502 KST.DON.011.020 BSV.017.010.008 OPE.BBI.572.006 BSV.030.010.002 KST.DON.011.020 BSV.034.010.002 BSV.060.010.365 KST.DON.010.060 KST.DON.010.020 BSV.060.010.400 BSV.030.010.002 KST.DON.010.010 BSV.030.010.002 KST.DON.010.060 BSV.034.010.002 BSV.034.010.002 KST.DON.011.020 BSV.017.010.008 KST.DOP.010.010 BSV.017.010.008 KST.DOP.010.060 KST.DOP.010.060 KST.DOP.010.020 OME.MNP.231.502 OPE.BBI.572.006 MOD BBI 710 © Copyright BOERplay 30-6-2021 Revision:...
  • Page 20 4 / 4 Detail E (4x) BSV.026.010.035 BSV.030.010.002 BSV.011.010.020 BSV.011.010.020 BSV.026.010.035 BSV.030.010.002 MOD BBI 710 © Copyright BOERplay 30-6-2021 Revision:...
