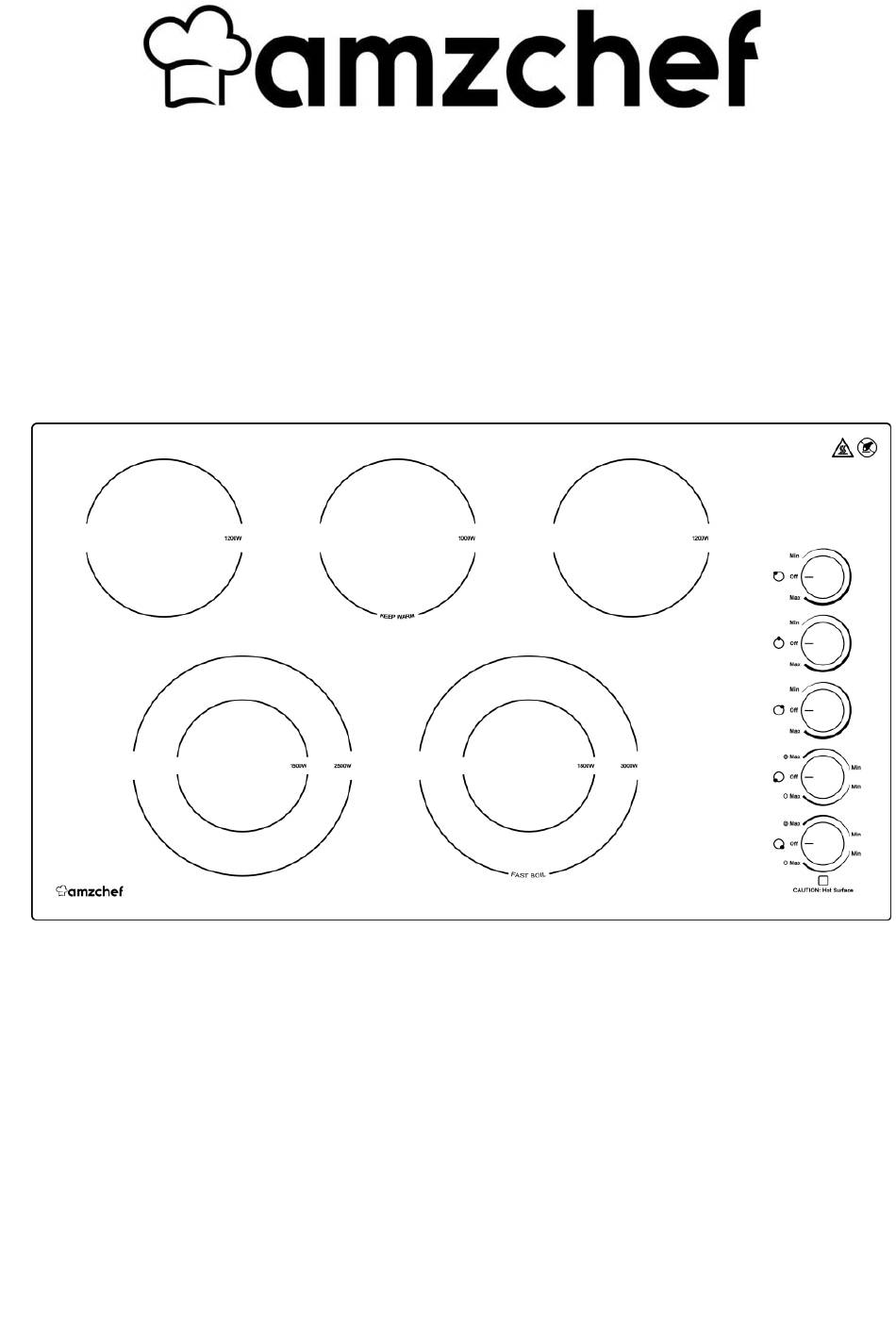

- Page 1 INSTRUCTION MANUAL Ceramic Cooker Hob Brand:amzchef YL-CF8907A 220-240V~ 50-60Hz PLEASE READ INSTRUCTIONS CAREFULLY BEFORE ASSEMBL RETAIN THIS MANUAL FOR FUTURE REFERENCE...
-
Page 2: Table Of Contents
Contents Safety Warnings..................3 Product Overview and Parameters..........11 How to choose right cookware............12 Use Instruction..................13 Cooking Guidelines….................14 Care and Cleaning...............16 Technical Specification..............18 Installation instruction.................18 Warranty…..................... 22... -
Page 3: Safety Warnings
Safety Warnings Your safety is important to us. Please read this information before using your cooktop. Installation Electrical Shock Hazard • Disconnect the appliance from the mains electricity supply before carrying out any work or maintenance on it. • Connection to a good earth wiring system is essential and mandatory. - Page 4 reduce your installation costs. • In order to avoid a hazard, this appliance must be installed according these instructions installation. • This appliance should be connected to a circuit which incorporates an isolating switch providing full disconnection from the power supply. •...
- Page 5 • Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can get hot • Keep children away. • Handles of saucepans may be hot to touch. Check saucepan handles do not overhang other cooking zones that are on.
- Page 6 above the appliance. Children climbing on the cooktop could be seriously injured. • Children or persons with a disability which limits their ability to use the appliance should have a responsible and competent person to instruct them in its use. The instructor should be satisfied that they can use the appliance without danger to themselves or their surroundings.
- Page 7 Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised. •This appliance can be used by children aged from 8 years above persons with reduced physical,sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards...
- Page 8 •To avoid stain or damage to the glass cooktop, use only cleaning products made especially for ceramic glass. •When the power of the cooktop is turned on, do not touch the glass surfece to avoid injury even if the hot surface indicator is turned off.
- Page 9 towel or other bulky cloth. • Use Proper Pan Size – This appliance is equipped with one or more surface units of different size. Select utensils having flat bottoms large enough to cover the surface unit heating element. The use of undersized utensils will expose a portion of the heating element to direct contact and may result in ignition of clothing.
- Page 10 be seriously injured. • DO NOT TOUCH SURFACE UNITS OR AREAS NEAR UNITS – Surface units may be hot even though they are dark in color. Areas near surface units may become hot enough to cause burns. During and after use, do not touch, or let clothing or other flammable materials contact surface units or areas near units until they have had sufficient time to...
-
Page 11: Product Overview And Parameters

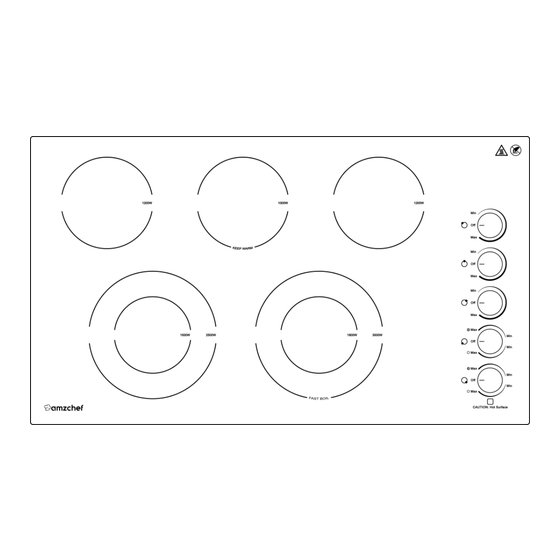

Product Overview Top View 1. max. 1500/2500W zone 2. max. 1200W zone 3. Max. 1000W zone 4. Max. 1200W zone 5. Max.1800/3000W zone 6. Glass plate 7. Control panel 8.Hot Surface Indication Control Panel 1. Knob control zone 2. Zone position... -
Page 12: How To Choose Right Cookware
Product Information This ceramic cooker hob can meet different kinds of cuisine demands because of resistance wire heating, really the optimal choice for modern families. Working Principle This ceramic cooker hob directly employs resistance wire heating, and adjust the output power by the power regulation with the mechanical controls. Before using your New Ceramic Hob •... -
Page 13: Use Instruction
Using your Ceramic Hob To start cooking 1.Place a suitable pan on the cooking zone that you wish to use. Make sure the bottom of the pan and the surface of the cooking zone are clean and dry. Press and turn the control knob to the desired power level. Single cooking zone control knobs (Zone 2/3/4). -
Page 14: Cooking Guidelines
Hot surface indicator • Comes on when the unit is turned on or hot to the touch. • Stays on even after the unit is turned off. • Red led indicator will show cooking zone is hot to touch and it will disappear when the surface has cooled down to under about 140 60℃. - Page 15 Searing steak To cook juicy flavoursome steaks: 1.Rest your meat at room temperature for about 20 minutes before cooking. 2. Heat up a heavy-based frying pan. 3. Brush both sides of the steak with oil. Drizzle a small amount of oil into the hot pan and then lower the meat onto the hot pan.
-
Page 16: Care And Cleaning
High • stir-frying • searing • bringing soup to the boil • boiling water Care and Cleaning Cooktop Maintenance Consistent and proper cleaning is essential to maintaining your ceramic glass cooktop. Prior to using your cooktop for the first time, apply a ceramic cooktop cleaning cream (available in most hardware, grocery, and department stores) to the ceramic surface. - Page 17 * Before cleaning the cooktop, be sure the controls are turned to OFF and the cooktop is cool. The glass surface could be hot from contact with hot cookware, burns may occur if the glass surface is touched before it has cooled sufficiently * Do not use a cooktop cleaner on a hot cooktop.
-
Page 18: Technical Specification
Cookware materials and weight of the material affect heating. Heavy and medium-weight pans heat evenly. Because lightweight pans heat unevenly, foods may burn easily. Technical Specification Cooking Hob YL-CF8907A Cooking Zones 5 Zones Supply Voltage 220-240V~ 50-60Hz Installed Electric Power 8900W Product Size L×W×H... - Page 19 L(in) W(in) H(in) D(in) A(in) B(in) X(mm) 35.4 20.5 34.25-34.33 19.29-19.37 2.0mini Under any circumstances, make sure the ceramic cooker hob is well ventilated and the air inlet and outlet are not blocked. Ensure the ceramic cooker hob is in good work state.
- Page 20 screw bracket Screw hole Bottom/housing Cautions 1. The ceramic cooker hob must be installed by qualified personnel or technicians. We have professionals at your service. Please never conduct the operation by yourself. 2. The ceramic cooker hob shall not be mounted to cooling equipment, dishwashers and rotary dryers.
- Page 21 Connecting the hob to the mains power supply The power supply should be connected in compliance with the relevant standard, or a single-pole circuit breaker. The method of connection is shown below. 1. If the cable is damaged or needs replacing, this should be done by an after-sales technician using the proper tools, so as to avoid any accidents.
