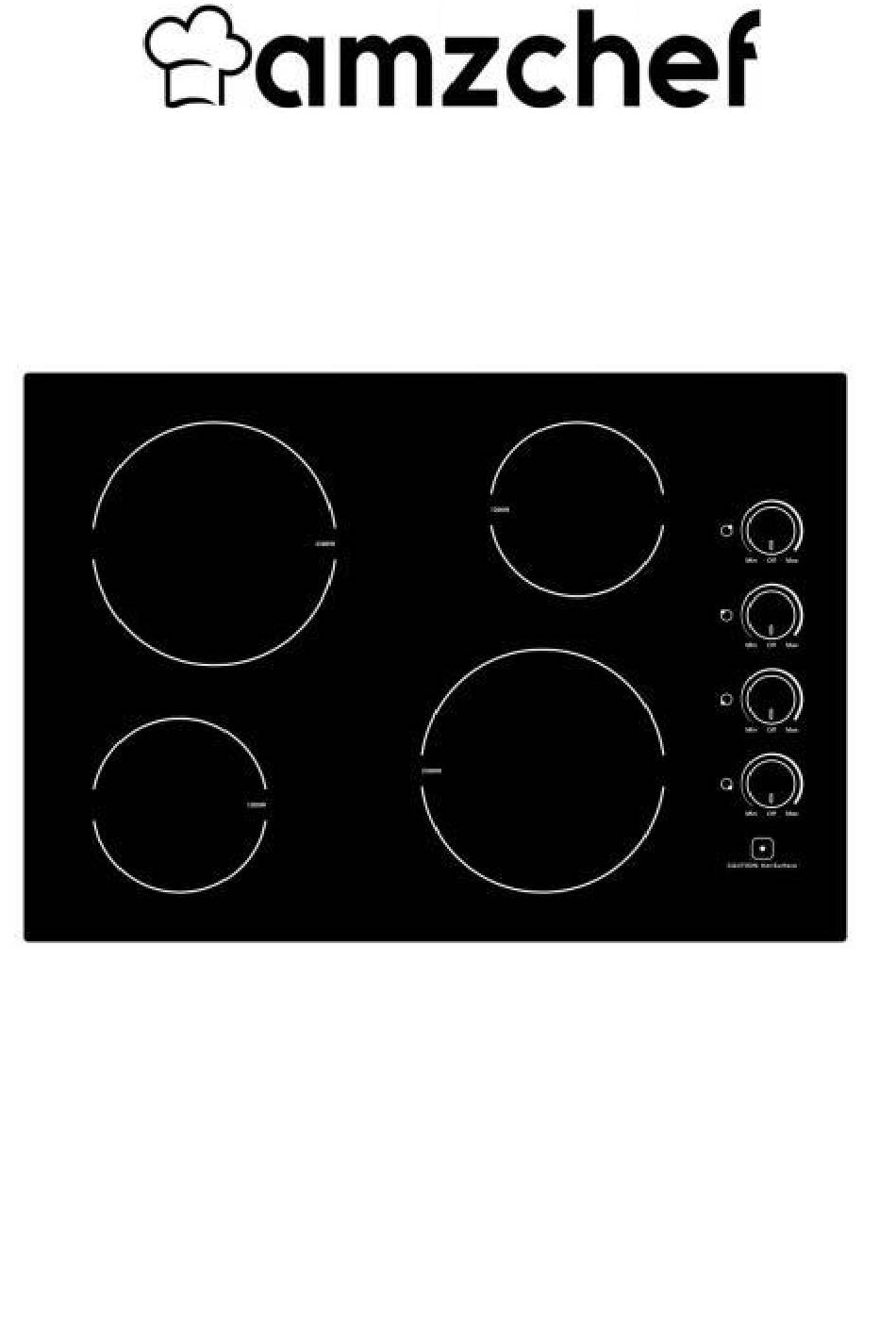

- Page 1 INSTRUCTION MANUAL Ceramic Cooker Hob YL-EC4-307007 240V~, 60Hz PLEASE READ INSTRUCTIONS CAREFULLY BEFORE ASSEMBLY RETAIN THIS MANUAL FOR FUTURE REFERENCE...
-
Page 2: Table Of Contents
Contents Safety Warnings..................3 Product Overview and Parameters..........11 How to choose right cookware............12 Use Instruction..................13 Cooking Guidelines …................. 14 Care and Cleaning...............16 Technical Specification ..............17 Installation instruction................. 17 Warranty …..................... 21... -
Page 3: Safety Warnings
Safety Warnings Your safety is important to us. Please read this information before using your cooktop. Installation Electrical Shock Hazard • Disconnect the appliance from the mains electricity supply before carrying out any work or maintenance on it. • Connection to a good earth wiring system is essential and mandatory. - Page 4 reduce your installation costs. • In order to avoid a hazard, this appliance must be installed according these instructions installation. • This appliance is to be properly installed and earthed only by a suitably qualified person. • This appliance should be connected to a circuit which incorporates isolating switch...
- Page 5 the surface is cool. • Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can get hot • Keep children away. • Handles of saucepans may be hot to touch. Check saucepan handles do not overhang other cooking zones that are on.
- Page 6 • Do not store items of interest to children in cabinets above the appliance. Children climbing on the cooktop could be seriously injured. • Children or persons with a disability which limits their ability to use the appliance should have a responsible and competent person to instruct them in its use.
- Page 7 Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised. •This appliance can be used by children aged from 8 years above persons with reduced physical,sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards...
- Page 8 •To avoid stain or damage to the glass cooktop, use only cleaning products made especially for ceramic glass. •When the power of the cooktop is turned on, do not touch the glass surfece to avoid injury even if the hot surface indicator is turned off.
- Page 9 towel or other bulky cloth. • Use Proper Pan Size – This appliance is equipped with one or more surface units of different size. Select utensils having flat bottoms large enough to cover the surface unit heating element. The use of undersized utensils will expose a portion of the heating element to direct contact and may result in ignition of clothing.
- Page 10 cloth is used to wipe spills on a hot cooking area, be careful to avoid steam burn. Some cleaners can produce noxious fumes if applied to a hot surface. •WARNING-Do not store items of interest to children in cabinets above a range or on the backguard of a range –...
-
Page 11: Product Overview And Parameters
Product Overview Top View 1. max. 1200 W zone 2 . max. 2300 W zone 3 . max. 1200 W zone 4. max. 2300 W zone 5 . Glass Plate 6. Knob Control 7. Hot Surface Indicator Control Panel 1. Knob control 2. -
Page 12: How To Choose Right Cookware
Product Information This ceramic cooker hob can meet different kinds of cuisine demands because of resistance wire heating, really the optimal choice for modern families. Working Principle This ceramic cooker hob directly employs resistance wire heating, and adjust the output power by the power regulation with the mechanical controls. Before using your New Ceramic Hob •... -
Page 13: Use Instruction
Using your Ceramic Hob To start cooking 1. Place a suitable pan on the cooking zone that you wish to use. • Make sure the bottom of the pan and the surface f the cooking zone are clean and dry. 2. -
Page 14: Cooking Guidelines
Cooking Guidelines Cooking Tips • When food comes to the boil, reduce the power setting. • Using a lid will reduce cooking times and save energy by retaining the heat. • Minimise the amount of liquid or fat to reduce cooking times. •... - Page 15 Heat Settings Heat setting Suitability • delicate warming for small amounts of food • melting chocolate, butter, and foods that burn quickly • gentle simmering • slow warming Medium • reheating • rapid simmering • cooking rice • pancakes • sauteing •...
-
Page 16: Care And Cleaning
Care and Cleaning What? How? Important! 1. Switch the power to the cooktop Everyday soiling on glass • When the power to the cooktop is off. switched off, there will be no ‘hot (fingerprints, marks, stains left by food or non-sugary 2. -
Page 17: Technical Specification
This is normal for cookware and clicking crackling construction of your cookware does not indicate a fault. noises. (layers of different metals vibrating differently) . Technical Specification YL-EC4-307007 Cooking Hob Cooking Zones 4 Zones Supply Voltage 240V~,60Hz Installed Electric Power 7000W Product Size L×W×H(in) - Page 18 cabinets. 3. Cut out the work surface according to the sizes shown in the drawing. For the purpose of installation and use, a minimum of 5 cm space shall be preserved around the hole. Be sure the thickness of the work surface is at least 30mm. Please select heat- resistant work surface material to avoid larger deformation caused by the heat radiation from the hotplate.
- Page 19 Before locating the fixing brackets 1. The unit should be placed on a stable, smooth surface (use the packaging). Do not apply force onto the controls protruding from the hob. 2. Fix the hob on the work surface by screw four brackets on the bottom of hob (see picture) after installation.
- Page 20 Cautions 1. The ceramic cooker hob must be installed by qualified personnel or technicians. We have professionals at your service. Please never conduct the operation by yourself. 2. The ceramic cooker hob shall not be mounted to cooling equipment, dishwashers and rotary dryers.
-
Page 21: Warranty
5. The cable must be checked regularly and only replaced by a properly qualified person. WARRANTY Thank you for choosing AMZCHEF product. We sincerely hope that you are satisfied with it. The manufacturer's warranty covers the product for a period of 12 months from the date of purchase against manufacturing faults. - Page 22 Please fill in the table and email it within 10 days from the date of purchase.
