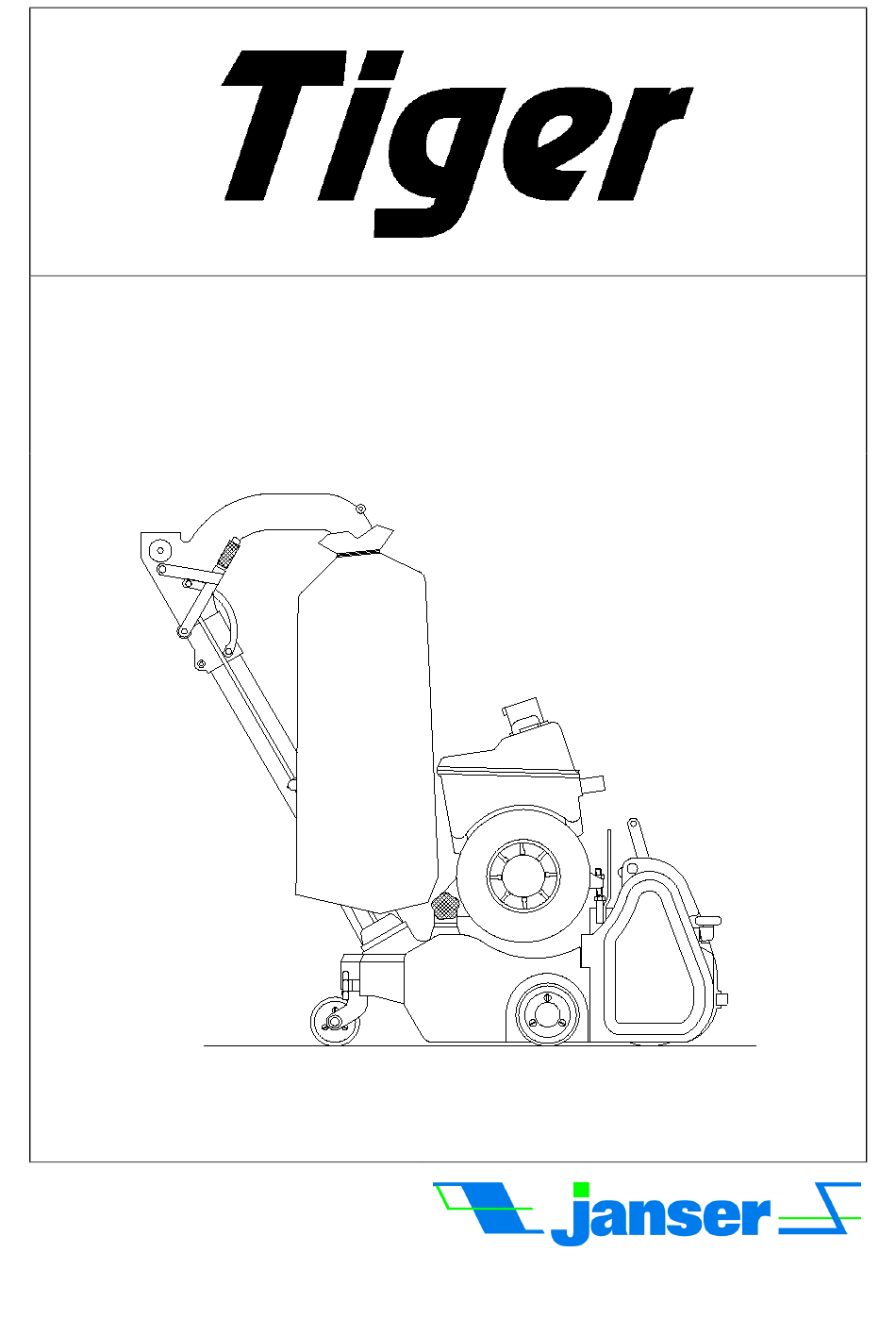

USE AND MAINTENANCE MANUAL FOR THE TIGER MACHINE
This manual contains important information for safe use and operation of this machine.
Failure to read this manual before starting up, adjusting or carrying out maintenance operations on this
machine may cause damage to persons and/or things. The operator must be trained to use the machine
before starting it up. Keep this manual for future reference.
Janser GmbH - Maschinen- und Gerätebau
Böblinger Straße 91 - D-71139 Ehningen
Tel. 07034 / 127-0 - Telefax 07034 / 8838
http:// www.janser.com Email: info@janser.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Janser Tiger
Summary of Contents for Janser Tiger
- Page 1 USE AND MAINTENANCE MANUAL FOR THE TIGER MACHINE This manual contains important information for safe use and operation of this machine. Failure to read this manual before starting up, adjusting or carrying out maintenance operations on this machine may cause damage to persons and/or things. The operator must be trained to use the machine before starting it up.
-
Page 2: Table Of Contents
TIGER ED 95 PG. 2/16 BELT-SANDER FOR WOODEN FLOORS INDEX Instructions for operator safety ......................3 Machine safety characteristics ......................6 Introduction and machine characteristics ..................6 Instructions for electrical connection ....................7 Carrying the machine one person ....................two people .................... -
Page 3: Instructions For Operator Safety
DANGER: Failure to read the TIGER machine manual before starting up, adjusting or carrying out maintenance operations on the machine itself may cause injury to persons and/or damage to things. The operator must be trained to use the machine before starting it up. - Page 4 TIGER ED 95 PG. 4/16 BELT-SANDER FOR WOODEN FLOORS DANGER: Use of the machine before it is completely assembled may cause injuries to people and/or damage to things. Do not use a machine which is not completely assembled. Keep all fastenings closed. Adjust the machine according to the specifications.
- Page 5 Make sure that all the plates, transfer printings, warnings, cautions and instructions are fixed to the machine. New plates may be had from your authorized JANSER retailer. WARNING: Clouds of sanding dust may form and be breathed in while the sanding machine is being used.
-
Page 6: Machine Safety Characteristics
TIGER ED 95 PG. 6/16 BELT-SANDER FOR WOODEN FLOORS MACHINE SAFETY INSTRUCTIONS The following information highlights potentially dangerous conditions for the operator and/or machine. Read this manual carefully in order to become familiar with the machine. Learn to know when these conditions may occur. -
Page 7: Instructions For Electrical Connection
For Europe, the power supply cable must be of the HAR approved type, namely HO5VV-3x2.5 mm 2 , and the plug must be of the 2P+T16A-250V approved type. For non-European versions, consult an authorized JANSER distributor. INSTRUCTION MANUAL... - Page 8 TIGER ED 95 PG. 8/16 BELT-SANDER FOR WOODEN FLOORS INSTRUCTION MANUAL...
- Page 9 TIGER ED 95 PG. 9/16 BELT-SANDER FOR WOODEN FLOORS INSTRUCTION MANUAL...
-
Page 10: Carrying The Machine
TIGER ED 95 PG. 10/16 BELT-SANDER FOR WOODEN FLOORS CARRYING THE MACHINE WARNING: Since the machine is heavy, disconnect the motor before moving it. Ask for help in lifting the machine and the motor. MOVEMENT WITH ONE PERSON In order to make movement easier, the machine can be dismantled into three parts: •... -
Page 11: Setting The Machine Up
TIGER ED 95 PG. 11/16 BELT-SANDER FOR WOODEN FLOORS SETTING THE MACHINE UP In order to start up the machine, proceed as follows: Familiarize yourself with the machine and read all the danger, warning and caution instructions. Make sure that all operators have read this manual. -
Page 12: Machine Operation
TIGER ED 95 PG. 12/16 BELT-SANDER FOR WOODEN FLOORS MACHINE OPERATION DANGER: Sanding wooden floors may lead to an explosive environment. Cigarettes, cigars, pipes, lighters, pilot lights and all other sources of fire may cause an explosion if they are used while sanding. Sources of fire must be completely removed from the work area. -
Page 13: Centring The Belt
TIGER ED 95 PG. 13/16 BELT-SANDER FOR WOODEN FLOORS PROCEDURE FOR CENTRING THE BELT When the motor is started up, the belt centres itself automatically. WARNING: The belt is in the correct position when it protrudes from the sanding roller by about 1.5 mm. -
Page 14: Wheels
5000 hours. SPARE PARTS Always use original JANSER spare parts. The guarantee and consequent responsibility are forfeited if non-original JANSER spare parts are used, and if repairs and adjustments are carried out by unauthorized personnel. _______________________________________________________________________________________________ INSTRUCTION MANUAL... -
Page 15: Problems/Causes/Remedies
JANSER distributor faulty motor contact an authorized JANSER distributor Grooved work faulty belt replace the belt surface... -
Page 16: Compliance Declaration
TIGER ED 95 PG. 16/16 BELT-SANDER FOR WOODEN FLOORS EC COMPLIANCE DECLARATION 73/23CEE, 89/392/CEE, 91/368/CEE / 89/336/CEE, 92/31/CEE, 93/44/CEE / 93/68/CEE Janser GmbH Böblinger Straße 91 71139 Ehningen GERMANY declare under our responsibility that the product Tiger Belt Sander to which this declaration relates complies with the following standards or other normative document(s): Safety of machinery - Basic concepts, general principles for design à...
