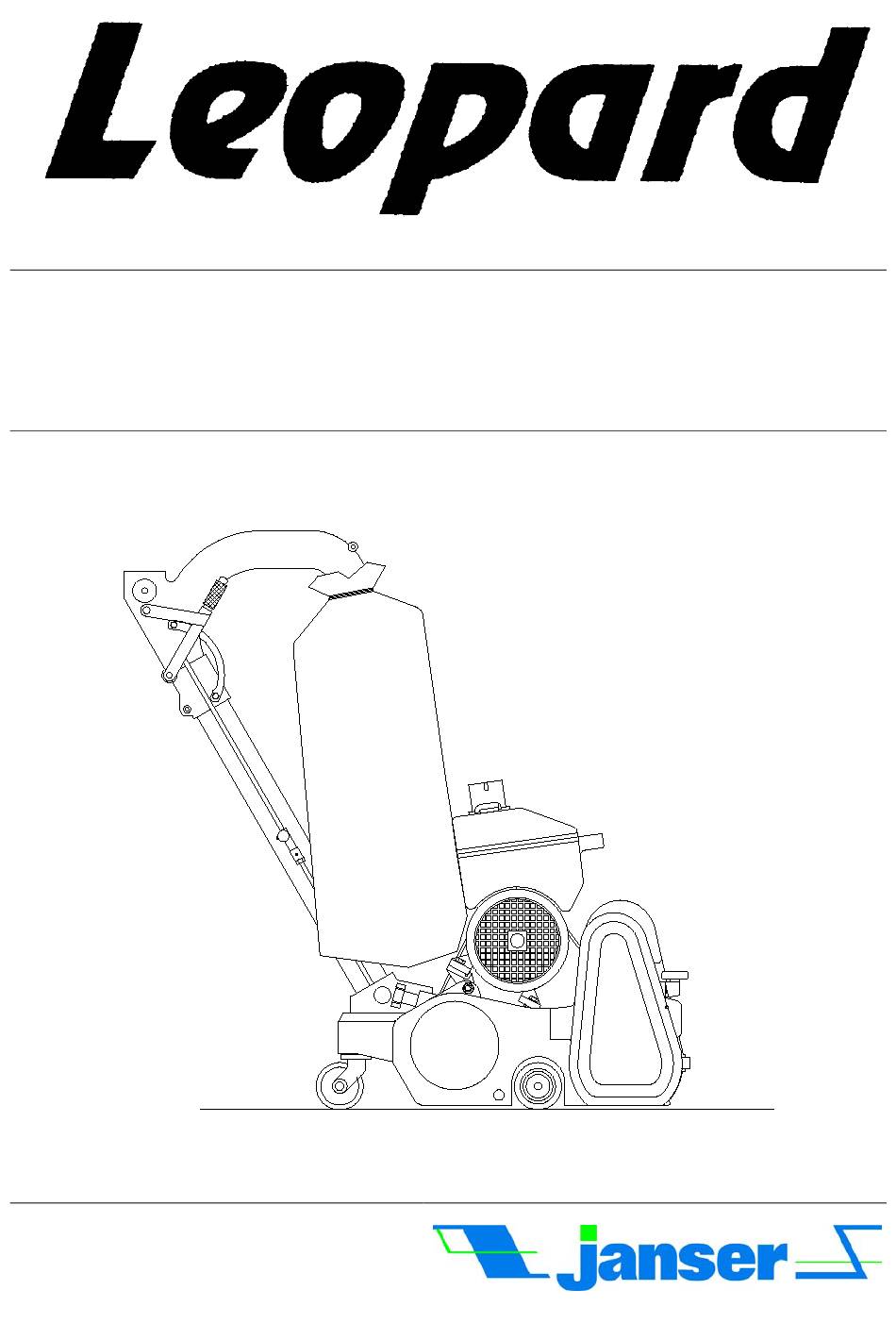

USE AND MAINTENANCE MANUAL FOR THE LEOPARD MACHINE
This manual contains important information for safe use and operation of this machine.
Failure to read this manual before starting up, adjusting or carrying out maintenance operations on
this machine may cause damage to persons and/or things. The operator must be trained to use the
machine before starting it up. Keep this manual for future reference. For new manuals, apply to:
Janser GmbH - Maschinen- und
Gerätebau
Böblinger Straße 91
- D-71139 Ehningen
Tel. 07034 / 127-0 - Telefax 07034 / 8838
http:// www.janser.com Email: info@janser.com
Advertisement
Table of Contents
Related Manuals for Janser Leopard
Summary of Contents for Janser Leopard
- Page 1 USE AND MAINTENANCE MANUAL FOR THE LEOPARD MACHINE This manual contains important information for safe use and operation of this machine. Failure to read this manual before starting up, adjusting or carrying out maintenance operations on this machine may cause damage to persons and/or things. The operator must be trained to use the machine before starting it up.

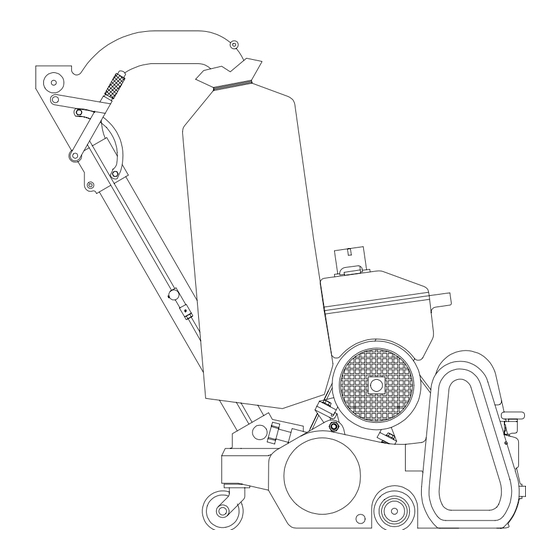

- Page 2 BELT-SANDER FOR WOODEN FLOORS Leopard Page 2 INSTRUCTION MANUAL...
-
Page 3: Table Of Contents
BELT-SANDER FOR WOODEN FLOORS Leopard INDEX Instructions for operator safety ........................Machine safety characteristics ........................Introduction and machine characteristics....................Instructions for electrical connection ......................Figures ............................... Carrying the machine one person ......................two people ......................Setting the machine up .......................... -
Page 4: Instructions For Operator Safety
DANGER: Failure to read the LEOPARD machine manual before starting up, adjusting or carrying out maintenance operations on the machine itself may cause injury to persons and/or damage to things. The operator must be trained to use the machine before starting it up. - Page 5 Read and abide by all safety instructions. Make sure that all the plates, transfer printings, warnings, cautions and instructions are fixed to the machine. New plates may be had from your authorized JANSER retailer. WARNING: Clouds of sanding dust may form and be breathed in while the sanding machine is being used.
-
Page 6: Machine Safety Characteristics
BELT-SANDER FOR WOODEN FLOORS Leopard CAUTION: Injury or damage may occur if maintenance and repairs are carried out by unauthorized staff. CAUTION: Injury or damage may occur if the machine is used to move other objects or if it is moved on a slope. -
Page 7: Introduction And Machine Characteristics
For Europe, the power supply cable must be of the HAR approved type, namely HO5VV-3x2.5 mm 2 , and the plug must be of the 2P+T16A-250V approved type. For non-European versions, consult an authorized JANSER distributor. INSTRUCTION MANUAL Page 7... -
Page 8: Figures
BELT-SANDER FOR WOODEN FLOORS Leopard Figures Page 8 INSTRUCTION MANUAL... - Page 9 BELT-SANDER FOR WOODEN FLOORS Leopard Figures INSTRUCTION MANUAL Page 9...
-
Page 10: Carrying The Machine
BELT-SANDER FOR WOODEN FLOORS Leopard CARRYING THE MACHINE WARNING: Since the machine is heavy, disconnect the motor before moving it. Ask for help in lifting the machine and the motor. MOVEMENT WITH ONE PERSON In order to make movement easier, the machine can be dismantled into three parts:... -
Page 11: Setting The Machine Up
BELT-SANDER FOR WOODEN FLOORS Leopard SETTING THE MACHINE UP In order to start up the machine, proceed as follows: Familiarize yourself with the machine and read all the danger, warning and caution instructions. Make sure that all operators have read this manual. -
Page 12: Machine Operation
BELT-SANDER FOR WOODEN FLOORS Leopard MACHINE OPERATION DANGER: Sanding wooden floors may lead to an explosive environment. Cigarettes, cigars, pipes, lighters, pilot lights and all other sources of fire may cause an explosion if they are used while sanding. Sources of fire must be completely removed from the work area. -
Page 13: Adjustment Procedure
BELT-SANDER FOR WOODEN FLOORS Leopard ADJUSTMENT PROCEDURES PROCEDURE FOR CENTRING THE BELT When the motor is started up, the belt centres itself automatically. WARNING: The belt is in the correct position when it protrudes from the sanding roller by about 1.5 mm. -
Page 14: Wheels
5000 hours. SPARE PARTS Always use original JANSER spare parts. The guarantee and consequent responsibility are forfeited if non- original JANSER spare parts are used, and if repairs and adjustments are carried out by unauthorized personnel. Page 14... -
Page 15: Problems/Causes/Remedies
JANSER distributor faulty motor contact an authorized JANSER distributor Grooved work surface faulty belt replace the belt dirty or faulty roller surfaces... -
Page 16: Compliance Declaration
BELT-SANDER FOR WOODEN FLOORS Leopard EC COMPLIANCE DECLARATION 73/23CEE, 89/392/CEE, 91/368/CEE / 89/336/CEE, 92/31/CEE, 93/44/CEE / 93/68/CEE Janser GmbH Böblinger Straße 91 71139 Ehningen GERMANY declare under our responsibility that the product Leopard Belt Sander to which this declaration relates complies with the following standards or other normative document(s): Safety of machinery - Basic concepts, general principles for design à...
