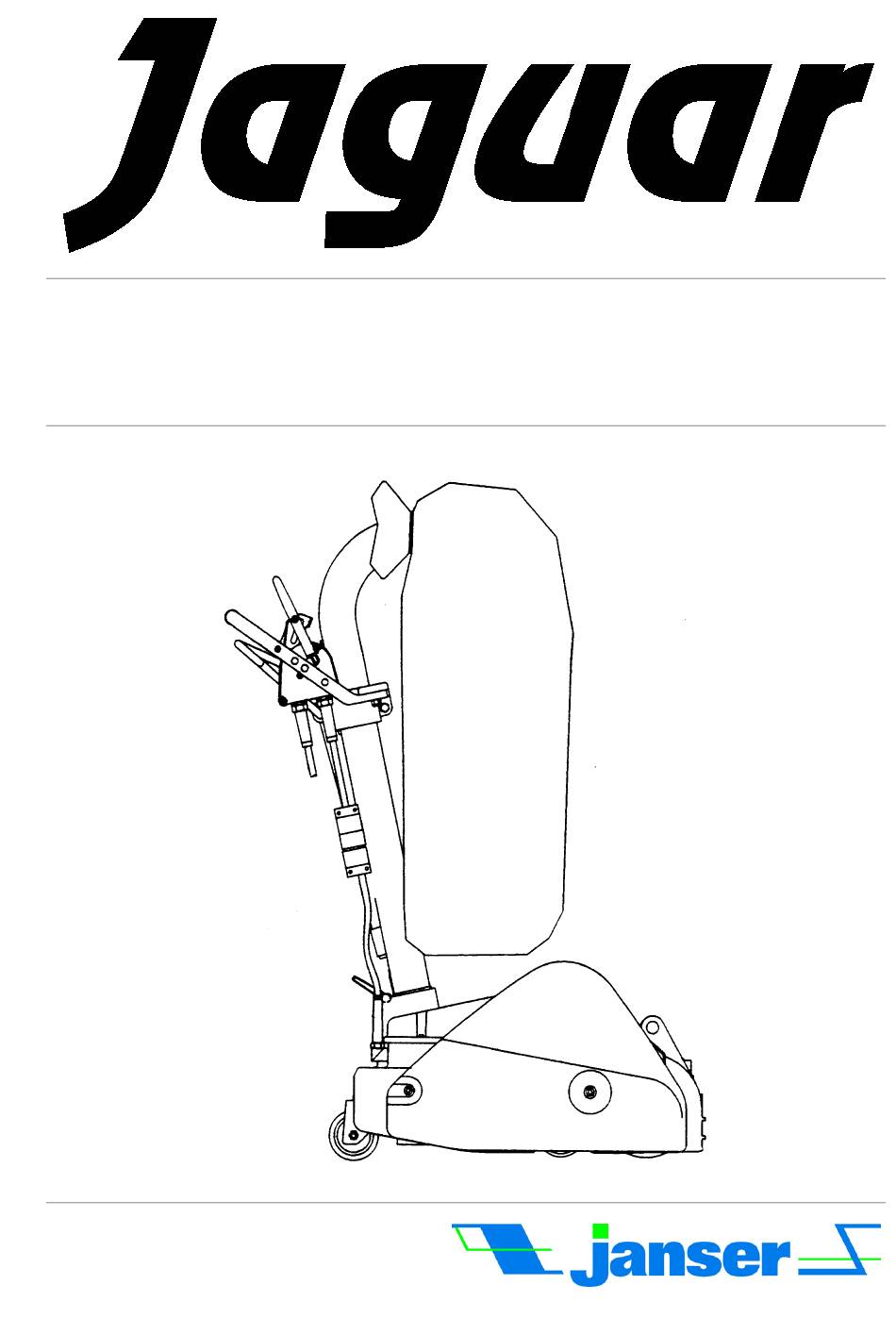

USE AND MAINTENANCE MANUAL FOR THE JAGUAR MACHINE
This manual contains important information for safe use and operation of this machine.
Failure to read this manual before starting up, adjusting or carrying out maintenance operations on this
machine may cause damage to persons and/or things. The operator must be trained to use the machine before
starting it up. Keep this manual for future reference. For new manuals, apply to:
Janser GmbH - Maschinen- und Gerätebau
Böblinger Straße 91 - D-71139 Ehningen
Tel. 07034 / 127-0 - Telefax 07034 / 8838
http:// www.janser.com Email: service@janser.com
Advertisement
Table of Contents
Related Manuals for Janser Jaguar
Summary of Contents for Janser Jaguar
- Page 1 USE AND MAINTENANCE MANUAL FOR THE JAGUAR MACHINE This manual contains important information for safe use and operation of this machine. Failure to read this manual before starting up, adjusting or carrying out maintenance operations on this machine may cause damage to persons and/or things. The operator must be trained to use the machine before starting it up.
-
Page 2: Table Of Contents
ED 98 DRUM SANDER FOR WOODEN FLOORS PG. 2/19 INDEX Storing........................………………. Carrying and handling of the machine ................………. one person....................………. two people....................………. Starting:........................……………. Instruction for assembling after transportation............…. Instructions for electrical connection..............…. wires, extensions, plugs................... instruction for removal of sawdust caused by working..………………………. Instructions for operator safety:..........……………………………………. -
Page 3: Storing
DANGER Failure to read the JAGUAR machine manual before starting up, adjusting or carrying out maintenance operations on the machine itself may cause injury to people and/or damage to things. The operator must be trained to use the machine before starting it up. -
Page 4: Carrying And Handling Of The Machine
ED 98 DRUM SANDER FOR WOODEN FLOORS PG. 4/19 CARRYING THE MACHINE WARNING: Since the machine is heavy, ask for help in lifting it. MOVEMENT WITH ONE PERSON In order to make movement easier, the machine can be dismantled into two parts: •... - Page 5 ED 98 DRUM SANDER FOR WOODEN FLOORS PG. 5/19 INSTRUCTION MANUAL...
- Page 6 ED 98 DRUM SANDER FOR WOODEN FLOORS PG. 6/19 INSTRUCTION MANUAL...
-
Page 7: Starting
ED 98 DRUM SANDER FOR WOODEN FLOORS PG. 7/19 SETTING THE MACHINE UP INSTRUCTIONS FOR ASSEMBLING AFTER TRANSPORTATION In order to start up the machine, proceed as follows: Fit the tube in place and tighten the handle pos. 5 fig. A Put the bar pos. -
Page 8: Wires, Extensions, Plugs
For Europe, the power supply cable must be of HAR approved type, namely HO5VV-3x2.5 mm 2 , and the plug must be of the 2P+T16A-250V approved type. For non-European versions, consult an authorized JANSER distributor. INSTRUCTIONS FOR REMOVAL OF SAWDUST ORIGINATED BY WORKING... -
Page 9: Instructions For Operator Safety
ED 98 DRUM SANDER FOR WOODEN FLOORS PG. 9/19 ADVICES ON PREVENTIVE MEASURES FOR USERS INDIVIDUALS PROTECTIVE MEASURES Clouds of sanding dust may form and be breathed in while the sanding WARNING: machine is being used. Always wear a dust mask when using the machine for sanding. - Page 10 Make sure that all the plates, transfer printings, warnings, cautions and instructions are fixed to the machine. New plates may be obtained by your authorized JANSER retailer. Injuries or damages may occur if maintenance and repairs are carried out by CAUTION: unauthorized staff.
-
Page 11: Instruction For Correct Usage Of Machines
ED 98 DRUM SANDER FOR WOODEN FLOORS PG. 11/19 INSTRUCTIONS FOR A PROPER USE OF THE MACHINE The following information highlights potentially dangerous conditions for the operator and/or machine. Read this manual carefully in order to become familiar with the machine. Learn to know when these conditions may occur. -
Page 12: Machine Characteristics
ED 98 DRUM SANDER FOR WOODEN FLOORS PG. 12/19 MACHINE CHARACTERISTICS ABRASIVE DIMENSION FOR DRUM: 203 x 480 mm RING ROLLER WIDTH 200 mm ROLLER DIAMETER 150 mm ROLLER SPEED 2700 RPM MOTOR ( A43 ) EUROPEAN AND UK 230V-∼ 50 Hz 1,5 kW ( A45 ) USA 240V ∼... -
Page 13: Indications Concerning The Machine
ED 98 DRUM SANDER FOR WOODEN FLOORS PG. 13/19 INDICATIONS CONCERNING THE MACHINE NON-ALLOWED USAGE Injuries or damages may occur if the machine is used to move other objects WARNING: or if it is moved on a slope. The machine must be used exclusively for sanding dry wooden floors which are flat or have a maximum slope of 2%. -
Page 14: Compliance Declaration
ED 98 DRUM SANDER FOR WOODEN FLOORS PG. 14/19 EC DECLARATION OF CONFORMITY 73/23CEE, 89/392/CEE, 91/368/CEE 89/336/CEE, 92/31/CEE, 93/44/CEE 93/68/CEE Janser GmbH Maschinen- und Gerätebau Böblinger Straße 91 71139 Ehningen GERMANY declare under our responsibility that the product DRUM SANDER... -
Page 15: Adjustment Procedure
ED 98 DRUM SANDER FOR WOODEN FLOORS PG. 15/19 PROCEDURES FOR SETTING UP THE MACHINE ADJUSTMENT OF SANDING PRESSURE In order to change the pressure of the roller on the floor, adjust hand wheel pos. 3 fig. B as follows: By turning the hand wheel clockwise, the roller pressure on the floor increases. -
Page 16: Wall Edge Wheel
PROCEDURES FOR THE SETTING OF THE ABRASIVE JAGUAR EXPANSION ( centrifugal drum ) Wrap the abrasive pos. 2 Fig. C around the drum pos. 1, making sure that the abrasive sticks out about 1.5 mm from the drum itself. -
Page 17: Routine Maintenance
5000 hours SPARE PARTS Always use original JANSER spare parts. The guarantee and consequent responsibility are forfeited if non-original JANSER spare parts are used, and if repairs and adjustments are carried out by unuthorized personnel. INSTRUCTION MANUAL...
