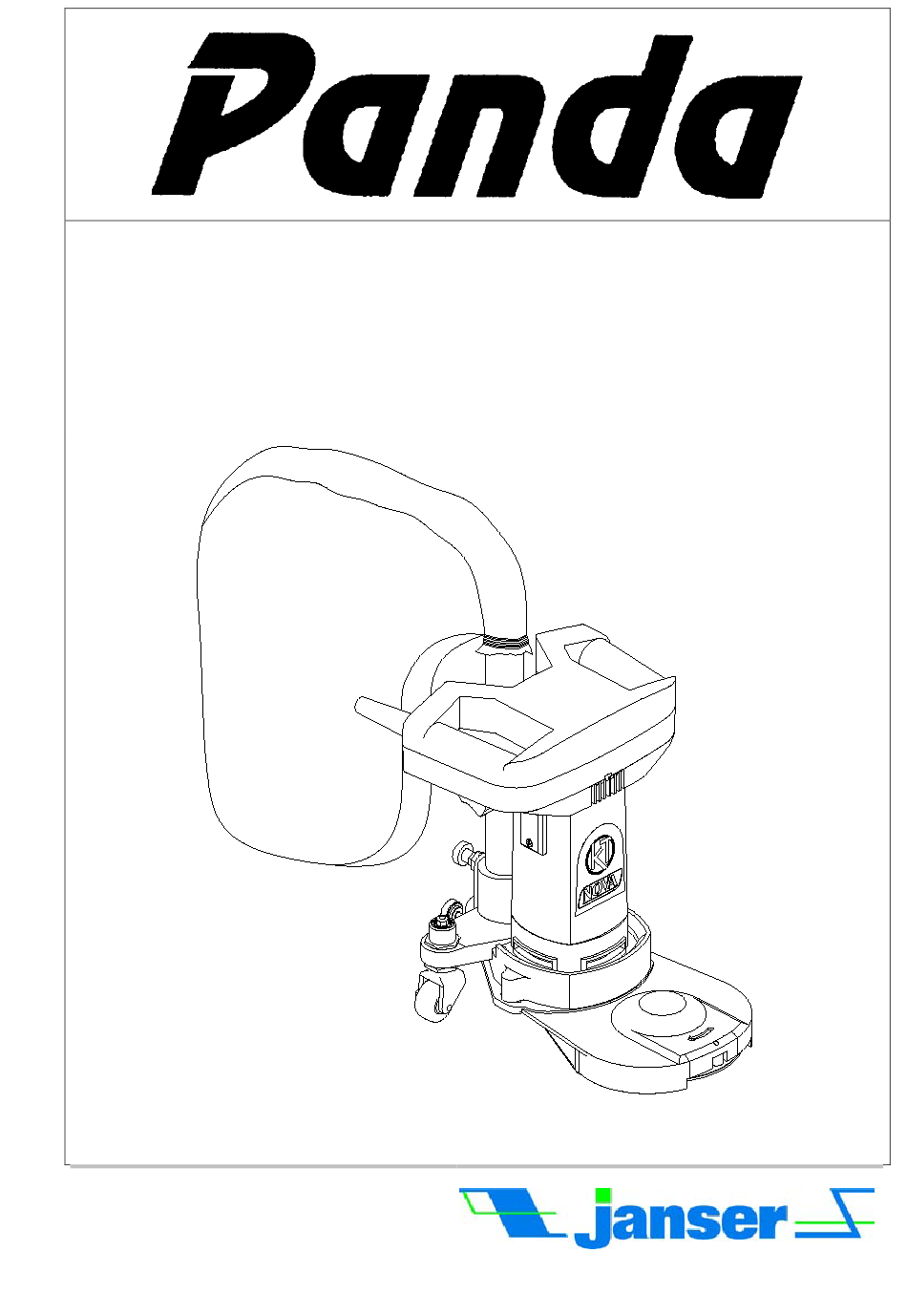

USE AND MAINTENANCE MANUAL FOR THE PANDA MACHINE
This manual contains important information for safe use and operation of this machine.
Failure to read this manual before starting up, adjusting or carrying out maintenance operations on this
machine may cause damage to persons and/or things. The operator must be trained to use the machine
before starting it up. Keep this manual for future reference. For new manuals, apply to:
Maschinen- und Gerätebau ž ž ž ž Böblinger Straße 91 ž ž ž ž D-71139 Ehningen
Janser GmbH - Maschinen- und Gerätebau
Böblinger Straße 91 - D-71139 Ehningen
Tel. 07034 / 127-0 - Telefax 07034 / 8838
http:// www.janser.com Email: service@janser.com
Max Janser
GERMANY
Advertisement
Related Manuals for Janser Panda
Summary of Contents for Janser Panda
- Page 1 USE AND MAINTENANCE MANUAL FOR THE PANDA MACHINE This manual contains important information for safe use and operation of this machine. Failure to read this manual before starting up, adjusting or carrying out maintenance operations on this machine may cause damage to persons and/or things. The operator must be trained to use the machine before starting it up.
- Page 2 SANDER FOR WOODEN FLOORS ED 98 Panda PG 2/15 INDEX Storing Carrying and handling of the machine Starting Instructions for electrical connection wires, extensions, plugs instruction for removal of sawdust caused by working Instructions for operator safety individual protective measures...
-
Page 3: Carrying The Machine
CAUTION warnings found on this machine or in this manual DANGER Failure to read the PANDA machine manual before starting up, adjusting or carrying out maintenance operations on the machine itself may cause injury to people and/or damage to things. - Page 4 SANDER FOR WOODEN FLOORS ED 98 Panda PG 4/15 _______________________________________________________________________________________________ INSTRUCTION MANUAL...
-
Page 5: Instructions For Electrical Connection
Only use approved two-conductors cables. For Europe, the power supply cable must be of HAR approved type, namely HO5VV-F2x1.5 mm 2 , and the plug must be of the 2P16A-250V approved type. For non-European versions, consult an authorized JANSER distributor. _______________________________________________________________________________________________ INSTRUCTION MANUAL... - Page 6 SANDER FOR WOODEN FLOORS ED 98 Panda PG 6/15 INSTRUCTIONS FOR REMOVAL OF SAWDUST ORIGINATED BY WORKING WARNING: Clouds of sanding dust may form and be breathed in while the sanding machine is being used. Always wear a dust mask when using the machine for sanding.
- Page 7 SANDER FOR WOODEN FLOORS ED 98 Panda PG 7/15 RESPECT OF PROTECTIONS AND DANGER SIGNALS DANGER: Use of the machine before it is completely assembled may cause injuries to people and/or damage to things. Do not use a machine which is not completely assembled.
- Page 8 Make sure that all the plates, transfer printings, warnings, cautions and instructions are fixed to the machine. New plates may be obtained by your authorized JANSER retailer. CAUTION: Injuries or damages may occur if maintenance and repairs are carried out by unauthorized staff.
-
Page 9: Machine Characteristics
SANDER FOR WOODEN FLOORS ED 98 Panda PG 9/15 MACHINE CHARACTERISTICS ABRASIVE DISK DIMENSIONS Ø 150 mm DISK DIAMETER Ø 150 mm DISK SPEED 3200 giri/min MOTOR SPEED 14000 giri/min MOTOR (A40 ) EUROPEAN 230V-240V~ 50 Hz 1150 W DISK INCLINATION CONTROL... - Page 10 SANDER FOR WOODEN FLOORS ED 98 Panda PG 10/15 HOW TO START UP THE MACHINE In order to start up the machine, proceed as follows: 1. Familiarise yourself with the machine and read all the danger, warning and caution instructions.
- Page 11 Böblinger Straße 91 ž D-71139 Ehningen GERMANY declare under our responsibility that the product PANDA EDGER to which this declaration relates is in conformity with the following standards or other normative document(s): Safety of machinery - Basic concepts, general principles for design •...
- Page 12 SANDER FOR WOODEN FLOORS ED 98 Panda PG 12/15 PROCEDURES FOR SETTING UP THE MACHINE ADJUSTMENT OF THE WORK SURFACE ON THE FLOOR For the plate to work at its best, its axis must slightly slope with respect to the floor.
-
Page 13: Belt Tensioning
SANDER FOR WOODEN FLOORS ED 98 Panda PG 13/15 PERIODICAL ROUTINE MAINTENANCE In order to keep the machine in good working condition, it is necessary to maintain the following items periodically: BELT TENSIONING By means of a screwdriver, remove screws (3 of them) that fix the belt protective guard to the basement Pos. - Page 14 10,000 hours of operation. SPARE PARTS Always use original JANSER spare parts. The guarantee and consequent responsibility are forfeited if non-original JANSER spare parts are used, and if repairs and adjustments are carried out by unauthorized personnel. _______________________________________________________________________________________________...
