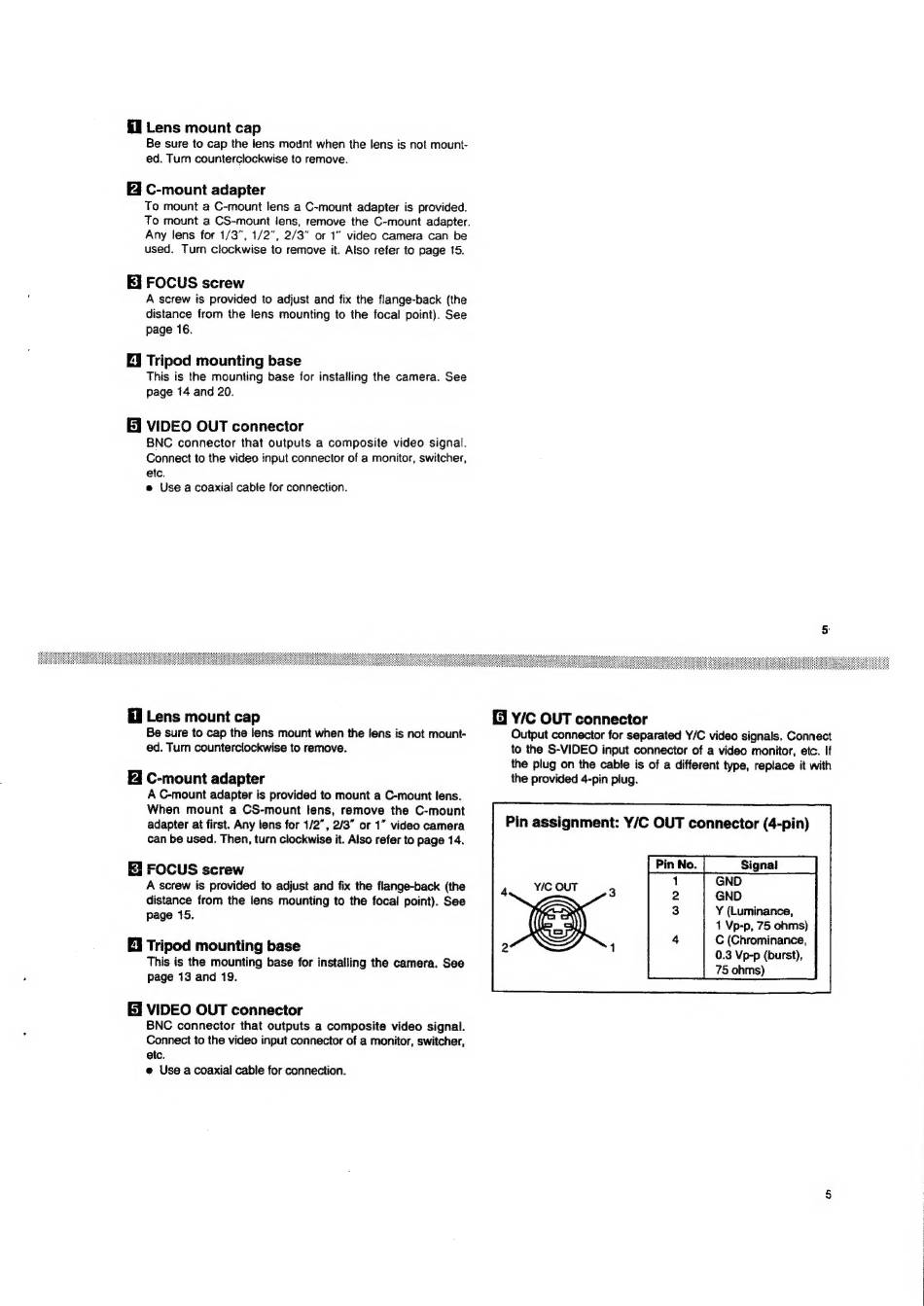

JVC TK-1280E Service Manual page 7

Lens mount cap
Be sure to cap the lens mount when the fens is not mount-
ed. Turn counterclockwise to remove.
C-mount adapter
To mount a C-mount lens a C-mount adapter is provided.
To mount a CS-mount lens, remove the C-mount adapter.
Any lens for 1/3", 1/2", 2/3" or 1" video camera can be
used. Turn clockwise to remove it. Also refer to page 15.
Ei FOCUS screw
A screw is provided to adjust and fix the flange-back (the
distance from the lens mounting to the focal point). See
page 16.
£4 Tripod mounting base
This is the mounting base for installing the camera. See
page 14 and 20.
EJ VIDEO OUT connector
BNC connector that outputs a composite video signal.
Connect to the video input connector of a monitor, switcher,
etc.
e@ Use a coaxial cable for connection.
Lens mount cap
Be sure to cap the lens mount when the lens is not mount-
ed. Turn counterclockwise to remove.
C-mount adapter
A C-mount adapter is provided to mount a C-mount lens.
When mount a CS-mount lens, remove the C-mount
adapter at first. Any lens for 1/2", 2/3" or 1" video camera
can be used. Then, turn clockwise it. Also refer to page 14.
FOCUS screw
A screw is provided to adjust and fix the flange-back (the
distance from the lens mounting to the focal point). See
page 15.
E3 Tripod mounting base
This is the mounting base for installing the camera. See
page 13 and 19.
VIDEO OUT connector
BNC connector that outputs a composite video signal.
Connect to the video input connector of a monitor, switcher,
ete.
e Use a coaxial cable for connection.
{@ Y/c OUT connector
Output connector for separated Y/C video signals. Connect
to the S-VIDEO input connector of a video monitor, etc. If
the plug on the cable is of a different type, replace it with
the provided 4-pin plug.
Pin assignment: Y/C OUT connector (4-pin)
| PinNo.| Signal
GND
Y/C OUT GND
Y (Luminance,
1 Vp-p, 75 ohms)
C (Chrominance,
0.3 Vp-p (burst),
75 ohms)
