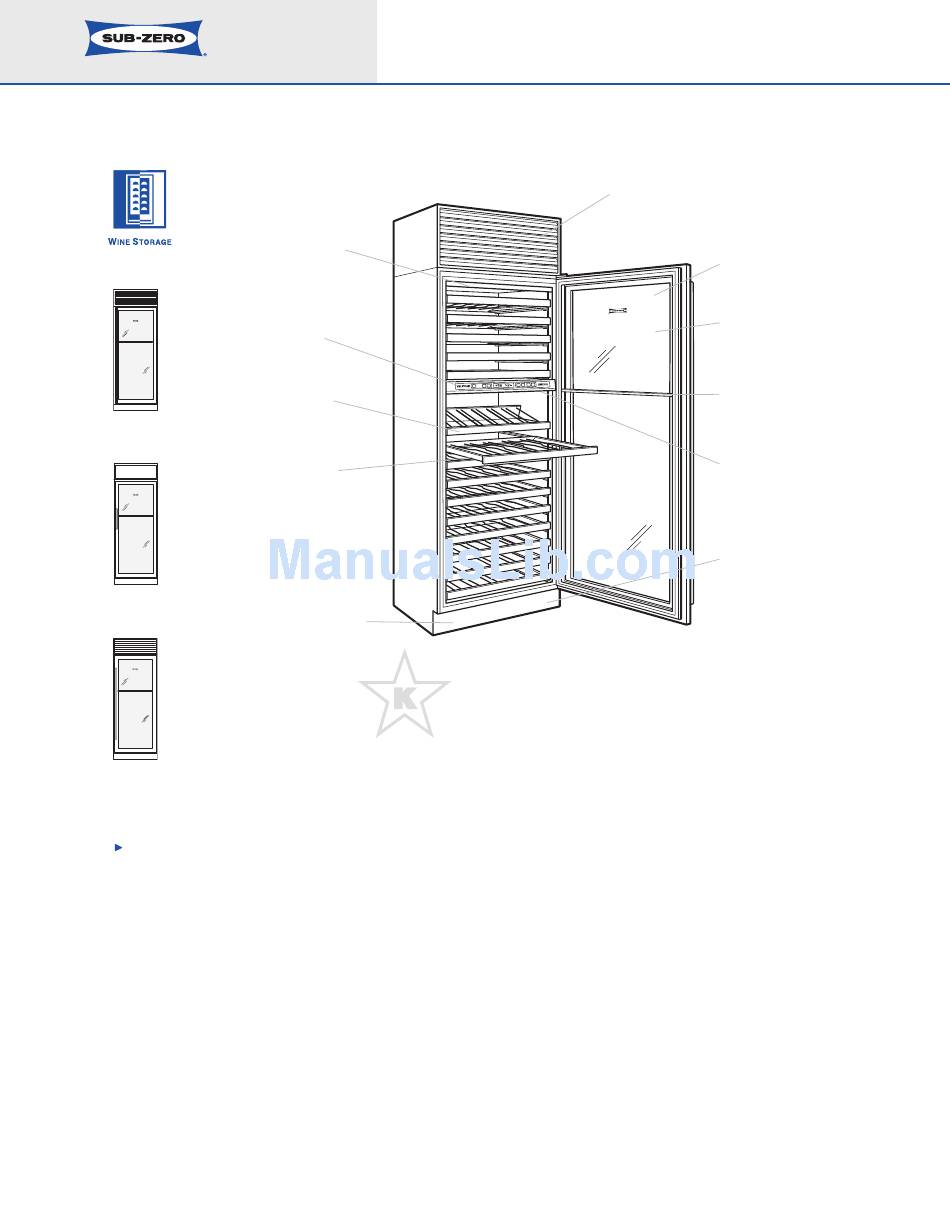

Planning Information
Wine Storage Model 430
Full-Size
Discreet lighting
Lighted electronic
control panel
Lighted display
shelf
Model 430/F
Framed
Roller-assembly
shelves
Model 430/O
Overlay
Home security tie-in
Model 430/S
Classic
Stainless Steel
The Sub-Zero Model 430 Wine
Storage unit is available in your choice
of the framed, overlay or classic stain-
less steel design application. A unit with
high altitude glass may be ordered for
installations at or above 5,000' (1524 m)
in elevation.
Dimensions in parentheses are in
millimeters unless otherwise specified.
11/06
With the installation of a harness kit, these appliances
are Star-K compliant to meet strict religious regulations
in conjunction with specific instructions found on
star-k.org. You may purchase this harness kit through
your Sub-Zero dealer. To obtain local dealer information,
visit the Locator section of our website, subzero.com.
A
great addition to Sub-Zero's complete line of
residential refrigeration is the Wine Storage equipment.
But it is more than just wine storage in the conven-
tional sense. It is wine storage as only Sub-Zero could
make it. The ultimate in beauty, engineering, attention
to detail and smart thinking.
For the clients who cannot have a wine cellar within
their homes, consider using one or more of these units
together. One for white wines and the other for the
special reds.
It's the biggest unit we offer with nearly 12 cases of
wine at your fingertips.
Hermetically sealed refrigera-
tion units
Full-view glass
door
UV-resistant glass
Divider gasket
Serial and model
number plate
Removable
kickplate
1
Advertisement
Table of Contents
Related Manuals for Sub-Zero Sub-Zero 430
Summary of Contents for Sub-Zero Sub-Zero 430
- Page 1 Planning Information Wine Storage Model 430 Full-Size Discreet lighting Lighted electronic control panel Lighted display shelf Model 430/F Framed Roller-assembly shelves Model 430/O Overlay Home security tie-in Model 430/S Classic Stainless Steel The Sub-Zero Model 430 Wine Storage unit is available in your choice of the framed, overlay or classic stain- less steel design application.
- Page 2 Planning Information Wine Storage Model 430 F E A T U R E S Full-size Wine Storage unit with 147 (750 ml) bottle capacity Framed, overlay and classic stainless steel design options Refrigeration system allows individual temperature control of the two wine compartments and ideal humidity Illuminated display shelf for those prize bottles...
- Page 3 Planning Information Wine Storage Model 430 M O D E L O P T I O N S Framed Design 430__/F Overlay Design 430__/O Classic Stainless Steel 430__/S D O O R O P T I O N S Full-View Glass Door 430G/__ High Altitude Glass Door 430HAG/__ You must allow 90 days from order to...
- Page 4 Planning Information Wine Storage Model 430 I N S T A L L A T I O N S P E C I F I C A T I O N S " (2127) ROUGH OPENING HEIGHT TO FINISHED FLOORING WITH STANDARD 11"...
- Page 5 Planning Information Wine Storage Model 430 I N S T A L L A T I O N N O T E S Refer to the illustrations and specifications for overall dimensions, finished rough opening dimensions and installation specifics. The Wine Storage unit must be installed to open a minimum of 90˚...
- Page 6 Planning Information Wine Storage Model 430 Framed Door and Grille Panels Dimensions in parentheses are in millimeters unless otherwise specified. I N T E G R A T I N G C A B I N E T R Y Unless you are installing a stainless steel unit, you will need to provide a door panel frame for the glass door.
- Page 7 Planning Information Wine Storage Model 430 F R A M E D P A N E L S " Trim Reveal (6) min " Rout to thickness Door " Frame (57) Rail/Stile " Glass (16) Raised panel " (16) thick minimum A solid panel must not be installed on a glass door unit, as this may cause moisture to form...
- Page 8 Planning Information Wine Storage Model 430 Overlay Door and Grille Panels Overlay Panel Spacer Panel " (16) Backer Panel .10" " Three panel assembly – rear view Dimensions in parentheses are in millimeters unless otherwise specified. O V E R L A Y P A N E L S Refer to page 9 for detailed information on integrating cabinetry for the overlay panel application.
- Page 9 Planning Information Wine Storage Model 430 O V E R L A Y P A N E L S " Rail/Stile (57) .10" Spacer Panel .10" Overlay Panel " Backer Panel " Door Frame Glass " Door/Grille " Trim Three panel assembly – cross section Overlay Panel Spacer Panel "...
- Page 10 Planning Information Wine Storage Model 430 S I D E P A N E L S " (337) " " (606) BEHIND FRAME " 3" ( 76 ) 4" (102) 3" (76) Cut-outs for grille and toe kick area Dimensions in parentheses are in millimeters unless otherwise specified.
- Page 11 Planning Information Wine Storage Model 430 When planning for hardware, please refer to the Door Frame Profile full-scale illustration on the following page to give you a better understanding of the unit's frame and positioning of the glass for the door. You must not drill through the glass.
- Page 12 Planning Information Wine Storage Model 430 W I N E S T O R A G E D O O R F R A M E The full-scale illustration above is typical of the Model 424 door frame profile, details of the other Wine Storage door frames will vary slightly.
- Page 13 Planning Information Wine Storage Model 430 W I N E S H E L F W O O D F A C I N G " WIDTH (624) FRONT VIEW Dimensions in parentheses are in millimeters unless otherwise specified. " Maximum Thickness (16) "...
