  • Page 1 Wine Storage Models 427G and 427RG Design Guide...

  • Page 2: Table Of Contents

    Contents Wine Storage Features and specifications are subject to change at any time without notice. Visit subzero.com/specs for the most Specifications up-to-date information. Custom Panels Throughout this guide, dimensions may IMPORTANT NOTE: Full-Scale Template vary by ± " . Dimensions in parentheses are millimeters unless otherwise specified.

  • Page 3: Wine Storage

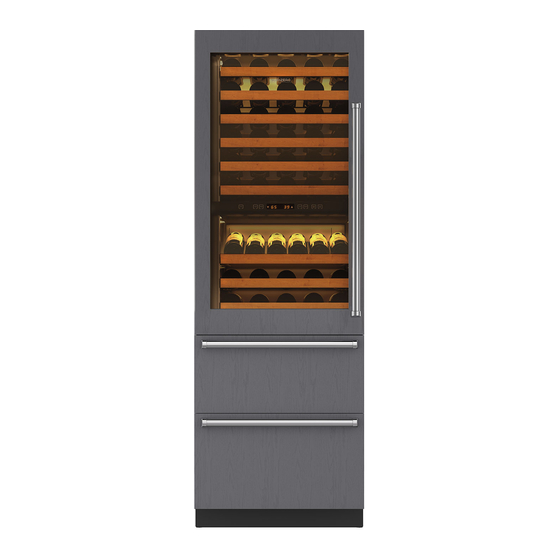

    WINE STORAGE Wine Storage MODELS 427G AND 427RG Wine finds a well-deserved place of honor in a Sub-Zero wine storage unit. Every detail is designed to ensure better wine preservation. Cherrywood-faced racks, soft lighting, custom cabinetry if desired—Sub-Zero helps make a wine collection an element of beauty in the home.

  • Page 4: Specifications

    DIMENSIONS WILL VARY WITH PANEL THICKNESS Overall dimensions do not include panels or handles. SPECIFICATIONS Dimensions will vary with panel thickness. STORAGE CAPACITY R CU FT BOTTLES (750 ML) 427G 427RG (150) SHIPPING WEIGHT (KG) 427G (179) 427RG (186) Sub-Zero Customer Care 800.222.7820...
  • Page 5 2" filler strip (51) is required between units. Dual installation kits are available through an authorized Sub-Zero dealer. For local dealer information, visit the find a OPENING OPENING WIDTH showroom section of our website, subzero.com. For ques- HEIGHT tions regarding the installation, call Sub-Zero customer care at 800-222-7820.

  • Page 6: Custom Panels

    427RG, drawer panels will attach using mounting brackets (914) supplied with the unit. Refer to the panel requirements chart For models 427G and 427RG, it is IMPORTANT NOTE: below and integrated panel dimensions on the following critical the electrical outlet be positioned with the grounding page.
  • Page 7 Stainless steel (345) tubular and pro handles are avail able through an authorized Sub-Zero dealer. For local dealer information, visit the find a " (424) showroom section of our website, subzero.com.
  • Page 8 (102) MAX HEIGHT HINGE MINIMUM HEIGHT 4" 9" 25" (102) TO (229) (635) TO WALL FROM FLOOR TYPICAL INTEGRATED UNIT HEIGHT OF DOOR (SIDE VIEW) PANEL " 4" (67) TO (102) Upper valance—side view. Toe kick—side view. Sub-Zero Customer Care 800.222.7820...
  • Page 9 WINE STORAGE Standard Handles Optional stainless steel tubular and pro handles are avail- able through an authorized Sub-Zero dealer. For local dealer information, visit the find a showroom section of our website, subzero.com. Refer to the chart below for standard handle lengths for models 427G and 427RG.

  • Page 10: Full-Scale Template

    Sub-Zero, Sub-Zero & Design, Dual Refrigeration, The Living Kitchen, Great American Kitchens The Fine Art of Kitchen Design, and Ingredients are registered trademarks and service marks of Sub-Zero, Inc. Wolf, Wolf & Design, Wolf Gourmet, W & Design and the color red as applied to knobs are registered trademarks and service marks of Wolf Appliance, Inc.

  • Page 11: Warranty

    FULL TWO YEAR WARRANTY* For two years from the date of original installation, this Sub-Zero product warranty covers all parts and labor to repair or replace, under normal residential use, any part of the product that proves to be defec- tive in materials or workmanship.
  • Page 12 SUB-ZERO, INC. P.O. BOX 44848 MADISON, WI 53744 SUBZERO.COM 800.222.7820 SZ427DG 2 / 2015...

This manual is also suitable for:

427rg
