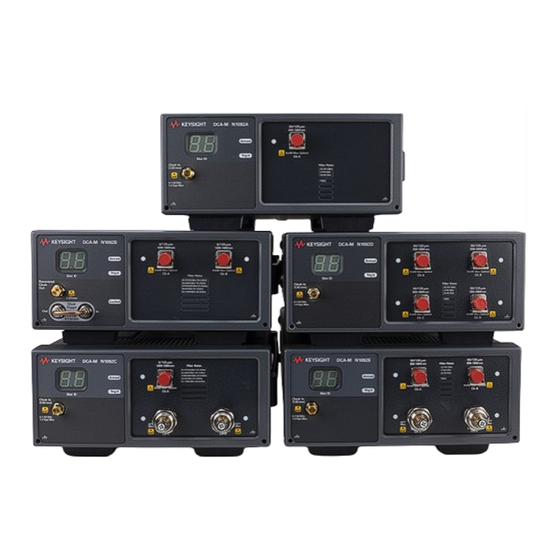

N109X-Series DCA-M
Sampling Oscilloscopes
This document describes installation steps, environmental requirements, and safety.
USER'S GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the N109 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Keysight N109 Series

Summary of Contents for Keysight N109 Series

  • Page 1 N109X-Series DCA-M Sampling Oscilloscopes This document describes installation steps, environmental requirements, and safety. USER'S GUIDE...
  • Page 2 Copyright Notice in writing elsewhere in the EULA. furnished under a license and may © Keysight Technologies 2019- Keysight shall be under no be used or copied only in 2023 obligation to update, revise or accordance with the terms of such otherwise modify the Software.

  • Page 3: Table Of Contents

    Rear Panel Options Supplied Accessories Safety Information N109x-Series DCA-M Regulatory Information Environmental Specifications Instrument Markings Contacting Keysight Returning the Instrument for Service Installation and Care PC Requirements Safety Notices for Installations To Install the DCA-M Static-Safe Workstation Cleaning the Fiber-Optic Connectors...
  • Page 4 Contents Using the Interactive SCPI Command Tree FlexDCA Configurations Finding the VISA Address for HiSLIP Example Programs Index N109X-Series User's Guide...

  • Page 5: Introduction

    Instrument Markings Contacting Keysight Returning the Instrument for Service The Keysight Technologies N109X-series DCA-M sampling oscilloscopes combine the high-performance elements of both the DCA-X oscilloscope mainframe acquisition system and the hardware of a receiver plug-in module. The N1010A FlexDCA application provides both the Graphical User Interface (GUI) as well as programming interface either on a PC or on a DCA-X (N1000A or 86100D).
  • Page 6 1 Introduction Figure 1. USB Connections to PC or N1000A (or 86100D) With a DCA-M, you can perform eye-mask tests, measure eye diagram parameters including extinction ratio, and basic oscilloscope mode measurements of pulses (single-valued waveforms rather than eye diagrams). This is limited to patterns less than 2 ns in duration.
  • Page 7 1 Introduction Table 1. DCA-M Channels Compared Channel Count Minimum FlexDCA Model Optical Electrical Firmware Version N1094B A.05.50 N1094A A.05.50 N1092E A.05.50 N1092D A.05.40 N1092C A.05.50 N1092B A.05.40 N1092A A.05.40 N1090A-EEC A.05.00 N1090A A.05.00 N109X-Series User's Guide...
  • Page 8 4 Pattern lock off. Provided that the data rate exceeds 500 Mb/s and the clock divide ratio is a power of two. 5 < 500 mVp-p recommended. To avoid damaging front-panel fiber-optic connectors, use proper connection techniques. Refer to Cleaning the Fiber-Optic Connectors on page 49. The N1010A FlexDCA interface is free and can be downloaded at "www.keysight.com/find/flexdca_download". N109X-Series User's Guide...

  • Page 9: N1090A

    1 Introduction N1090A The N1090A sampling oscilloscope has one optical channel input and, if option EEC is installed, an electrical channel input. Refer to Options on page 21 Supplied Accessories on page 25 for tables of available options and accessories. The N1090A can perform the following tasks: Eye-mask mode tests and measuring eye diagram parameters including extinction ratio.
  • Page 10 1 Introduction Figure 2. N1090A Front Panel N109X-Series User's Guide...

  • Page 11: N1092A/B/C/D/E

    1 Introduction N1092A/B/C/D/E The N1092A/B/C/D/E sampling oscilloscopes provide 1, 2, or 4 optical channels respectively. If option PLK is installed, you can lock data acquisition on a pattern trigger. Refer to Options on page 21 Supplied Accessories on page 25 for tables of available options and accessories. The N1092A/B/D/E can perform the following tasks: Eye-mask mode tests and measuring eye diagram parameters including extinction ratio.
  • Page 12 1 Introduction N1092A Front Panel Figure 3. N1092A Front Panel N1092A Option CDR Front Panel Figure 4. N1092A Option CDR Front Panel N109X-Series User's Guide...
  • Page 13 1 Introduction N1092B Front Panel Figure 5. N1092B Front Panel N1092B Option CDR Front Panel Figure 6. N1092B Option CDR Front Panel N109X-Series User's Guide...
  • Page 14 1 Introduction N1092C Front Panel Figure 7. N1092C Front Panel N1092D Front Panel Figure 8. N1092D Front Panel N109X-Series User's Guide...
  • Page 15 1 Introduction N1092E Front Panel Figure 9. N1092E Front Panel N109X-Series User's Guide...

  • Page 16: N1094A/B

    1 Introduction N1094A/B The N1094A/B sampling oscilloscopes provide 2 or 4 electrical channels. If option PLK is installed, you can lock data acquisition on a pattern trigger. Refer Options on page 21 Supplied Accessories on page 25 for tables of available options and accessories. The N1094A/B can perform the following tasks: Eye-mask mode tests and measuring eye diagram parameters including extinction ratio.
  • Page 17 1 Introduction N1094A Front Panel Figure 10. N1094A Front Panel N1094B Front Panel Figure 11. N1094B Front Panel N109X-Series User's Guide...

  • Page 18: Front-Panel Indicator Lights

    1 Introduction Front-Panel Indicator Lights Table 3. DCA-M Front-Panel Indicator Lights Indicator Description Displays the FlexDCA extended module slot where the DCA-M is installed. The number indicates the slot, which in this picture would indicate slot 6 resulting in channel 6A, 6B, and so forth.

  • Page 19: Rear Panel

    1 Introduction Rear Panel Figure 12. Rear Panel N109X-Series User's Guide...
  • Page 20 1 Introduction N109X-Series User's Guide...

  • Page 21: Options

    1 Introduction Options Table 4. N1090A Options Model/option number Description N1090A-140 Reference receiver filters for 1.244/1.25/1.229 Gb/s N1090A-160 Reference receiver filters for 2.458/2.488/2.5 Gb/s N1090A-180 Reference receiver filters for 3.072/3.125 Gb/s N1090A-200 Reference receiver filters for 8.5/9.95/10.3/10.5/10.66/10.71/11.1/11.3 Gb/s N1090A-204 Reference receiver filters for 8.5/9.95/10.3/10.5 Gb/s N1090A-EEC Enable electrical channel N1090A-PLK...
  • Page 22 1 Introduction N1092x-STB Standard timebase N1092x-PLK Pattern lock capability N1092x-FS1 Fast sampling rate N1092x-200 Enhanced jitter analysis software, fixed perpetual license N1092x-201 Advanced waveform analysis software, fixed perpetual license N1092x-300 Advanced amplitude analysis/Rin/Q-Factor, fixed perpetual license N1092x-401 Advanced eye analysis software, fixed perpetual license N1092x-500 Productivity package, fixed perpetual license N1092x-9FP...
  • Page 23 1 Introduction N1094x-401 Advanced eye analysis software, fixed perpetual license N1094x-500 Productivity package, fixed perpetual license N1094x-9FP PAM-N analysis software, fixed perpetual license N1094x-TFP IEEE TDECQ analysis, fixed perpetual license N1094x-PLK Pattern lock trigger hardware N1094x-EFP FlexEye independent channel acquisition and control N1094x-SIM InfiniiSim-DCA waveform transformation software, fixed perpetual license N1094x-C0C...
  • Page 24 1 Introduction Table 7. Available Rack Mount Options for all DCA-M Products Option Description Rack-mount kit for a single DCA-M Rack-mount kit for mounting any combination of two of the N109X-series DCA-M products. N109X-Series User's Guide...

  • Page 25: Supplied Accessories

    1 Introduction Supplied Accessories Table 8. Supplied Accessories Quantity Item N1090A N1092A N1092B N1092D N1094A N1094B USB cable, USB-A plug to right-angle USB-B plug (3m long) RF SMA 50-ohm cap (male) FC fiber-optic dust cap 1 3 with option 030 2 5 with option 030 N109X-Series User's Guide...

  • Page 26: Safety Information

    Intentional interruption is prohibited. To prevent electrical shock, disconnect the Keysight Technologies Model N109x-Series from mains before cleaning. Use a dry cloth or one slightly dampened with water to clean the external case parts.
  • Page 27 1 Introduction Safety of any system incorporating the equipment is the responsibility of the assembler of the system. The input terminals for this product are classified as Measurement Category None. Cleaning connectors with alcohol shall only be done with the instruments power cord removed, and in a well-ventilated area.

  • Page 28: N109X-Series Dca-M Regulatory Information

    Std. 61010-1 and with IEC 61010-1. The N1094A/B is in compliance with CAN/CSA-C22.2 No. 61010-1 and UL Std. 61010-1 and with IEC 61010-1. To find a current Declaration of Conformity for a specific Keysight product, go http://www.keysight.com/go/conformity COMPLIANCE WITH CANADIAN EMC REQUIREMENTS This ISM device complies with Canadian ICES-001.

  • Page 29: Environmental Specifications

    (4.34 inch x 8.64 inch x 21.68 inch) 1 Samples of this product have been type tested in accordance with the Keysight Environmental Test Manual and verified to be robust against the environmental stresses of Storage, Transportation and End-use; those stresses include but are not limited to temperature, humidity, shock, vibration, altitude and power line conditions.
  • Page 30 (4.34 inch x 8.64 inch x 21.68 inch) 1 Samples of this product have been type tested in accordance with the Keysight Environmental Test Manual and verified to be robust against the environmental stresses of Storage, Transportation and End-use; those stresses include but are not limited to temperature, humidity, shock, vibration, altitude, and power line conditions.
  • Page 31 1 Introduction Table 12. N1092A/B/C/D/E LINE Power Specifications Item Description Nominal voltage and/or range 100/120 Vac, 50/60/400 Hz 220/240 Vac, 50/60 Hz Power in Watts 290 Watts Maximum The products can operate with mains supply voltage fluctuations up to ± 10% of the nominal voltage. N109X-Series User's Guide...
  • Page 32 (4.34 inch x 8.64 inch x 21.68 inch) 1 Samples of this product have been type tested in accordance with the Keysight Environmental Test Manual and verified to be robust against the environmental stresses of Storage, Transportation and End-use; those stresses include but are not limited to temperature, humidity, shock, vibration, altitude and power line conditions.

  • Page 33: Instrument Markings

    1 Introduction Instrument Markings The following table lists the definitions of markings that may be on the instrument. Table 15. Instrument Markings Marking Description The instruction documentation symbol. The product is marked with this symbol when it is necessary for the user to refer to the instruction in the documentation This symbol marks the ON position of the power line switch.
  • Page 34 Universal recycling symbol. This symbol indicates compliance with the China standard GB 18455-2001 as required by the China RoHS regulations for paper- /fiberboard packaging. The Keysight email address is required by EU directives applicable to our product. N109X-Series User's Guide...

  • Page 35: Contacting Keysight

    If the instrument is no longer under warranty or is not covered by a maintenance plan, Keysight Technologies will notify you of the cost of the repair after examining the unit.
  • Page 36 3. Pack the instrument in the original shipping containers. Original materials are available through any Keysight Technologies office. Or, use the fol- lowing guidelines: Wrap the instrument in anti-static plastic to reduce the possibility of damage caused by electrostatic discharge.
  • Page 37 1 Introduction (antistatic) Air Cap to reduce static electricity. Wrapping the instrument several times in this material will protect the instrument and prevent it from moving in the carton. 4. Seal the carton with strong nylon adhesive tape. 5. Mark the carton "FRAGILE, HANDLE WITH CARE". 6.

  • Page 38: Installation And Care

    Figure 13. The USB cable is provided with the DCA-M. The PC is not provided by Keysight. The DCA-Ms are controlled either from FlexDCA (which is the DCA-X oscilloscope’s graphical user interface) or from the N1010A FlexDCA application on a PC. You can download N1010A FlexDCA from keysight.com/find/flexdca_download.
  • Page 39 2 Installation and Care Flex-on-Flex Connection Setup Figure 14 shows a setup that works for DCA-M #1 but does not work for DCA-M #2. This is known as a “Flex-on-Flex” connection, because, N1010A FlexDCA on the PC is connected to and controlling FlexDCA on the DCA-X. A Flex-on-Flex setup works great for standard DCA-X modules, but DCA-M modules can't be "seen"...

  • Page 40: Pc Requirements

    Solid State Drive The communication API between your system controller and the PC is SCPI over LAN, either VXI-11 or HiSlip. If you currently use NI-VISA or the Keysight IO Libraries to communicate with instruments via GPIB, the switch to SCPI/LAN is very simple.

  • Page 41: Safety Notices For Installations

    Use Keysight supplied power cord or one with same or better electrical rating. This instrument has auto-ranging line voltage input, be sure the supply voltage is within the specified range.

  • Page 42: To Install The Dca-M

    2 Installation and Care To Install the DCA-M Refer to Safety Notices for Installations on page 41 before performing the following installation steps. Procedure 1. Confirm that your site satisfies the LINE power requirements shown in the following tables. N109X-Series User's Guide...
  • Page 43 2 Installation and Care Table 18. N1090A LINE Power Specifications Item Description Nominal voltage and/or range 100/120 VAC, 50/60/400 Hz 220/240 VAC, 50/60 Hz Power in Watts 290 Watts Maximum The instrument can operate with mains supply voltage fluctuations up to ± 10% of the nominal voltage. Table 19.
  • Page 44 2 Installation and Care Figure 15. Connecting the LINE Cord 4. Connect the supplied USB cable to the DCA-M’s rear panel as shown in Fig- ure 16 on page 44. Connect the other end of the USB cable to the PC, N1000A, or 86100D, depending on the setup.
  • Page 45 2 Installation and Care If the DCA-M is connected to a PC and an N1000A or 86100D is not con- nected, slots 1 through 8 are available. If the DCA-M is connected to an N1000A or 86100D, slots 5 through 8 are available.

  • Page 46: Static-Safe Workstation

    2 Installation and Care Static-Safe Workstation Electrostatic discharge (ESD) can damage or destroy electronic components. All work on instruments and electronic components should be performed at a static-safe workstation as shown in Figure 18. The static-safe workstation uses two types of ESD protection: Conductive table-mat and wrist-strap combination.
  • Page 47 2 Installation and Care Only the table-mat and wrist-strap combination provides adequate ESD protection when used alone. To ensure your safety, the static-safe accessories must provide at least 1 MΩ of isolation from ground. Purchase acceptable ESD accessories from your local supplier. Electrical channel input circuits and the trigger input circuit can be damaged by electrostatic discharge (ESD).
  • Page 48 2 Installation and Care 6. Visually check that all ESD sensitive parts, assemblies, or products are com- pletely inside closed conductive containers. 7. Make sure that all shielding containers have an approved static attention label on the outside. 8. Make sure that all cleaners, solvents, coatings, and sprays used at your workstation are types approved by your ESD Coordinator.

  • Page 49: Cleaning The Fiber-Optic Connectors

    2 Installation and Care Cleaning the Fiber-Optic Connectors Keep all fiber-optic connectors clean using professional fiber-optic cleaning products. Many products are available and are easily located via an internet search on "fiber optic cleaning products". You can purchase tools designed specifically for the type of fiber-optic connector that you are using.
  • Page 50 Cleaning Optical Connections Keysight instrument fiber-optic input and output connectors often employ either lever adapters (for example on an N1090-series DCA-M) or screw-on universal adapters (for example on an 86105C). These adapters, when removed, have no fiber-optic parts and can be cleaned using the procedure in this topic.
  • Page 51 2 Installation and Care Figure 20. Removing the Receptacle to Expose the Fiber End 4. Clean the adapter with the foam swab. 5. Dry the inside of the adapter with a clean, dry, foam swab. 6. Blow through the adapter using filtered, dry, compressed air. Nitrogen gas or compressed dust remover can also be used.

  • Page 52: Using

    DCA-M (and DCA-X if connected) uses an independent trigger. The N1010A FlexDCA interface is free and can be downloaded at "www.keysight.com/find/flexdca_download". Remote programs previously developed for the DCA-X FlexDCA interface can be leveraged directly to control an N109X-series oscilloscope. Use FlexDCA's...

  • Page 53: To Setup The Oscilloscope

    3 Using To Setup the Oscilloscope This example shows an N1092D-series sampling oscilloscope. You can substitute any N109X-series oscilloscope. The input Clock In signal must be a synchronous clock or sub-rate clock. The N109X-series oscilloscope will trigger with any clock signal between 100 MHz and 32 GHz. In this procedure, the following assumptions are made for simplicity.
  • Page 54 3 Using Configure pattern lock (optional) The N109X-series oscilloscope must have option PLK. 8. Click Setup > Trigger Setup and select the Pattern Lock tab. In the Data Rate field, turn off Auto Detect and select 10.3125 GBd. 9. In the General Setup tab, click the Pattern Lock button. N109X-Series User's Guide...

  • Page 55: To Setup The Oscilloscope With Clock Recovery

    The maximum non-destruct amplitude of the clock input is 1.4 Vpp. To learn more about using the N1076/7A clock recovery DCA-M, download the N1076/7A user’s guide from www.keysight.com. In this procedure, the following assumptions are made for simplicity. You can change these parameters to any acceptable values.
  • Page 56 3 Using Figure 22. Typical Connection Setup Configure clock recovery 3. In FlexDCA, click Setup > Trigger Setup and select the General Trigger Setup tab. Confirm that the trigger Source is set to Front Panel. 4. Click Setup > Modules > (Slot 6): Clock Recovery. The dialog box shown Fig- ure 23 is displayed.
  • Page 57 3 Using Figure 23. Clock Recovery Setup Dialog Box Configure N109X-series oscilloscope 8. In FlexDCA’s signals palette, turn all channels off except for channel 5A. 9. Click Run. 10. Click Setup > Mode > Eye/Mask. 11. Click Auto Scale. 12. The N109X-series oscilloscope’s front-panel Trig’d light should be green. If not, confirm that the amplitude of the signal at channel 5A is not too low due to the “pass through”...
  • Page 58 3 Using 13. Click Setup > Trigger Setup and select the Pattern Lock tab. In the Data Rate field, turn off Auto Detect and select 10.3125 GBd. 14. In the General Setup tab, click the Pattern Lock button. N109X-Series User's Guide...

  • Page 59: Reference Clock

    3 Using Reference Clock Like a DCA-X, for proper display of the input signal the input Clock In signal must be a synchronous clock or sub-rate clock. The N109X-series oscilloscope will trigger with any clock signal between 100 MHz and 32 GHz. The clock input range for the N1090A is 455 MHz to 12 GHz, and the N1092 is 500 MHz to 28.5 GHz.
  • Page 60 3 Using Clock Input Con- 2.92 mm (female) nector Table 23. N1094A/B Clock Input Specifications Item Description Clock Input Non- 1.4 Vp-p destruct Voltage Clock Input Fre- 500 MHz to 32 GHz (full rate or sub-rate clocks, pattern lock mode on or off) quency 100 MHz to 500 MHz (sub-rate clocks only, pattern lock off, provided that the data rate exceeds 500 Mb/s and the clock divide ratio is a power of two)

  • Page 61: Pattern Lock

    3 Using Pattern Lock On N1092-series and N1094-series oscilloscopes, option PLK adds pattern lock capability. The following measurement features require pattern lock: Option 200 (Advanced Jitter Analysis) Option 201 (Advanced Waveform Analysis) Option 300 (Advanced Amplitude Analysis/RIN) Option SIM (InfiniiSim-DCA Waveform Transformation Toolset). N109X-Series User's Guide...

  • Page 62: Reference Filters

    3 Using Reference Filters The rates of all installed reference filters are listed on the front panel. These rates correspond to internal, calibrated reference filters that are selected as an instrument option at the time of order. These reference filters allow for optical transmitter compliance testing at the listed filter rates.

  • Page 63: Aligning Waveforms

    3 Using Aligning Waveforms Because a DCA-M’s acquisition system is independent of the DCA-X, if you are using multiple DCA-Ms or a DCA-M with DCA-X receiver modules, the input waveforms may not align after an Auto Scale. The waveforms will align If option 500, Productivity Package Software, is installed on the DCA-X or DCA-M and Rapid Eye is turned on.

  • Page 64: Cleaning The Fiber-Optic Connectors

    3 Using Cleaning the Fiber-Optic Connectors Keep all fiber-optic connectors clean using professional fiber-optic cleaning products. Many products are available and are easily located via an internet search on "fiber optic cleaning products". You can purchase tools designed specifically for the type of fiber-optic connector that you are using. Replacing a damaged fiber-optic connectors can cost thousands of dollars, not to mention lost time! This expense can be avoided by observing the important precautions described in this topic.
  • Page 65 Cleaning Optical Connections Keysight instrument fiber-optic input and output connectors often employ either lever adapters (for example on an N1090-series DCA-M) or screw-on universal adapters (for example on an 86105C). These adapters, when removed, have no fiber-optic parts and can be cleaned using the procedure in this topic.
  • Page 66 3 Using Figure 24. Removing the Receptacle to Expose the Fiber End 4. Clean the adapter with the foam swab. 5. Dry the inside of the adapter with a clean, dry, foam swab. 6. Blow through the adapter using filtered, dry, compressed air. Nitrogen gas or compressed dust remover can also be used.

  • Page 67: Programming

    N109X-Series DCA-M Sampling Oscilloscopes Programming Command Subsystems Unique to DCA-Ms Aligning Waveforms Precision Time Base Recommended Best Practices Using the SCPI Recorder Using the Interactive SCPI Command Tree FlexDCA Configurations Finding the VISA Address for HiSLIP Example Programs The N107X-series clock recovery DCA-Ms are remotely controlled using the SCPI commands that are documented in FlexDCA’s help system.
  • Page 68 4 Programming Figure 25. Controlling DCA-Ms from a PC Figure 26. Controlling DCA-Ms from a Remote PC N109X-Series User's Guide...

  • Page 69: Command Subsystems Unique To Dca-Ms

    4 Programming Command Subsystems Unique to DCA-Ms :EMODules (Extended Modules) Subsystem FlexDCA’s command subsystem is unique to DCA-M instruments :EMODules such as N107X-series clock recovery modules and N109X-series oscilloscopes. Use this subsystem to assign DCA-M modules to FlexDCA slots (1 through 8). On an DCA-X, only slots 5 through 8 are available.
  • Page 70 4 Programming :SLOT Subsystem FlexDCA’s SCPI command subsystem is unique to DCA-M instruments. :SLOT Use this subsystem to control the trigger setting of a DCA-M. Refer to Table N109X-series oscilloscopes with option PLK installed have the ability to pattern lock. Because these oscilloscopes use different internal hardware than the DCA-X, the subsystem is used rather than the subsystem for...

  • Page 71: Aligning Waveforms

    4 Programming Aligning Waveforms Because the acquisition system on N109X-Series DCA-M Oscilloscopes is independent of a DCA-X, if your are using multiple DCA-Ms or a DCA-M with 86100D receiver modules, the input waveforms may not align after an Auto Scale ( .

  • Page 72: Precision Time Base

    4 Programming Precision Time Base Because a DCA-M has different hardware than the DCA-X, N109X-series DCA- M oscilloscopes do not work with a Precision Time Base (PTB). However, an N109X-series DCA-M oscilloscope with option LOJ (Low Jitter Timebase) does provide PTB performance without the need for special commands. Therefore, the following FlexDCA commands do not work with DCA-M oscilloscopes: :CALibrate:FRAMe:PTIMebase:STARt :CALibrate:FRAMe:PTIMebase:STATus?

  • Page 73: Recommended Best Practices

    4 Programming Recommended Best Practices The following techniques explicitly set values for selecting an optical channel’s wavelength or filter rate. These methods are recommended for both DCA-M and DCA-X oscilloscopes. Optical wavelength selection commands :CHANnel:WAVelength To specify an input channel’s wavelength, it is recommended that you do not use the command.
  • Page 74 4 Programming This is because the definition of the filter argument can differ between modules and module options. For example, the argument can specify a different FILTer2 filter based on DCA-M oscilloscope or standard module and with different reference filter rate options. For example, it might be 8.5 Gb/s in one case and 9.953280 Gb/s in another.

  • Page 75: Using The Scpi Recorder

    4 Programming Using the SCPI Recorder FlexDCA’s SCPI recorder is a powerful tool that enables you to quickly discover, record, and learn about the commands needed to perform almost any task remotely. To open the SCPI recorder in FlexDCA, click Tools > SCPI ProgrammingTools >...
  • Page 76 4 Programming Click Play to play back your recording and observe the commands as they are executed. Playback always starts at the highlighted command, which is shown in a blue box as seen in the above figure. Click any command in the dialog box to highlight that command. Use Playback Speed to control the rate that the commands are played: Slow, Normal, or Fast.
  • Page 77 4 Programming You can use the Windows clipboard to copy your recorded commands. Click on a command to select it. Shift click to select a range of commands. Ctrl click to select non-adjacent commands. Ctrl-A selects all commands. Ctrl-C copies all selected commands.

  • Page 78: Using The Interactive Scpi Command Tree

    4 Programming Using the Interactive SCPI Command Tree FlexDCA’s SCPI Remote Command Tree Viewer lists all SCPI command subsystems and their commands. You can quickly traverse the tree and test the interaction between any command and FlexDCA. To open the SCPI recorder in FlexDCA, click Tools > SCPI Programming Tools > Interactive SCPI Command Tree.
  • Page 79 4 Programming Click the icon to open the help topic for the selected command. To learn about a command or subsystem, scroll down the command tree to locate the commands that interest you, such as the subsystem. Click on :SYSTem the expand button to view the available commands.

  • Page 80: Flexdca Configurations

    All of the examples shown in this section were written for Python 3.5 and were tested using the following environment: Windows 7 PC Keysight IO Libraries Suite installed for VISA (Virtual Instrument Software Architecture) library. Go to http://www.keysight.com/find/iosuite. Python 3.5. Anaconda Python distribution (Windows 32-bit) from Continuum Analytics installed using the graphical installer.
  • Page 81 4 Programming Figure 28. The Four Configurations N109X-Series User's Guide...
  • Page 82 4 Programming Configuration 1. Flex-on-Flex In this setup, the script runs on the PC and directly controls FlexDCA on the PC. Figure 29. Flex-on-Flex Setup Configuration 1, Flex-on-Flex on page 83 establishes a connection between the PC's FlexDCA and 86100D's FlexDCA using the commands in the :RDCA subsystem.
  • Page 83 4 Programming 2. Write down the computer name (for example, K-86100D-20108). Close the dialog box. 3. On the PC, start FlexDCA and click the menu commands Setup > DCA Con- nection Setup . In the dialog box, select LAN. In the Hostname field, enter the computer name that you located in step 2.
  • Page 84 4 Programming Configuration 2. FlexDCA Offline In this setup, N1010A FlexDCA is being used offline without a connection to an N1000A (or 86100D). Use this configuration to work with simulated or DCA-M modules. Figure 30. FlexDCA Offline Setup Configuration 2, FlexDCA Offline on page 84 establishes a connection to the N1010A FlexDCA application on the PC.
  • Page 85 4 Programming flex.close() print('\tFlexDCA connection closed.') N109X-Series User's Guide...
  • Page 86 4 Programming Configuration 3. Script on PC In this setup, the script runs on the PC and controls an N1000A (or, 86100D). Figure 31 shows that a DCA-M can be connected to the N1000A. Figure 31. Script on PC Setup Configuration 3, Script on PC on page 87 establishes a connection to the N1000A.
  • Page 87 4 Programming Configuration 3, Script on PC import visa # import VISA library rm = visa.ResourceManager() # Create an instance of PyVISA's ResourceManager flex=rm.open_resource('TCPIP0::K-86100D-20108::hislip0,4880::INSTR') flex.read_termination = '\n' s = flex.query('*IDN?') print('\n\tConnection established to:\n\t' + s) # Identify FlexDCA flex.write(':SYSTem:GTLocal') flex.close() print('\tConnection closed.') N109X-Series User's Guide...
  • Page 88 4 Programming Configuration 4. Script on DCA-X In this setup, the script runs on the N1000A (or 86100D). Configuration 4, Script on DCA-X on page 88 establishes a connection between the script on the DCA- X and FlexDCA. The VISA address is shown in in the following listing.

  • Page 89: Finding The Visa Address For Hislip

    4 Programming Finding the VISA Address for HiSLIP The VISA Address for the HiSLIP interface is easy to locate and is used to identify the LAN address between your program and FlexDCA. 1. On FlexDCA, click the menu commands Tools > SCPI Programming Tools. The SCPI Server Setup dialog box opens as shown below.

  • Page 90: Example Programs

    Python scripts in this book are relatively simple, so you should be able to convert them to 2.x is you prefer to work in Python 2.x. 1. Install Keysight IO Libraries Suite. Download the suite from http://www.key- sight.com/find/iosuite. 2. Go to https://www.anaconda.com/distribution/ and download and install the current Python 3 Anaconda distribution.
  • Page 91 4 Programming cd c:\ conda info pip install pyvisa 5. In Windows Start menu, locate the Anaconda 3 folder and start the Spyder IDE application. General Information on the Scripts print() statements The Python 3.x statement is used to provide messages on the script’s print() progress to the user.
  • Page 92 4 Programming Example 1. Identify all connected DCA-Ms and modules The following Python script discovers all DCA-M oscilloscopes, standard modules, and simulated modules and prints their model numbers to the console. The script uses the query to return the model :SYST:MODel? SLOT number of a standard or DCA-M module.
  • Page 93 4 Programming slot slots:         model = slots[slot] model simulated: #eg. 'DEM' is a key print('- Slot '+ str(slot) '+ simulated[model [0:3]]) elif model: # non-simulated module exists print('- Slot '+ str(slot) '+ model) # eg, N1092A rm = visa.ResourceManager() flex=rm.open_resource('TCPIP0::N1000A-108::hislip0,4880::INSTR') flex.read_termination = '\n' flex.timeout =...
  • Page 94 4 Programming Example 2. Re-assign a DCA-M to a different slot The script in DCA_M_reassign.py on page 94 moves an existing N109X-series oscilloscope from slot 5 to slot 8. The script in DCA_M_reorder.py on page 95 first disconnects any existing DCA-Ms and deletes any simulated modules. The script then connects up three DCA-Ms (dictionary values) in the desired slots (dictionary keys).
  • Page 95 4 Programming DCA_M_reorder.py import pyvisa visa # import VISA library dcam = {'5': '"N1092D-US56140205"', '6': '"N1076A-US56030001"'} remove_all_dcams(FlexDCA): """ Disconnects all DCA-M modules and removes any simulated modules. """ slot '12345678':         model = FlexDCA.query (':EMODules:SLOT'+slot+':SELection?') model ['DCAM', 'DEM', 'QEM', 'OEM', 'DOM']: 'CONN' FlexDCA.query (':EMODules:SLOT'+slot+':STATe?'):...
  • Page 96 4 Programming Example 3. Perform eye measurement with N109X & N1076/7A This Python example uses an N1076/7A clock recovery in slot 5 to provide a clock for an N109X-series DCA-M oscilloscope in slot 6. A bit-rate eye measurement is performed on channel 6A. The program performs the following tasks: Places FlexDCA to its default settings.
  • Page 97 4 Programming N109X_N1077A_on_PC.py import pyvisa visa # import VISA library import RECSLT = # N1077A's slot DCAMSLT = # N1092D's slot DRATE = '10.312500E+9' # input data rate setup_86100():      Default all settings. Set trigger turn on channel.      flex.query(':SYSTem:DEFault;*OPC?')     flex.write(':TRIGger:SOURce FPANel') slot range(1,9): # Only channel 5A on.
  • Page 98 4 Programming         flex.write(':TRIGger:BRATe:AUTodetect OFF')         flex.write(':TIMebase:BRATe ' + DRATE)         flex.write(':SLOT'+DCAMSLT+':TRIGger:TRACking ON')         flex.query(':TRIGger:PLOCk ON;*OPC?') print('Pattern lock on.') return True return False make_measurement(patternlock):      Perform acquisition limit test bit-rate measurement.      flex.query(':AUToscale;*OPC?')     flex.write(':ACQuire:SINGle;:ACQuire:CDISplay') patternlock:         flex.write(':LTESt:ACQuire:CTYPe:PATTerns 20') print('Acquiring 20 pattern waveforms. Please wait...') else:         flex.write(':LTESt:ACQuire:CTYPe:WAVeforms 100') print('Acquiring 100 waveforms.
  • Page 99 4 Programming setup_n1077a() setup_dcam(): make_measurement(pattern_lock()) flex.write(':SYSTem:GTLocal') flex.close() N109X-Series User's Guide...

  • Page 100: Index

    Index Index Script on PC specifications front panel environmental armed light static-safe workstation slot number LED Trig'd light accessories static-safe connector supplied grounding receptacle aligning waveforms 63, armed light VISA address AUToscale installing DCA-Ms instrument markings waveforms, aligning best practices wavelength range LINE power wavelength selection...
