Ruckus Wireless T670 Quick Setup Manual

T670 Stadium Mounting Kit
Quick Setup Guide
This Quick Setup Guide provides a step-by-step instruction on how to
install your RUCKUS Stadium Enclosure for the T670 access point (AP). This
QSG is common for the following mounting kits:
• Under-Seat Flush Mounting Bracket (Part Number: 902-0706-0000)
• Under-Seat 12-degree Tilt Mounting Bracket (Part Number:
902-0707-0000)

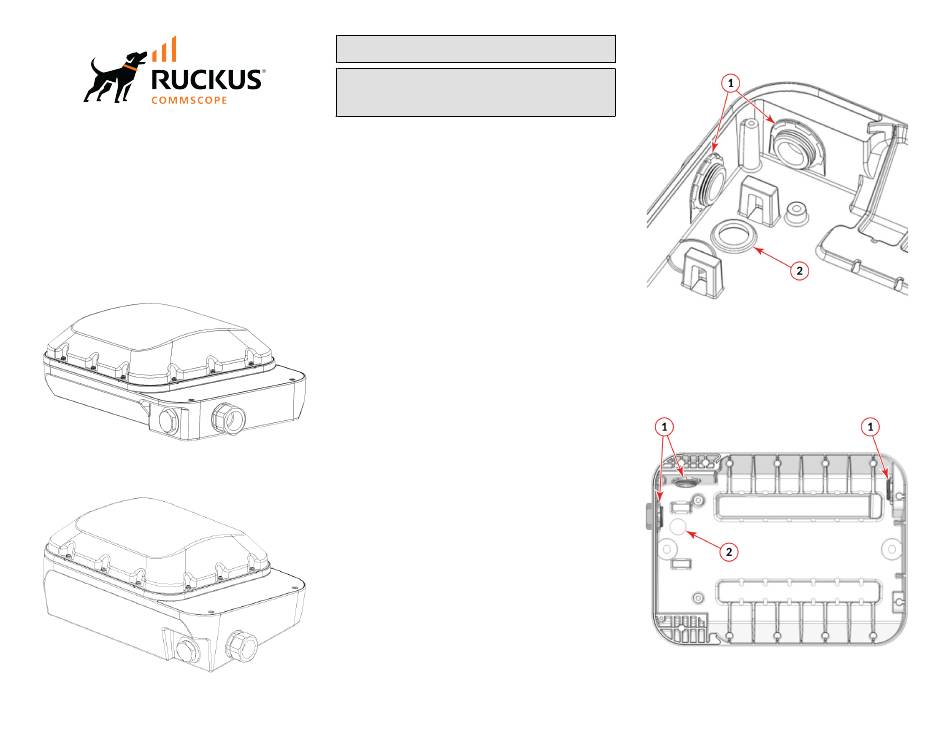

FIGURE 1 RUCKUS Stadium Mounting Bracket (Part Number:
902-0706-0000): Side View
FIGURE 2 RUCKUS Stadium Mounting Bracket (Part Number:
902-0707-0000): Side View
Copyright © 2025 CommScope, Inc. All rights reserved.
Published January 2025, Part Number 800-73640-001 Rev A
WARNING! Only trained and qualified personnel shall install, replace, or
service this equipment.
WARNING! The maximum equivalent isotropic radiated power (EIRP) at
any elevation angle above 30 degrees (as measured from the horizon)
must not exceed 21 dBm (125 mW) or must adhere to any local
regulatory requirements.
This Guide in Other Languages
• 请从以下网站获得该指南的简体中文版
http://
docs.commscope.com/?docs-box.
• Vous trouverez la version française de ce guide à l'adresse suivante
http://docs.commscope.com/?docs-box.
• このガイドの日本語版は
http://docs.commscope.com/?docs-box
ご覧ください。
• 이 가이드의 한국어 버전은 웹 사이트
(http://docs.commscope.com/?
docs-box) 에서 확인하시기 바랍니다.
• Veja a versão em português (Brasil) deste guia em
docs.commscope.com/?docs-box
• Puede ver la versión en español (América Latina) de esta guía en
docs.commscope.com/?docs-box
Package Contents
A complete Stadium Mounting installation kit includes the following items:
• One under-seat mounting enclosure with conduit port plugs
• One metal internal bracket
• Plastic cable cover with captive screws
• Six M6 x 12mm screws with lock and flat washer
• Two M6 x 50mm sleeve anchors
• QR code insert card
Required Hardware and Tools
• RUCKUS T670 Outdoor AP
• Customer-supplied straight or angled conduit
• 5mm hex key
• 10mm socket
• 8mm or 5/16-in drill bit
• 3/4-in conduit backing nut wrench
• 27mm socket for cable gland
• Tape measure
• Torque wrench
Attaching Conduit with Signal or Power Cable
Plan the cable routing from the cable source to the under-seat mount
before securing the under-seat mount to the tread or a riser.
The under-seat mounting kit (part number: 902-0706-0000) comes with
two 3/4-inch conduit ports along with plugs on the sides and an 18mm
opening on the bottom surface.
FIGURE 3 Conduit Ports and Access Opening for Part Number:
902-0706-0000
で
http://
http://
1. Conduit Ports
The under-seat mounting kit (part number: 902-0707-0000) comes with
three 3/4-inch conduit ports along with plugs on the sides and an 18mm
opening on the bottom surface.
FIGURE 4 Conduit Ports and Access Opening for Part Number:
902-0707-0000
1. Conduit Ports
2. 18mm opening
2. 18mm opening
Page 1 of 5
