Ruckus Wireless 902-0108-0000 Mounting Instructions

ZoneFlex 7352/7372
Accessory Bracket
Mounting Instructions
The following instructions describe how to mount your
Ruckus Wireless ZoneFlex 7352/7372 Access Point to a wall,
ceiling, utility box or pole or truss using the 7352/7372
Accessory Bracket Kit (part number 902-0108-0000).
P C
ACKAGE ONTENTS
• Bracket assembly
• (4) #6 tapping screw and wall anchor sets
• Mounting clamp
• ZoneFlex 7352/7372 Accessory Bracket Mounting
Instructions (this document)
W Y W N
HAT OU ILL EED
• ZoneFlex 7352/7372 Access Point
• Phillips screwdriver
• Drill with 3/16" (4.8mm) drill bit
• Straightened paperclip
F
EATURES
Mates with keyholes built in to the ZoneFlex 7352/7372 AP.
Supported mounting scenarios:
• Hard wall & ceiling
• Utility wall box
• Pole & Truss
Physical security
• Locking tab for padlock security
• Security Torx
M O
OUNTING PTIONS
Refer to the relevant section for the mounting options you
will be using:
• Secure Wall Mount
• Wall Box Mount
• Pole & Truss Mount
NOTE:
Before mounting the AP to the bracket, ensure that the
locking tab is in the unlocked position (see Figure 7 under
Physical Security).

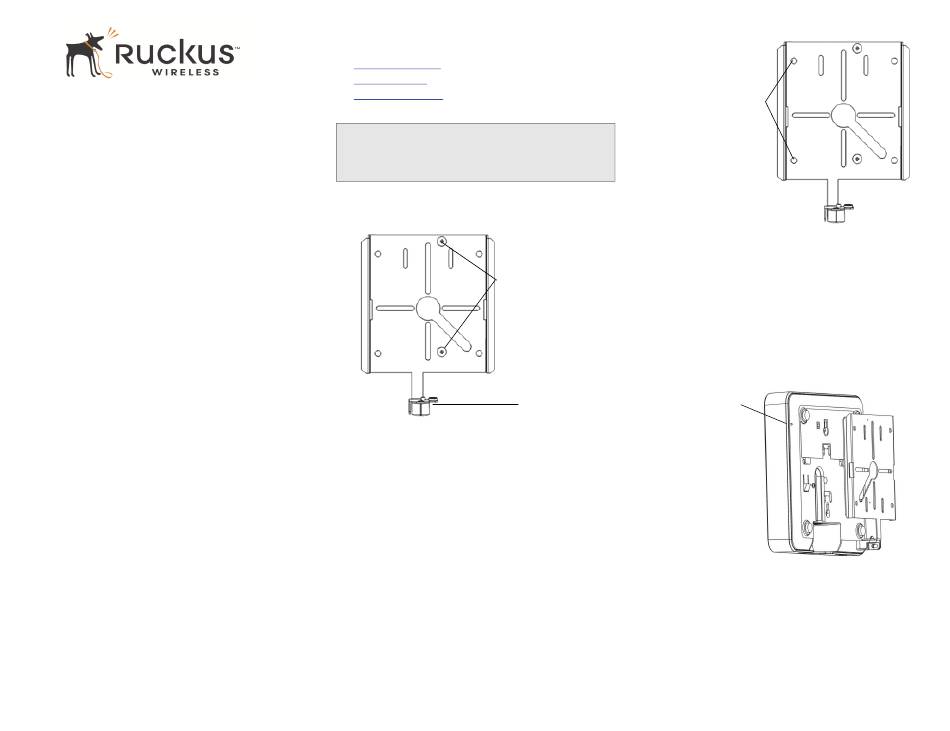

Figure 1. Accessory bracket
Posts fit into
keyholes on bottom
of ZF 7352/7372
S W M
ECURE ALL OUNT
To mount the bracket to a wall or ceiling surface, you will
need a drill and a 3/16" (4.8mm) drill bit.
1 Use the bracket as a template to mark the locations for
drill holes (4 mounting hole locations).
Copyright © 2012 Ruckus Wireless, Inc.
Published November 2012, Part Number 800-70425-001
Figure 2. Wall/ceiling mount screw hole locations
Mounting holes
2 Using a 3/16" (4.8mm) drill bit, drill the holes and insert
wall anchors.
3 Attach the bracket using the #6 tapping screws.
4 Insert and hold a straightened paperclip into the hole on
the side of the AP to disengage the locking mechanism.
5 Slide the AP onto the bracket and release the paperclip
to lock in place.
Figure 3. Attach the AP so that the security lock is on the
Insert paperclip
Locking tab
into hole
same side as the AP Ethernet ports
