The appearance of UT986eb is as follows:
(1) Silkscreen: It marks the signals of the pins. The smaller holes around are used
to mount the UT986 socket. The printing adopts exposed copper to ensure the
flatness of the surface.
(2) UT986 module: The pin pads are designed long, which is convenient for
soldering, testing and debugging. For detailed packaging information, refer to
the PCB document.
(3) PPS connector: To measure the PPS signal, solder an MMCX connector here.
(4) LED indicators: Indicating the status of the power supply, reset, antenna short
circuit, and UART.
2
1

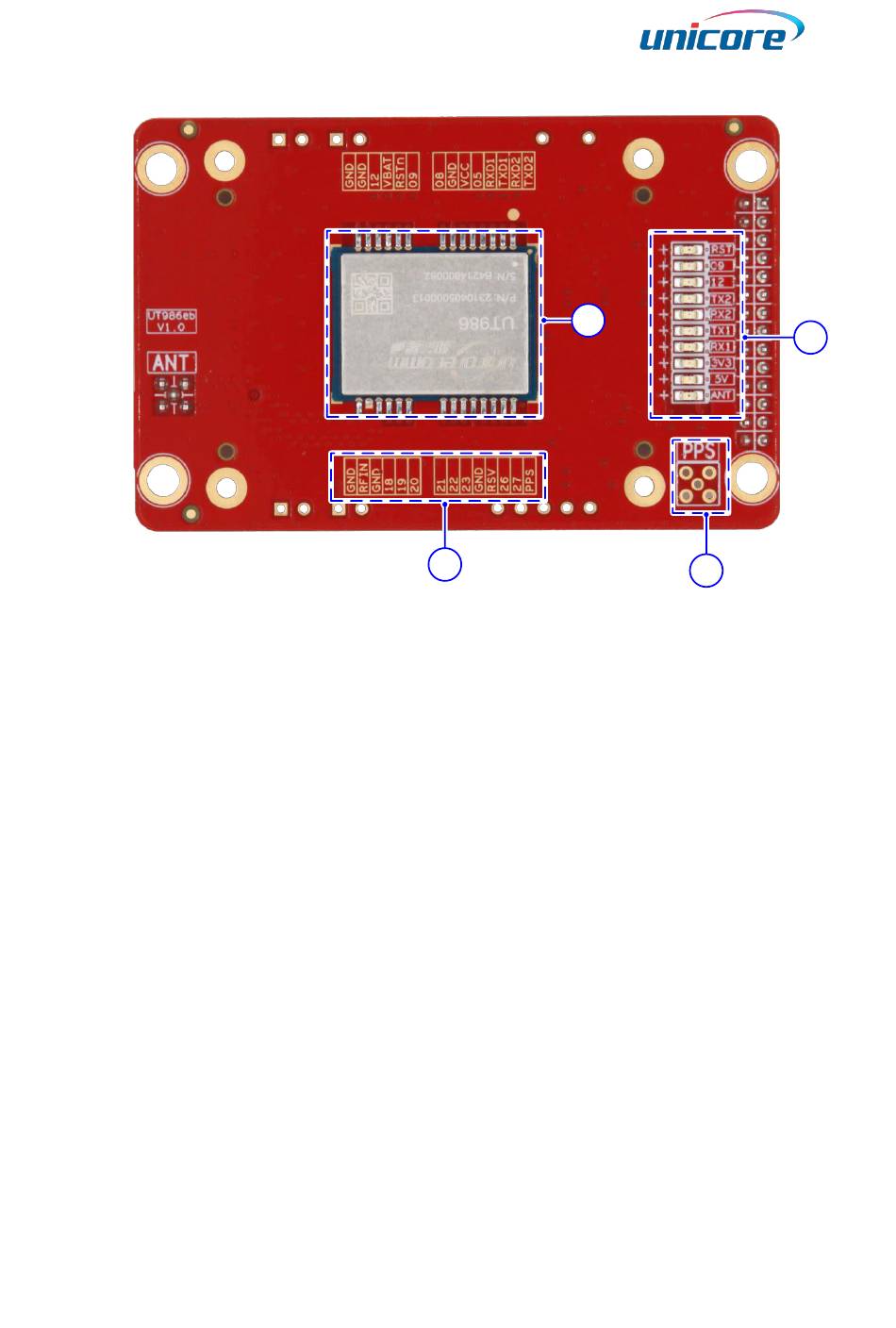

Figure 1-2 Top View of UT986eb
