ABSCO SHEDS SIGNATURE ADGAZEBO33 Instruction Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
AU: 1800 029 701
N Z: 0800 466 444
o
2^
fall
to rear
For construction in non-cyclonic areas
Wind rating: N3 as per AS4055-2021.
If you require a higher wind rating please contact
us: admin@absco.com.au or 1800 029 701
Absco Industries

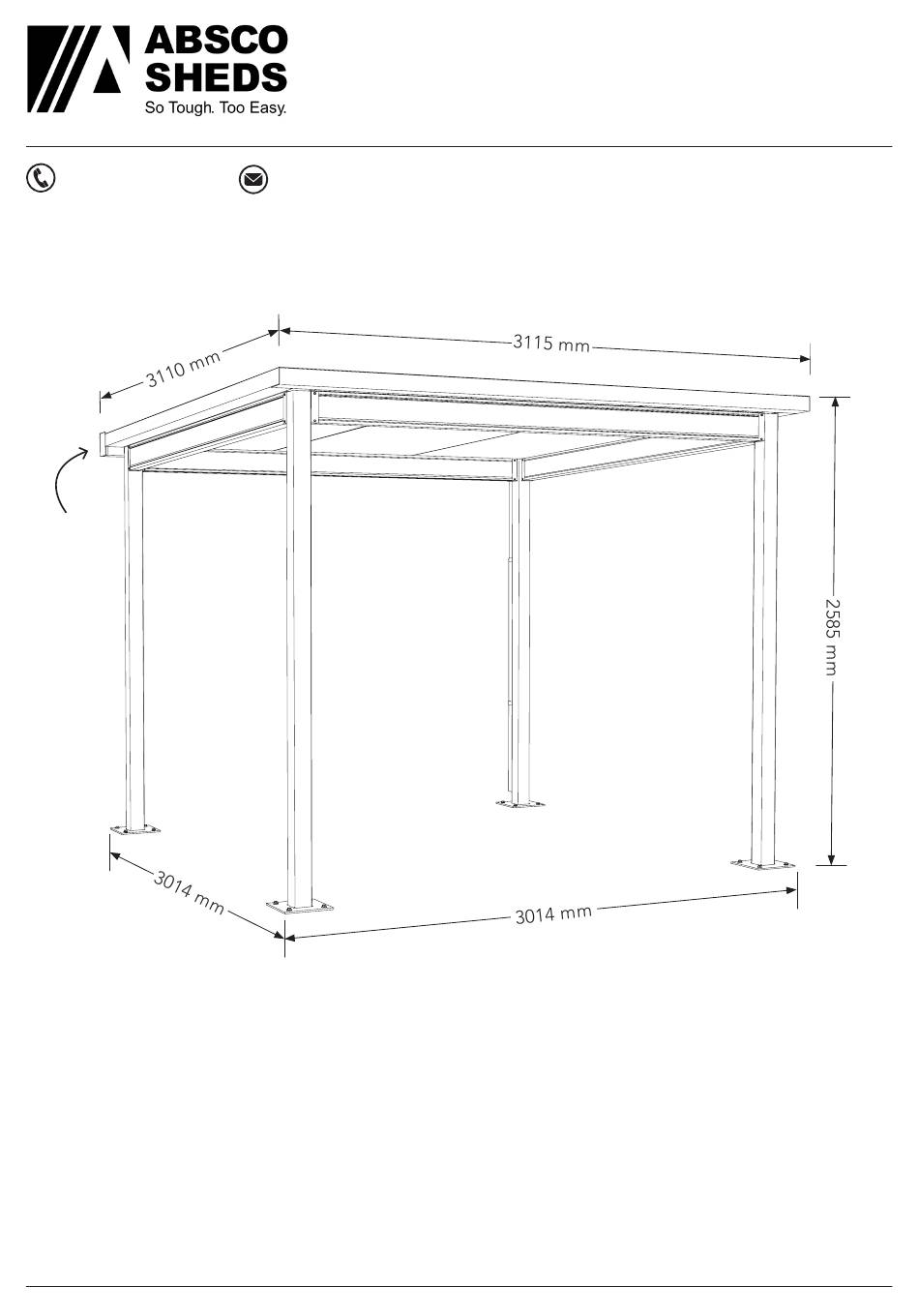

Assembly Instruction Manual
ABSCO SIGNATURE GAZEBO
MODEL: ADGAZEBO33
3.11m W x 3.11m D x 2.60m H
admin@absco.com.au
www.abscosheds.com.au
Model: ADGAZEBO33
FRONT
NOTE - Concrete slab must be a minimum of
100mm thick, 20 MPa concrete reinforced with
SL72 mesh and extend for the full area covered by
the structure.
21/09/23
1.00
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the SIGNATURE ADGAZEBO33 and is the answer not in the manual?

Questions and answers

Related Manuals for ABSCO SHEDS SIGNATURE ADGAZEBO33

Summary of Contents for ABSCO SHEDS SIGNATURE ADGAZEBO33

  • Page 1 ABSCO SIGNATURE GAZEBO MODEL: ADGAZEBO33 3.11m W x 3.11m D x 2.60m H AU: 1800 029 701 admin@absco.com.au N Z: 0800 466 444 www.abscosheds.com.au fall to rear FRONT NOTE - Concrete slab must be a minimum of For construction in non-cyclonic areas Wind rating: N3 as per AS4055-2021.
