ABSCO SHEDS ADGAZEBO63 Manual

Signature gazebo
Hide thumbs

Advertisement

Quick Links

Download this manual
AU: 1800 029 701
N Z: 0800 466 444
o
2^
fall
to rear
For construction in non-cyclonic areas
Wind rating: N3 as per AS4055-2021.
If you require a higher wind rating please contact
us: admin@absco.com.au or 1800 029 701
Absco Industries

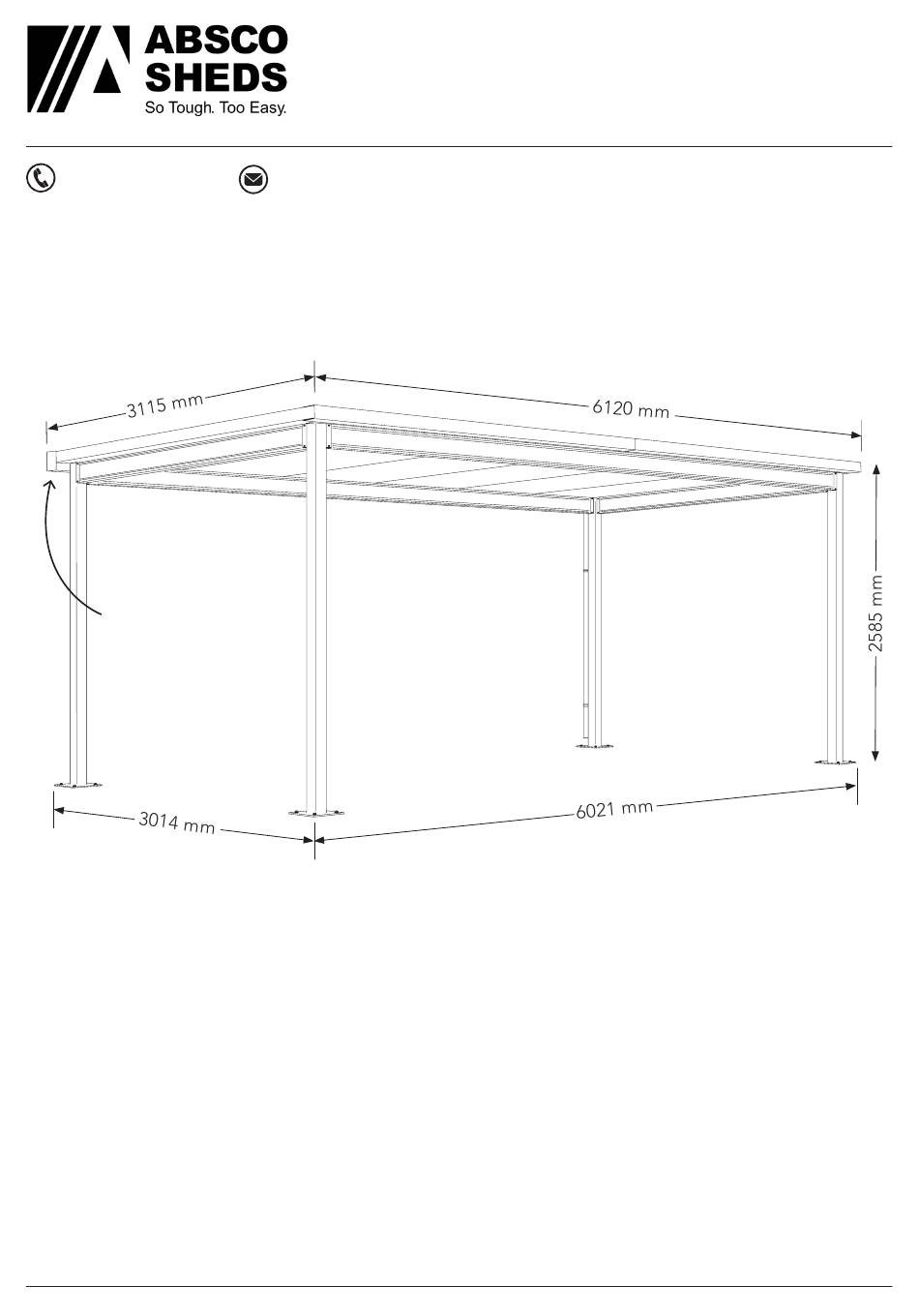

Assembly Instruction Manual
ABSCO SIGNATURE GAZEBO
MODEL: ADGAZEBO63
6.12m W x 3.11m D x 2.60m H
admin@absco.com.au
www.abscosheds.com.au
Model: ADGAZEBO63
FRONT
NOTE - Concrete slab must be a minimum of
100mm thick, 20 MPa concrete reinforced with
SL72 mesh and extend for the full area covered by
the structure.
4/12/23
1.00
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the ADGAZEBO63 and is the answer not in the manual?

Questions and answers

Related Manuals for ABSCO SHEDS ADGAZEBO63

Summary of Contents for ABSCO SHEDS ADGAZEBO63

  • Page 1 ABSCO SIGNATURE GAZEBO MODEL: ADGAZEBO63 6.12m W x 3.11m D x 2.60m H AU: 1800 029 701 admin@absco.com.au N Z: 0800 466 444 www.abscosheds.com.au fall to rear FRONT NOTE - Concrete slab must be a minimum of For construction in non-cyclonic areas Wind rating: N3 as per AS4055-2021.

  • Page 2: Tools Required

    ABSCO SIGNATURE GAZEBO MODEL: ADGAZEBO63 6.12m W x 3.11m D x 2.60m H IMPORTANT INFO - READ BEFORE CONSTRUCTION BEGINS General Safety Read through these instructions in detail to gain Some parts may have sharp edges. It is a thorough understanding of assembly methods recommended to wear gloves when handling and associated details.

  • Page 3: Component List

    ABSCO SIGNATURE GAZEBO MODEL: ADGAZEBO63 6.12m W x 3.11m D x 2.60m H COMPONENT LIST Check off all components, parts shown are not to scale. Short Tall Side posts posts Beam Beam Insulated panel QTY CHECK QTY CHECK QTY CHECK...
  • Page 4 ABSCO SIGNATURE GAZEBO MODEL: ADGAZEBO63 6.12m W x 3.11m D x 2.60m H POSTS 1. Take any post and a BK3 bracket. Orientate the bracket as shown and align so it’s flush with the end and side of the post.
  • Page 5 ABSCO SIGNATURE GAZEBO MODEL: ADGAZEBO63 6.12m W x 3.11m D x 2.60m H POST LOCATIONS 6021 Use a chalk line, or equivalent, to mark nominal outside dimensions onto foundation. The diagonal measurement will confirm squareness. 3014 6733 NOTE: For illustrative purposes the gutter will be at the rear for the rest of this manual.
  • Page 6 ABSCO SIGNATURE GAZEBO MODEL: ADGAZEBO63 6.12m W x 3.11m D x 2.60m H FITTING THE SHURELOCK BEAMS 0. Remove the protective plastic coating from 1. Safely lift and place a longer SB2 beam inside the outside of the beam. the taller post brackets BK3 as shown.
  • Page 7 ABSCO SIGNATURE GAZEBO MODEL: ADGAZEBO63 6.12m W x 3.11m D x 2.60m H ATTACH Z FLASHING 1. Place one Z flashing TR35 along the lower side beam as pictured. Align to be flush with the exterior of the beam. 2. Overhang the end of the beam by 125 mm.
  • Page 8 ABSCO SIGNATURE GAZEBO MODEL: ADGAZEBO63 6.12m W x 3.11m D x 2.60m H ROOF PANELS 3. On the middle rib, fasten panel to low side beam with a tek 14 x 125 mm FAST104. Don’t over-tighten and crush the panel.
  • Page 9 ABSCO SIGNATURE GAZEBO MODEL: ADGAZEBO63 6.12m W x 3.11m D x 2.60m H SIDE FLASHING - FRONT DETAIL NOTE: Leave the protective plastic on TR36 flashing until fastening, It’s good to mark on. Do one TR36 as pictured - the other TR36 is the same but ‘mirrored’.

  • Page 10: Front Edge

    ABSCO SIGNATURE GAZEBO MODEL: ADGAZEBO63 6.12m W x 3.11m D x 2.60m H FRONT & REAR FLASHING 5. Refit the flashing, and fasten using pop rivets FAST102 at the locations shown. LOW SIDE UNDERSIDE VIEW Only at the low side, on top, use teks with neoprene washers FAST101.
  • Page 11 ABSCO SIGNATURE GAZEBO MODEL: ADGAZEBO63 6.12m W x 3.11m D x 2.60m H GUTTERING 0. Remove protective plastic coating from guttering components. 1. Next join both lengths of gutter RWG24, to match the overall finished length of the structure. Notch out the rolled edges (shown in grey) to allow one to slide inside the other.
  • Page 12 ABSCO SIGNATURE GAZEBO MODEL: ADGAZEBO63 6.12m W x 3.11m D x 2.60m H GUTTERING FRONT VIEW - NOTE: Gutter falls to left for illustrative purposes only. 8. The gutter needs fall to drive water to a specific end. At the end you’d like the downpipe, mark the underside of the gutter onto the beam.
  • Page 13 ABSCO SIGNATURE GAZEBO MODEL: ADGAZEBO63 6.12m W x 3.11m D x 2.60m H DOWNPIPE NOTE: The method shown is to mount a simple full height straight downpipe RWG21. An 80 to 90 mm adapter RWG29 is supplied if you wish to join into existing system instead.
  • Page 14 ABSCO SIGNATURE GAZEBO MODEL: ADGAZEBO63 6.12m W x 3.11m D x 2.60m H Referenced Standards Information in this manual has been designed in accordance with the following Australian and New Zealand Standards. – National Construction Code of Australia 2022 – Specification S4C2—Design of Building in Cyclonic Areas NCC2022 VOL 1 –...
