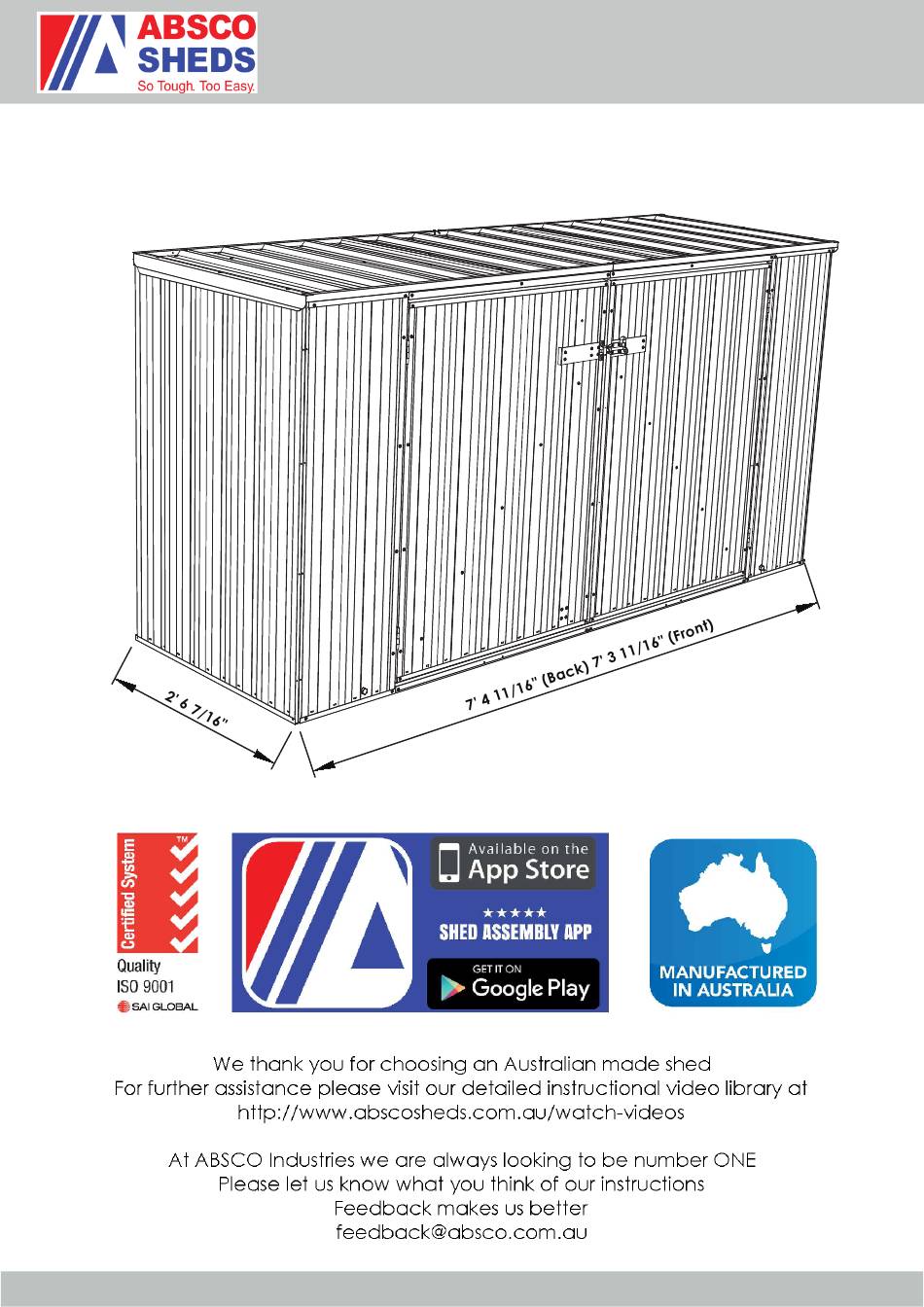

- Page 1 Absco Industries Bike Shed Model: 23083XK-PTX FRONT BASE LENGTH: 7' 5 " SIDE BASE LENGTH: 2' 6 11/16" HEIGHT: 3' 9 1/4" ABSCO INDUSTRIES ASSEMBLY INSTRUCTION MANUAL MODEL: 23083XK-PTX 17/07/19...
- Page 2 Absco Industries Bike Shed Model: 23083XK-PTX GENERAL INSTRUCTIONS Before commencing any assembly, read through these instructions in detail to gain a thorough understanding of assembly methods and associated details. Unpack the carton and carefully identify and check off all the parts against the parts described and illustrated on "COMPONENTS PACKING LIST"...
- Page 3 Absco Industries Bike Shed Model: 23083XK-PTX SPLIT SHEET 39B INTO 2x 1' 15/16" WIDE SHEETS This shed comes with a perforated sheet 39C that is designed to be split into two smaller sheets (39C) SPLITTING SHEET 39C PART COMPONENT PART...
- Page 4 Absco Industries Bike Shed Model: 23083XK-PTX COMPONENTS PACKING LIST - CHECK OFF ALL COMPONENTS MAIN PACK CARTON DESCRIPTION DESCRIPTION PART # PART # STEEL SHEET STEEL SHEET 3' 8 1/2" LONG 3' 8 1/2" LONG 2' 6 7/16" WIDE 2' 6 7/16" WIDE...
- Page 5 Absco Industries Bike Shed Model: 23083XK-PTX COMPONENTS PACKING LIST - CHECK OFF ALL COMPONENTS 23083BSM CHANNEL PACK DESCRIPTION DESCRIPTION PART # PART # CHANNEL CHANNEL 3' 8 3/8" 3' 8 3/8" 54PL 54PR NOTCHED NOTCHED ONE END ONE END CHANNEL...
- Page 6 Absco Industries Premier Garden Shed - Model: J30232G Bike Shed Model: 23083XK-PTX INSTRUCTIONS FOR JOINING SPLICED CHANNELS NOTE: THE TEXT MARKED ON ALL PARTS MUST BE SHOWN ON THE SAME SIDE AS EACH OTHER. JOIN>> JOIN>> JOIN>> <<JOIN STEP 1.
- Page 7 Absco Industries Bike Shed Model: 23083XK-PTX PRE-ASSEMBLY: JOINING SPLICED CHANNELS NOTE: JOIN TOGETHER 12 X CHANNEL SECTIONS USING 6 X CHANNEL JOINERS (PART CSJ) NOTE: SOME CHANNELS HAVE 1 x 54T HOLES IN THEM - YOU WILL NEED TO RE-DRILL HOLES ON ANY...
- Page 8 Earthcore Garden Shed Absco Industries Bike Shed Model: 23083XK-PTX Model: 23083BSM VIEW OF WALL COMPONENTS VIEW OF LID COMPONENTS EARTHCORE ASSEMBLY INSTRUCTION MANUAL MODEL: 23083BSM 15-05-2018 PAGE 08 ABSCO INDUSTRIES ASSEMBLY INSTRUCTION MANUAL MODEL: 23083XK-PTX 17/07/19...
- Page 9 Premier Garden Shed Absco Industries INSTRUCTIONS Model: 30152GK Bike Shed Model: 23083XK-PTX AND VIDEOS ABSCO ASSEMBLY INTRODUCTION The snaptite assembly system locks most perimeter channels to all roof and wall sheets without the need for tools and fasteners. To pre-assemble the four wall panels...
- Page 10 Earthcore Garden Shed Absco Industries Bike Shed Model: 23083XK-PTX Model: 23083BSM REAR PANEL ASSEMBLY FAST012A FAST009 ABSCO INDUSTRIES ASSEMBLY INSTRUCTION MANUAL MODEL: 23083XK-PTX 17/07/19...
- Page 11 Absco Industries Earthcore Garden Shed Bike Shed Model: 23083XK-PTX Model: 23083BSM SIDE PANEL ASSEMBLIES Bottom Bottom ABSCO INDUSTRIES ASSEMBLY INSTRUCTION MANUAL MODEL: 23083XK-PTX 17/07/19...
-
Page 12: Lid Assembly
Absco Industries Earthcore Garden Shed Bike Shed Model: 23083XK-PTX Model: 23083BSM LID ASSEMBLY NOTE: HOLE ORIENTATION ON SHEETS ILLUSTRATED TIP: Fasten 1x screw at each end of each 91L from the underside of the lid. Flip over the lid and fit the remaining screws. - Page 13 Absco Industries Bike Shed Model: 23083XK-PTX LID ASSEMBLY 1 27/64” A SINGLE PADBOLT IS TO BE FIXED TO THE UNDERSIDE OF THE LID. THE MIDDLE OF THE PADBOLT IS TO BE 1 27/64” TO THE RIGHT OF THE CENTRELINE OF THE LID.
- Page 14 Absco Industries Bike Shed Model: 23083XK-PTX LID ASSEMBLY CO12A ALL VERTICAL DOOR CHANNELS ARE INSTALLED IN THE REVERSE DIRECTION IN COMPARISON TO HORIZONTAL DOOR CHANNELS CO12A FAST006 ABSCO INDUSTRIES ASSEMBLY INSTRUCTION MANUAL MODEL: 23083XK-PTX 17/07/19...
-
Page 15: Door Panel Assembly
Absco Industries Bike Shed Model: 23083XK-PTX DOOR PANEL ASSEMBLY FAST005 8x FAST006 FAST009 3x FIT FAST001 SCREWS TO ENDS OF 91A, FLIP PANEL OVER & FIT REMAINING SCREWS THROUGH FRONT, THEN FLIP BACK AND REFIT END SCREWS FAST012A THROUGH FRONT... -
Page 16: Front Panel Assembly
Absco Industries Bike Shed Model: 23083XK-PTX FRONT PANEL ASSEMBLY NOTE: FIT FAST001 SCREWS THROUGH 54R FAST001 CHANNELS AT TOP AND BOTTOM OF 39C SHEETS 1ST THEN SQUEEZE 91K JAMBS INTO POSITION AND SECURE IN NEXT STEP BELOW FAST001 FAST001 4x... - Page 17 Earthcore Garden Shed Absco Industries Bike Shed Model: 23083XK-PTX Model: 23083BSM FRONT PANEL DOOR ASSEMBLY NOTE: NUTS AND BOLTS (SUPPLIED) MAY BE USED INSTEAD OF POP RIVETS (SUPPLIED) BY SIMPLY ENLARGING THE HINGE HOLE FAST009 SETS IN THE JAMB USING A FAST009 5/32”...
- Page 18 Earthcore Garden Shed Absco Industries Bike Shed Model: 23083XK-PTX Model: 23083BSM WALL PANEL CONSTRUCTION FAST009 FIT 4x FAST001 SCREW AT EACH CORNER FAST009 SIDE WALL PANEL CHANNELS FIT INTO THE NOTCHED FRONT AND REAR WALL PANEL CHANNELS EARTHCORE ASSEMBLY INSTRUCTION MANUAL...
- Page 19 Earthcore Garden Shed Absco Industries Bike Shed Model: 23083XK-PTX Model: 23083BSM LID PANEL INSTALLATION FAST009 FAST009 FAST009 9/16” 9/16” - USE THE 3mm DRILL BIT TO DRILL 1x HOLE THROUGH THE 88Z LIP AS ILLUSTRATED - DRILL ANOTHER HOLE THROUGH THE OPPOSITE...
- Page 20 Absco Industries Bike Shed Model: 23083XK-PTX FINAL CONSTRUCTION AFTER FINAL ALIGNMENT AND ANCHORING HAS BEEN COMPLETED. CLOSE THE LID AND LOCATION OF 4 EXTEND THE LID PADBOLT UNTIL IT CONCRETE ANCHORS CONTACTS THE FRONT CHANNEL. MARK THIS CENTREPOINT AND DRILL A 10MM HOLE.
-
Page 21: Against Defects
THE CUSTOMER SERVICE MANAGER, ABSCO SHEDS, PO BOX 119 ACACIA RIDGE QLD AUSTRALIA 4110 PHONE: +61 1800 029701 EMAIL: warranty@absco.com.au...
