Summary of Contents for BOERPLAY BBPE091.4K

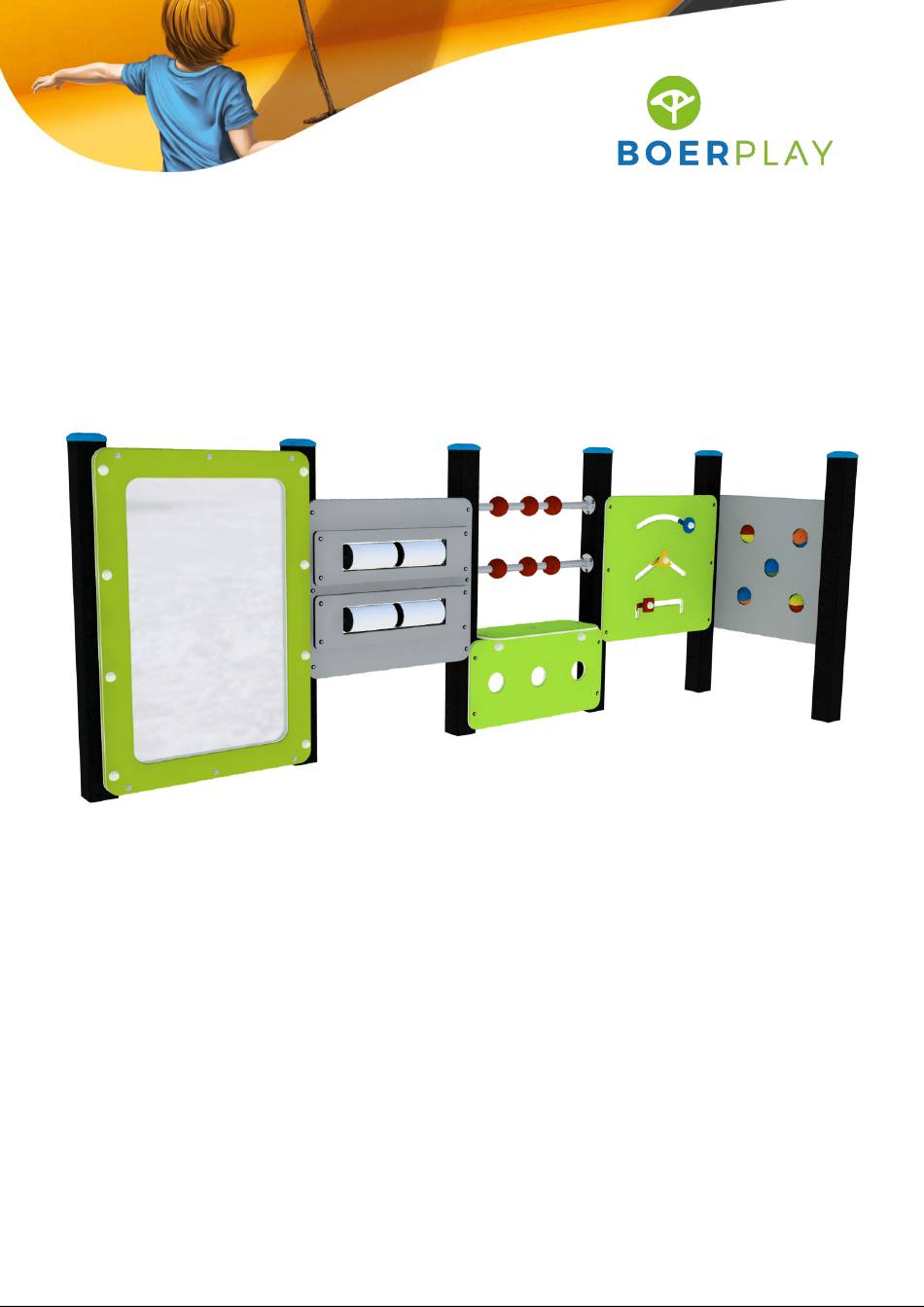

  • Page 1 Spielpunkt XL BBPE091.4K...
  • Page 2 0,96 m 0,90 m 0,00 m 1,27 m 0,00 m Benaming TOE BBP 091 4K Speelwandjes Title Tekening Opmerking Basic play Drawing Comment Datum Hoofdafmetingen Main dimensions 1-2-2022 Date...
  • Page 3 3,96 m 1,50 m 1,50 m 1,50 m Opvangzone Impact area Obstakelvrije zone Obstacle free zone Benaming TOE BBP 091 4K Speelwandjes Title Tekening Opmerking Basic play Drawing Comment Datum Obstakelvrije zone Obstacle free zone 1-2-2022 Date...
  • Page 4 3,96 m 2,35 m 1,55 m 0,71 m 0,00 m Grondmarkering Ground level marker Benaming TOE BBP 091 4K Speelwandjes Title Tekening Opmerking Basic play Drawing Comment Datum Bodemplan Groundplan 1-2-2022 Date...
  • Page 5 Geleverde modules: Supplied modules: See table Zie tabel Montageinstructie: Assembly instruction: - The main dimensions indicate the dimensions of the posts and floors - De hoofdmaten geven de maten van de staanders en vloeren aan - De detailtekeningen geven specifiek de maten van de verbindingen aan - The detailed dimensions show the specific dimensions of the connections - De modules met buizen zijn op de tekeningen bemaat op bovenkant kopplaat - The modules which contain tubes are dimensioned at the top of the flanges...
  • Page 6 1267 1220 1040 Benaming TOE BBP 091 4K Speelwandjes Title Tekening Opmerking Basic play Drawing Comment Datum Afmetingen Dimensions 1-2-2022 Date...
  • Page 7 LOGBUCH Art der Anzeige Basic Play Artikelnummer BBPE091.4K Gerätename Spielpunkt XL Maximale Fallhöhe 0,5 m Baujahr 2023 Zertifikat 148646 Kontrollstelle Keurmerkinstituut Groeneweg 2e, Zoetermeer 2718AA Zoetermeer Name des Herstellers Boer Speeltoestellen Hyacintstraat 2 - 4255 HX Nieuwendijk Tel.: +31 (0)183 40 23 66...
  • Page 8 LOGBUCH Inspektion und Wartung Datum Zeit Name der Name des Zu ersetzende Inspektion Inspektion Defekte gefunden Exekutivinspektion Wartungsarbeiters Teile Wartung Wartung Unfälle Maßnahmen Alter des Mögliche Ursache für Unfalldatum Aufgetreten Verletzung Genommen nach Opfers Verletzungen den Unfall...
  • Page 9: Wartung

    Inspektions-und Wartungsintervalle Monaten Nr. Inspektion Wartung zwischen Inspektionen Stellen Sie die Geräte Stabilität sicher, Verbindungen und fehlende Teile. Überprüfen Montieren Sie fehlende Teile, sichere die Sie Bolzen, Schrauben und Muttern für Gelenke und ersetze korrodierte Teile. Abwesenheit, Korrosion und Verschleiß. Tauschen Sie verschlissene Teile und / Überprüfen Sie Aufhängung für Verschleiß.
  • Page 10 6. Überprüfen Sie das Gelände regelmäßig für Artikel, die dort nicht hingehören, gefährlich sind oder falsch verwendet werden. Beispiele dafür sind giftige Pflanzen, Glasscherben, usw. 7. Denken Sie daran, dass schlechte Wartung führt zu gefährlichen Situationen und schnellere Verarmung der Spielplatz.
  • Page 12 Type Progr. Volgnr Bew. Rev. Benaming Opmerking SCHROEF 5 x 50 Staander 1,75m Duikel Paalkap 100x100 Aluminium Voetplaat 100 x 100 Benaming MOD BBP 024 K Aanbouwduikel 1,1 m Title Tekening Opmerking Boer Basic play Drawing Comment BOER Datum Samenstelling module Assembly module 18-11-2014 Date SPEELTOESTELLEN...
  • Page 13 - module Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module MOD BBP 030 G © Copyright BOERplay 24-8-2023 Revision: C...
  • Page 14 Detail A (3x) 100 mm BSR.026.010.100 BSR.035.010.030 BSR.011.010.020 KST.BBP.008 KST.BBP.008 OPE.BBP.005.xxx BSR.011.010.020 BSR.035.010.030 BSR.026.010.100 Detail B (2x) KST.DOP.010.020 BSR.010.010.010 BSR.030.010.002 KST.DON.010.020 BSR.026.010.110 110 mm OPE.BBP.004.xxx BSR.026.010.110 KST.DON.010.020 OPE.BBP.004.061 KST.DOP.010.020 BSR.010.010.010 BSR.030.010.002 MOD BBP 030 G © Copyright BOERplay 24-8-2023 Revision: C...
  • Page 15 Postes de metal Postes de plástico o madera Poteaux en métal Poteaux en plastique ou en bois 30 mm 70 mm BSR.014.005.053 BSR.002.005.070 KST.ROR.006.000 ø5mm ø3mm x 30 BSR.002.005.070 BSR.014.005.053 KST.ROR.006.000 MOD BBP 030 G © Copyright BOERplay 24-8-2023 Revision: C...
  • Page 16 - module Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module MOD BBP 031 X © Copyright BOERplay 22-3-2022 Revision:...
  • Page 17 Postes de metal Postes de plástico o madera Poteaux en métal Poteaux en plastique ou en bois 18 mm 50 mm BSR.014.005.052 BSR.002.005.050 KST.ROR.006.000 ø5mm ø3mm x 30 BSR.002.005.050 BSR.014.005.052 KST.ROR.006.000 MOD BBP 031 X © Copyright BOERplay 22-3-2022 Revision:...
  • Page 18 B (3x) Detail B (3x) BSR.005.004.019 KST.BOL.036.xxx xxx: 020 Orange Oranje / Orange / Naranja / Orange xxx: 030 Red Rood / Rot / Rojo / Rouge BSR.005.004.019 KST.BOL.036.xxx MOD BBP 031 X © Copyright BOERplay 22-3-2022 Revision:...
  • Page 19 Type Progr. Volgnr Bew. Rev. Benaming Opmerking Borgmoer M10 - VZ 8.8 Zeskantbout ISO 4014 M10 x 75 - VZ 8.8 HOUTDRAADBOUT M10 X 80 SLUITRING M10 VZ AFSTANDBUS 12.6x25x20 84395000012 interplay donut M10 wit interplay dop M10 wit 84395000014 Schuifwand Basic Play Basic Play Kids...
  • Page 20 Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Schroef Assy 5 x 70 - RVS A2-70 Zelfb. schroef 3,5 x 19 - RVS A2-70 Schroef Assy HMPE 5 x 35 - RVS A2-70 Draadeind M12 x 120 - RVS A2-70 Afstandsbus 85x30x14 Telbol helft Groen RAL 6018...
  • Page 21 5 x 35 - RVS A2-70 Kunststof ring 11x36x3 ZWART ROZETRING M5 Bus RVS rammelaar Basic play Staf rammelaar Speelwand Dop rammelaar Speelwand Wand rammelaar Basic Play Afdichtplaat rammelaar speelwand Basic play MOD BBP 207 G © Copyright BOERplay 17-11-2021 Revision: B...
  • Page 22 Type Progr. Volgnr. Bew. Rev. Benaming Opmerking M10 - VZ 8.8 Borgdopmoer Houtdraadbout M10 X 130 - VZ 8.8 Bolkop bout ISO 7380 M10 x 55 - VZ 8.8 SLUITRING M10 VZ interplay donut M10 wit 84395000012 interplay dop M10 wit 84395000014 SPIEGEL Basic Play...
