Summary of Contents for BOERPLAY BBPE034.4A

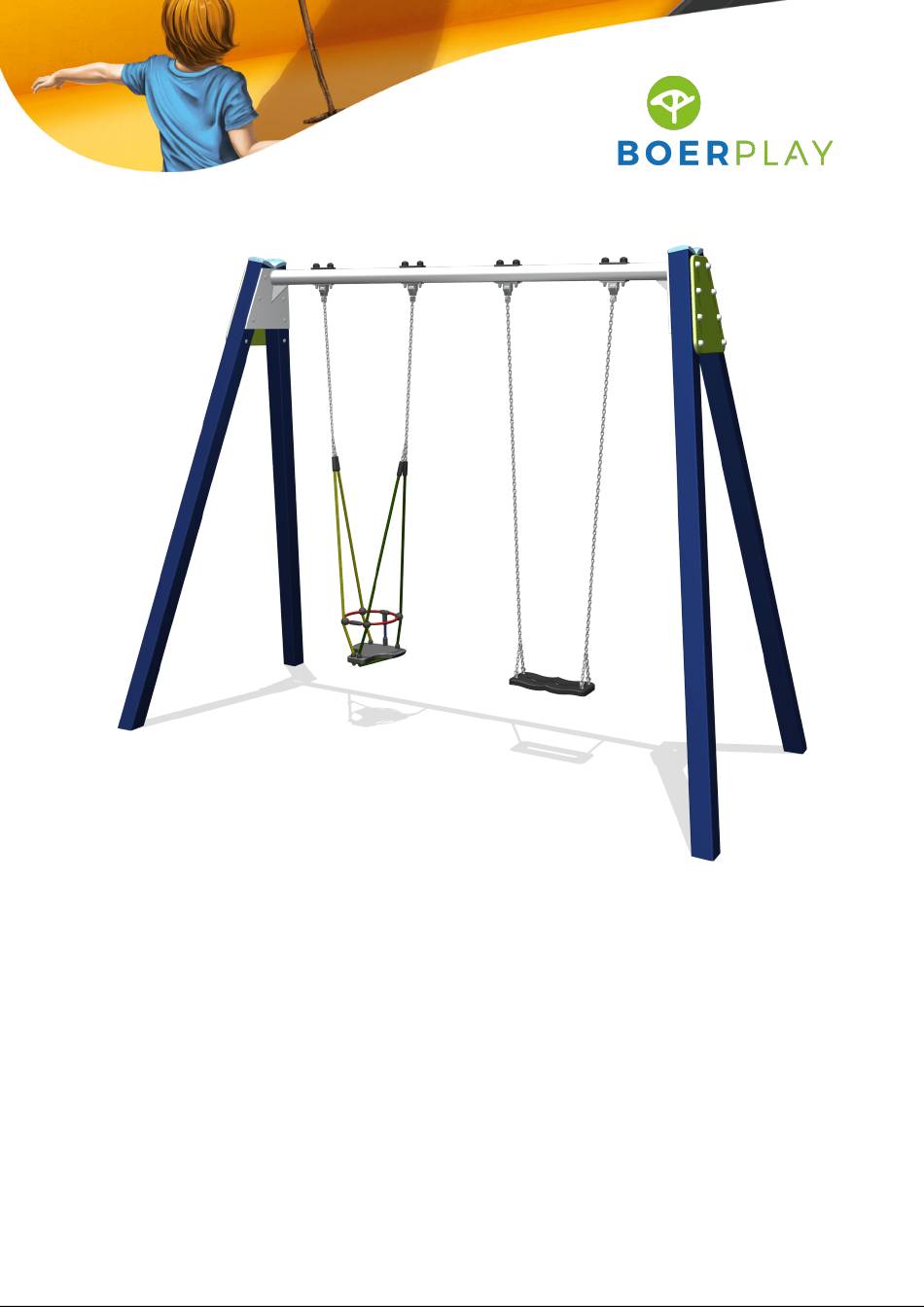

- Page 1 Double swing with toddler seat H2.5 BBPE034.4A...
- Page 2 1,63 m 0,81 m 0,00 m 2,63 m 2,49 m 0,00 m Benaming TOE BBP 034 4A Schommel 2,5m 1x pz Title Tekening Opmerking Boer Basic play Drawing Comment BOER Datum Hoofdafmetingen Main dimensions 25-7-2016 Date SPEELTOESTELLEN...
- Page 3 6,34 m 4,24 m 2,90 m Obstakelvrij export 1,45 m Obstacle free export Opvangzone Impact area Obstakelvrije zone Obstacle free zone Benaming TOE BBP 034 4A Schommel 2,5m 1x pz Title Tekening Opmerking Boer Basic play Drawing Comment BOER Datum Obstakelvrije zone Obstacle free zone 25-7-2016 Date...
- Page 4 1,47 m 3,40 m 1,47 m 0,30 m Grondmarkering Ground level marker 0,53 m Benaming TOE BBP 034 4A Schommel 2,5m 1x pz Title Tekening Opmerking Boer Basic play Drawing Comment BOER Datum Bodemplan Groundplan 25-7-2016 Date SPEELTOESTELLEN...
- Page 5 Geleverde modules: Supplied modules: Zie tabel See table Montageinstructie: Assembly instruction: - De hoofdmaten geven de maten van de staanders en vloeren aan - The main dimensions indicate the dimensions of the posts and floors - De detailtekeningen geven specifiek de maten van de verbindingen aan - The detailed dimensions show the specific dimensions of the connections - The modules which contain tubes are dimensioned at the top of the flanges - De modules met buizen zijn op de tekeningen bemaat op bovenkant kopplaat...
- Page 6 LOGBOOK Type indication Basic Play Article number BBPE034.4A Product Name Double swing with toddler seat H2.5 Maximum fall height 1,5 m Construction year 2023 Certificate 137460 Inspection body Keurmerkinstituut Groeneweg 2e, Zoetermeer 2718AA Zoetermeer Manufacturer name Boer Speeltoestellen Hyacintstraat 2 - 4255 HX Nieuwendijk...
- Page 7 LOGBOOK Inspection and maintenance Date of Time of Name Name Parts to be inspection inspection executor of executor of Found defects replaced maintenance maintenance inspection maintenance Accidents Date Age of Measures taken Probable cause of injury Occurred injury accident victim after accident...
-
Page 8: Inspection And Maintenance Intervals
Inspection and maintenance intervals months Nr. Inspection Maintenance between inspections Verify equipment's stability, junctions and Add missing parts, secure joints, apply missing parts. Inspect bolts, screws and nuts for missing fixing agent and replace absence, jams, corrosion and wear. corroded parts. Replace worn parts and/or remove non- Check suspension for wear. - Page 9 7. Remember that bad maintenance leads to unsafe conditions and notably faster impoverishment of the playground area. 8. Replacement parts can be ordered at the manufacturer with the OEM part numbers on the module drawing. Drawings can be found in the user guide. 9.
- Page 11 Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Klinknagel bolkop 4,8 x 18 - RVS A2-70 Zeskantmoer M10 - VZ 8.8 M10 x 145 - VZ 8.8 Slotbout Slotbout M10 x 135 - VZ 8.8 SLUITRING M10 VZ Veerring M10 - VZ 8.8 Beschermdop M10-M12 Donut wit Beschermdop M10-M12...
- Page 12 Type Progr. Volgnr Bew. Rev. Benaming Opmerking M10 - RVS A2-70 Borgdopmoer Zeskantbout M10 x 120 - RVS A2-70 SLUITRING RVS A2-70 Schommelscharnier Beschermdop M10-M12 Donut zwart Beschermdop M10-M12 Dop zwart Vulplaat Galileo V Zitje incl. ketting Schommelketting 5mm Met vork 2,0 m Zwart Schommelzitje CNK Sluitring...
- Page 13 Type Progr. Volgnr Bew. Rev. Benaming Opmerking Borgdopmoer M10 - RVS A2-70 Zeskantbout M10 x 120 - RVS A2-70 SLUITRING Schommelscharnier RVS A2-70 Peuterzitje Peuterschommel Donut zwart Beschermdop M10-M12 Beschermdop M10-M12 Dop zwart Vulplaat Galileo V Benaming MOD BBP 572 G Schommelzitje Title Tekening...
