Summary of Contents for BOERPLAY Seesaw springer Swans with backrests

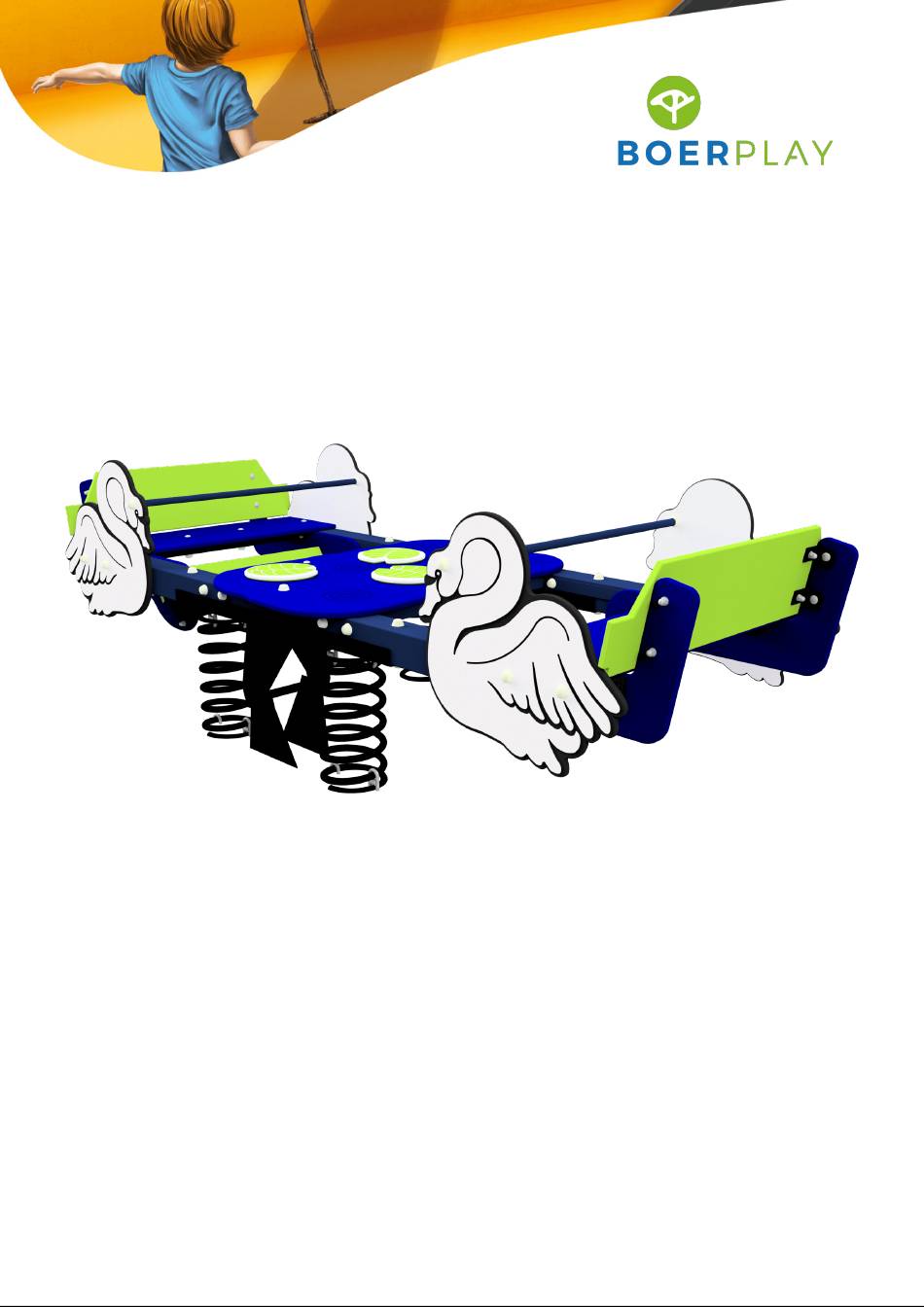

- Page 1 Seesaw springer Swans with backrests BBPE012.0A...
- Page 2 2,84 m Benaming TOE BBP 012 0A Familiewip Title Tekening Opmerking Zwanen Drawing Comment Datum Hoofdafmetingen Main dimensions 7-9-2022 Date...
- Page 3 3,02 m Opvangzone Impact area Obstakelvrije zone Obstacle free zone Benaming TOE BBP 012 0A Familiewip Title Tekening Opmerking Zwanen Drawing Comment Datum Obstakelvrije zone Obstacle free zone 7-9-2022 Date...
- Page 4 1,06 m 1,81 m 1,81 m Grondmarkering Ground level marker 0,46 m Benaming TOE BBP 012 0A Familiewip Title Tekening Opmerking Zwanen Drawing Comment Datum Bodemplan Groundplan 7-9-2022 Date...
- Page 5 Geleverde modules: Supplied modules: Zie tabel See table Montagevolgorde: Assembly sequence: 1 - Graaf de gaten volgens het bodemplan 1 - Dig the holes according to the ground plan 2 - Assembleer 1,2,3,4,5,6 2 - Assemble 1,2,3,4,5,6 3 - Place (4x)8 3 - Plaats (4x)8 4 - Plaats 1 op 8 en verbind deze met elkaar 4 - Place 1 on 8 and attach these with each other...
- Page 6 LOGBOOK Type indication Basic Play Article number BBPE012.0A Product Name Seesaw springer Swans with backrests Maximum fall height 0,8 m Construction year 2023 Certificate 144115 Inspection body Keurmerkinstituut Groeneweg 2e, Zoetermeer 2718AA Zoetermeer Manufacturer name Boer Speeltoestellen Hyacintstraat 2 - 4255 HX Nieuwendijk...
- Page 7 LOGBOOK Inspection and maintenance Date of Time of Name Name Parts to be inspection inspection executor of executor of Found defects replaced maintenance maintenance inspection maintenance Accidents Date Age of Measures taken Probable cause of injury Occurred injury accident victim after accident...
-
Page 8: Inspection And Maintenance Intervals
Inspection and maintenance intervals months Nr. Inspection Maintenance between inspections Verify equipment's stability, junctions and Add missing parts, secure joints, apply missing parts. Inspect bolts, screws and nuts for missing fixing agent and replace absence, jams, corrosion and wear. corroded parts. Replace worn parts and/or remove non- Check suspension for wear. - Page 9 7. Remember that bad maintenance leads to unsafe conditions and notably faster impoverishment of the playground area. 8. Replacement parts can be ordered at the manufacturer with the OEM part numbers on the module drawing. Drawings can be found in the user guide. 9.
- Page 11 Type Progr. Volgnr Bew. Rev. Benaming Opmerking Zeskantmoer M16 - VZ 8.8 SLUITRING M16 x 3 Poermodel 6 9802050060 Benaming MOD OBT 006 001 Poer model 6 Title Tekening Opmerking 150 KG Drawing Comment BOER Datum Samenstelling module Assembly module 5-3-2015 Date SPEELTOESTELLEN...
- Page 12 Type Progr. Volgnr Bew. Rev. Benaming Opmerking Zeskantmoer M10 - VZ 8.8 Zeskantbout ISO 4014 M10 x 120 - VZ 8.8 M10 x 140 - VZ 8.8 Zeskantbout ISO 4014 SLUITRING M10 VZ Veerring M10 - VZ 8.8 84395000012 interplay donut M10 wit interplay dop M10 wit 84395000014 Lamellenstop...
- Page 13 Type Progr. Volgnr Bew. Rev. Benaming Opmerking Zwaan Rechts Benaming MOD BBP 593 K Zwaan Title Tekening Opmerking Rechts Drawing Comment Datum Samenstelling module Assembly module 10-2-2017 Date...
- Page 14 Type Progr. Volgnr Bew. Rev. Benaming Opmerking Zwaan Links Benaming MOD BBP 594 K Zwaan Title Tekening Opmerking Links Drawing Comment Datum Samenstelling module Assembly module 10-2-2017 Date...
- Page 15 Type Progr. Volgnr Bew. Rev. Benaming Opmerking Zeskantmoer M10 - VZ 8.8 SLUITRING M10 VZ Veerring M10 - VZ 8.8 1070 Draadeind M10 x 1070 - VZ 8.8 interplay donut M10 wit 84395000012 interplay dop M10 wit 84395000014 Pijp Ø24 x 2 L=994 mm Benaming MOD BBP 595 G...
- Page 16 Type Progr. Volgnr Bew. Rev. Benaming Opmerking Zeskantmoer M10 - VZ 8.8 Slotbout M10x80 M10 x 130 - VZ 8.8 Slotbout SLUITRING M10 VZ Veerring M10 - VZ 8.8 interplay donut M10 wit 84395000012 interplay dop M10 wit 84395000014 Zitting Familiewip Benaming MOD BBP 596 K...
- Page 17 Type Progr. Volgnr Bew. Rev. Benaming Opmerking Schroef Assy 5 x 35 - RVS A2-70 Zeskantmoer M10 - VZ 8.8 M10x80 Slotbout SLUITRING M10 VZ Veerring M10 - VZ 8.8 interplay donut M10 wit 84395000012 interplay dop M10 wit 84395000014 Vijver Familiewip Lelieblad...
- Page 18 A ( 1 : 4 ) Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Schroef Assy 5 x 50 - RVS A2-70 Dopmoer M10 - VZ 8.8 Zeskantbout ISO 4014 M10 x 160 - VZ 8.8 Slotbout M10 x 40 - VZ 8.8 SLUITRING M10 VZ Ø...
