Summary of Contents for BOERPLAY PSTE105.036

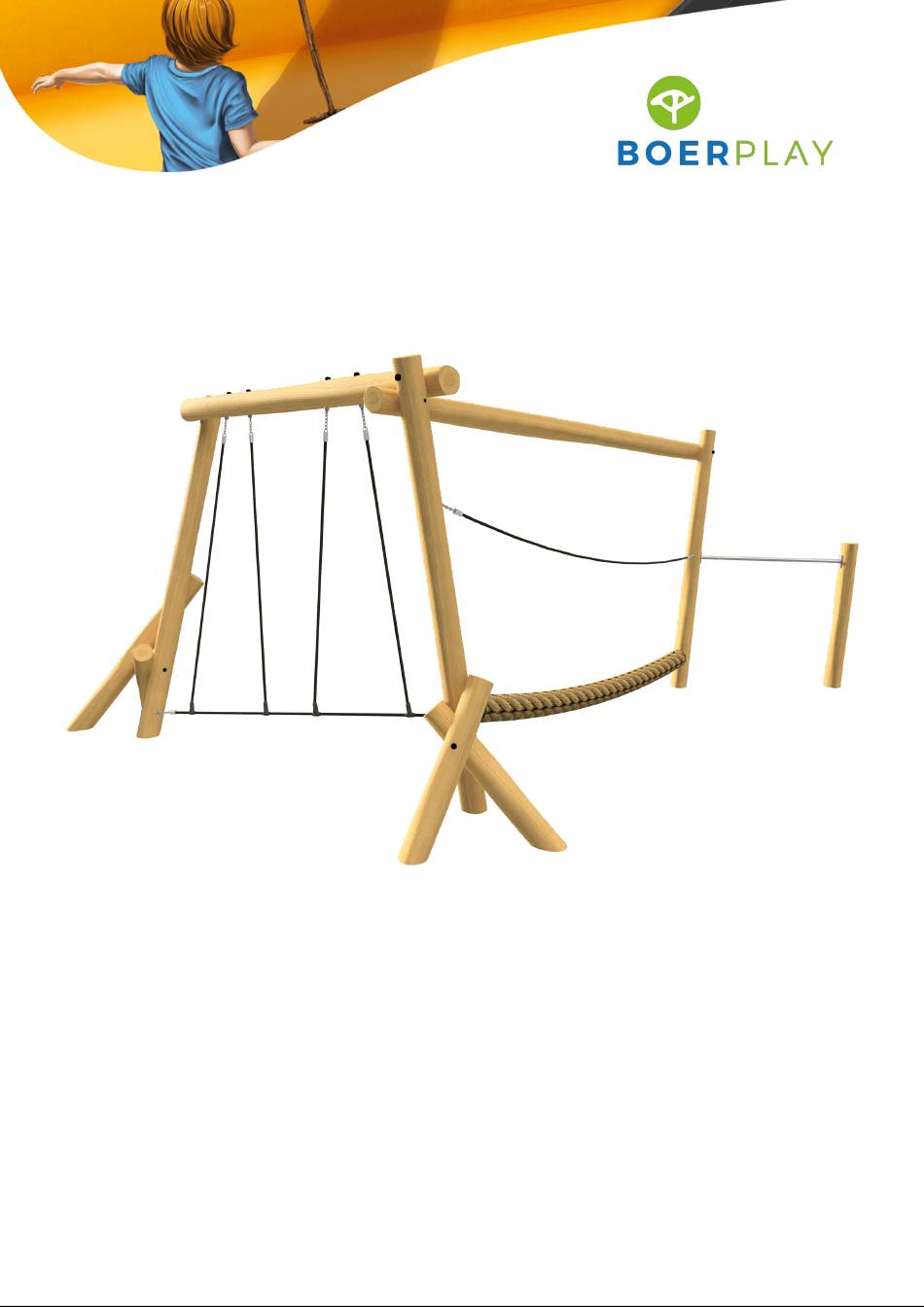

- Page 1 Climbing equipment PSTE105.036...
- Page 2 4,77 m 4,12 m 0,69 m 0,00 m Benaming Klauter & Duikel TOE PST 105 036 Title Tekening Opmerking Adventure Play Drawing Comment Datum Afmetingen Dimensions 11-7-2023 Date...
- Page 3 0,50 m 7,25 m Obstakelvrij EN-1176 Obstacle free EN-1176 Opvangzone Impact area Obstakelvrij WAS Obstacle free WAS Benaming Klauter & Duikel TOE PST 105 036 Title Tekening Opmerking Adventure Play Drawing Comment Datum Obstakelvrije zone Obstacle free zone 11-7-2023 Date...
- Page 4 4,94 m 1,21 m 1,51 m 1,09 m 2,06 m 1,26 m 1,80 m 1,47 m Grondmarkering Ground level marker 0,70 m Benaming Klauter & Duikel TOE PST 105 036 Title Tekening Opmerking Adventure Play Drawing Comment Datum Bodemplan Groundplan 11-7-2023 Date...
- Page 5 Supplied modules: Geleverde modules: See table Zie tabel Assembly instruction: Montageinstructie: - The main dimensions indicate the dimensions of the posts and floors - De hoofdmaten geven de maten van de staanders en vloeren aan - The detailed dimensions show the specific dimensions of the connections - De detailtekeningen geven specifiek de maten van de verbindingen aan - The modules which contain tubes are dimensioned at the top of the flanges - De modules met buizen zijn op de tekeningen bemaat op bovenkant kopplaat...
- Page 6 0,28 m 0,80 m 0,84 m 0,25 m 0,43 m 2,39 m 2,30 m Touwen strak Tighten ropes 1,30 m 1,14 m 0,77 m 0,00 m 2,39 m 1,30 m 1,14 m 0,77 m 0,00 m Benaming Klauter & Duikel TOE PST 105 036 Title Tekening...
- Page 7 LOGBOOK Type indication Adventure Play Article number PSTE105.036 Product Name Climbing equipment Maximum fall height 1,3 m Construction year 2023 Certificate 038624 Inspection body TUV Nederland QA BV Ekkersrijt 4401 5692 DL Son Manufacturer name Boer Speeltoestellen Hyacintstraat 2 - 4255 HX Nieuwendijk...
- Page 8 LOGBOOK Inspection and maintenance Date of Time of Name Name Parts to be inspection inspection executor of executor of Found defects replaced maintenance maintenance inspection maintenance Accidents Date Age of Measures taken Probable cause of injury Occurred injury accident victim after accident...
-
Page 9: Inspection And Maintenance Intervals
Inspection and maintenance intervals months Nr. Inspection Maintenance between inspections Verify equipment's stability, junctions and Add missing parts, secure joints, apply missing parts. Inspect bolts, screws and nuts for missing fixing agent and replace absence, jams, corrosion and wear. corroded parts. Replace worn parts and/or remove non- Check suspension for wear. - Page 10 7. Remember that bad maintenance leads to unsafe conditions and notably faster impoverishment of the playground area. 8. Replacement parts can be ordered at the manufacturer with the OEM part numbers on the module drawing. Drawings can be found in the user guide. 9.
- Page 12 Pagina 1 van 2 8 23 20 17 20 11 Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Draadeind+borgm.+ringen+dop M12, L= 300, RVS A2-70 Draadeind+borgm.+ringen+dop M12, L= 260, RVS A2-70 BORGMOER Houtdraadbout Ø10 X 80 - RVS A2-70 Sluitring M12 - RVS A2-70 5 MM RVS D-sluiting Beschermdop M10-M12...
- Page 13 Pagina 2 van 2 3,06 m 3,08 m 2,99 m 2,83 m 1,84 m 1,38 m 1,70 m 1,31 m 1,26 m 1,15 m 0,80 m 0,00 m 0,00 m 3,07 m 2,97 m 2,99 m 2,83 m 2,44 m 1,92 m 1,70 m 1,31 m...
