Installation and Operation Manual
Single Channel Ultra320 SCSI, PCI-X Host Adapter
Dual Channel Ultra320 SCSI, PCI-X Host Adapter
Dual Channel Ultra320 SCSI, PCI Express Host Adapter
Dual Channel Ultra320 SCSI, Low-Profile PCIe Host Adapter
© 2006 ATTO Technology, Inc. All rights reserved. All brand or product names are trademarks of their
respective holders. No part of this manual may be reproduced in any form or by any means without the
express written permission of ATTO Technology, Inc.
9/2006
ATTO ExpressPCI UL4S
ATTO ExpressPCI UL4D
ATTO ExpressPCI UL5D
ATTO ExpressPCI UL5D LP
Document Control Number: PRMA-0325-000MD
Advertisement
Table of Contents
Related Manuals for ATTO Technology EPCI-UL4D
Summary of Contents for ATTO Technology EPCI-UL4D

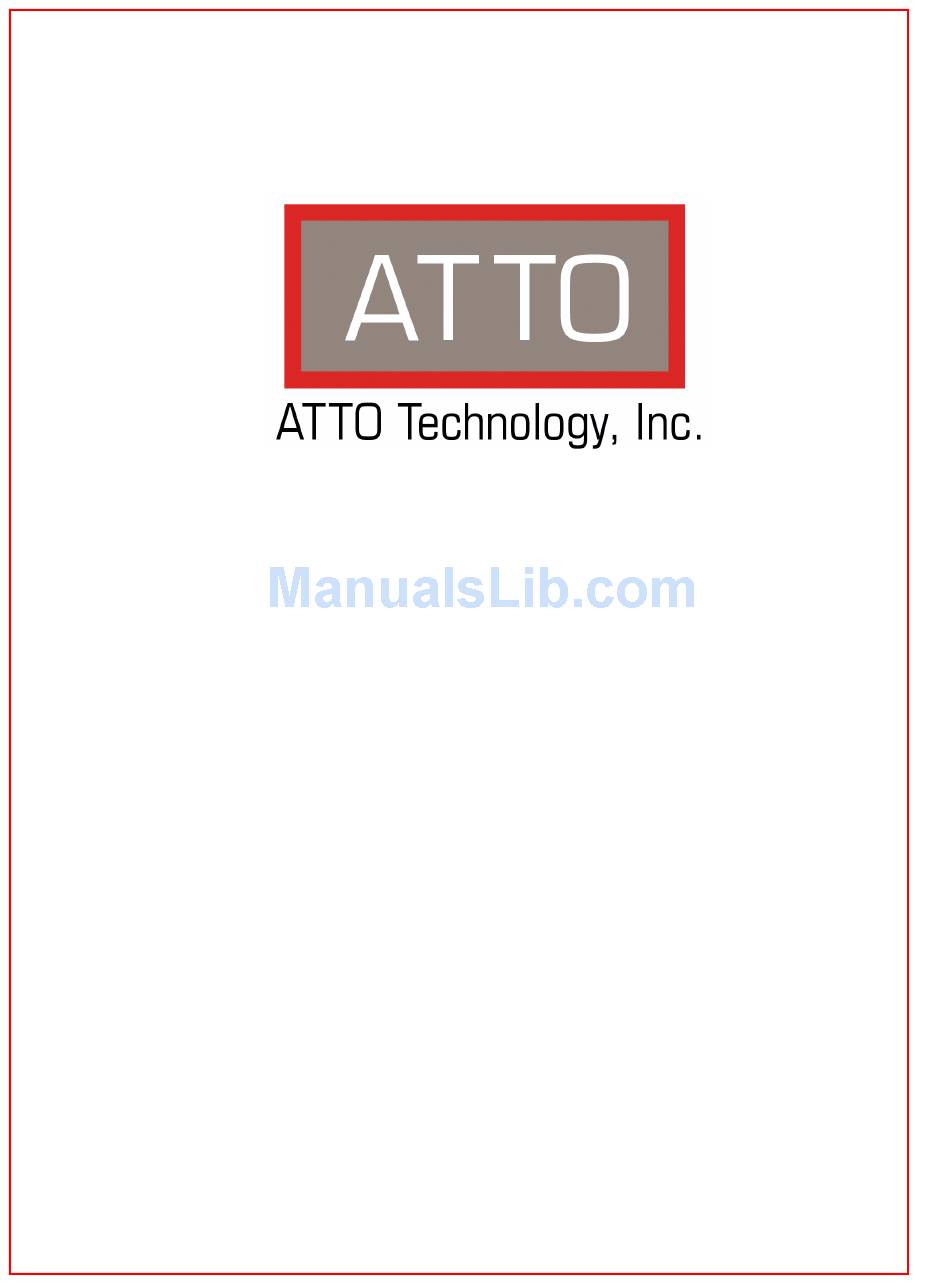

- Page 1 Installation and Operation Manual ATTO ExpressPCI UL4S Single Channel Ultra320 SCSI, PCI-X Host Adapter ATTO ExpressPCI UL4D Dual Channel Ultra320 SCSI, PCI-X Host Adapter ATTO ExpressPCI UL5D Dual Channel Ultra320 SCSI, PCI Express Host Adapter ATTO ExpressPCI UL5D LP Dual Channel Ultra320 SCSI, Low-Profile PCIe Host Adapter ©...
-
Page 4: Table Of Contents
1 SCSI is a key technology for storage SCSI advantages Glossary 2 ATTO ExpressPCI Ultra320 SCSI solutions Ultra 320 SCSI features Common features UL4D, UL4S specific features UL4D specific features UL4S specific features UL5D, UL5D LP specific features UL5D specific features UL5D LP specific features SCSI host adapter selection guide 3 Hardware installation... -
Page 6: Scsi Is A Key Technology For Storage
1 SCSI is a key technology for storage Ultra320 SCSI represents the seventh generation of SCSI technology, an I/O interface that increases performance while maintaining backward compatibility and legacy support. From its roots in 5 MB/sec. transfer rates, SCSI has evolved as the leading interface for disk drive connections in high performance servers. - Page 7 Term Definition double transition Increases the data line frequency to equal that of the request signal, allowing sampling on clocking both the leading and trailing edges of the request signal. Clocking can be set to ensure compatibility with legacy devices. flow control The target indicates to the initiator when the last packet of a data stream will be transferred so that the initiator can flush FIFOs and terminate pre-fetch sooner than previously possible.
-
Page 8: Atto Expresspci Ultra320 Scsi Solutions
2 ATTO ExpressPCI Ultra320 SCSI solutions The Ultra320 SCSI host adapter represents the seventh generation of SCSI technology, an I/O interface that is committed to increased performance while maintaining backward compatibility and legacy support. The ATTO ExpressPCI UL4S is a single channel Ultra320 SCSI, PCI-X host adapter, the ATTO ExpressPCI UL4D is a dual channel Ultra320 SCSI, PCI-X host adapter, and the ATTO ExpressPCI UL5D and UL5D LP are dual channel Ultra 320 SCSI PCIExpress (PCIe) host adapters. -
Page 9: Ul4D Specific Features
• 0.56 typical/0.59 max. Amps @ + 12.0 VDC Dual Channel-- 2 independent channels ExpressPCI Ultra 320 ExpressPCI Ultra 320 640 MB/sec • • EPCI-UL5D EPCI-UL5D LP ATTO ExpressPCI Ultra320 SCSI solutions 640 MB/sec • • • • • EPCI-UL4D... -
Page 10: Hardware Installation
3 Hardware installation Install the ATTO ExpressPCI Ultra320 host adapter and attach your SCSI devices to it using the instructions below. To get the best performance from your ATTO Express Ultra320 host adapters, use Ultra 320 SCSI devices. CAUTION CAUTION Remember to back up your system data before changing or installing hardware. - Page 11 Hardware installation...
-
Page 12: Cabling And Termination
3.1 Cabling and termination Cables and devices must be chosen to maximize performance and minimize the electrical noise from the high-speed data transfers available with the SCSI protocol. Cabling and termination methods become important considerations. Exhibit 3.1-1 The following table lists the maximum number of devices you may connect at specific cable distances using differential and single-ended SCSI in various SCSI environments. - Page 13 • Use an LVD terminator if you are only using LVD devices. Although you can use a Single-Ended terminator, all devices will be limited to Ultra SCSI speeds. Single-Ended devices require a Single-Ended terminator. If you use an LVD terminator with Single- Ended devices, the system may hang or devices may not be seen on the SCSI bus.
-
Page 14: Installing Drivers
After installing the ATTO ExpressPCI host adapter, you must configure your system to recognize and use it by installing drivers for your operating system. Note If you already have one or more ExpressPCI adapters installed and you are installing additional adapter(s), you do not need to perform any of these procedures unless you are updating a previously installed driver. -
Page 15: Updating Hardware Flash
5 Updating hardware flash ATTO ExpressPCI adapters ship with the latest firmware installed. If you are performing a new adapter installation, you do not need to update the firmware. If you are upgrading a previously installed driver, update the adapter firmware to ensure proper operation. Visit the ATTO Technology website, , for the latest drivers and www.attotech.com... -
Page 16: Appendix A Standards And Compliances
This Declaration will only be valid when this product is used in conjunction with other CE approved devices and when the entire system is tested to the applicable CE standards and found to be compliant. The EPCI-UL4D-0R0, EPCI-UL4S-0R0, EPCI-UL5D-0R0 and EPCI-UL5D- L00 comply with Directive 2002/95/EC on the Restriction of the Use of Hazardous Substances in Electrical and Electronic Equipment (RoHS). -
Page 17: Appendix B Atto Product Guide
Appendix B ATTO product guide Contact an ATTO Technology authorized sales representative to order. SCSI adapter selection guide Product Features Max. transfer rate (MB/sec.) Low Voltage Differential Single-ended SCSI Number of SCSI Channels Number of SCSI IDs supported Low profile Large file transfers Cable distances (m) 32-bit PCI compatible... -
Page 18: Celerity Fc Storage Adapter Selection Guide
Celerity FC storage adapter selection guide Product Features Fibre Channel Ports FC protocol Maximum Transfer Rate (half duplex) Maximum Transfer Rate (full duplex) Bus Type Bus Characteristics Optical Interface Maximum Cable Length Low Profile form factor Advanced Data Streaming (ADS™) Technology Software RAID support Developer's Kit (Target Mode &... -
Page 19: Appendix C Contact Atto Technology, Inc
Appendix C Contact ATTO Technology, Inc. Customer service, sales information and technical support are available by phone Monday through Friday, Eastern Standard Time 8:00 a.m. to 8:00 p.m., or by e-mail and web site 24-hours a day. ATTO Technology, Inc. 155 CrossPoint Parkway Amherst, New York 14068 (716) 691-1999 •...
