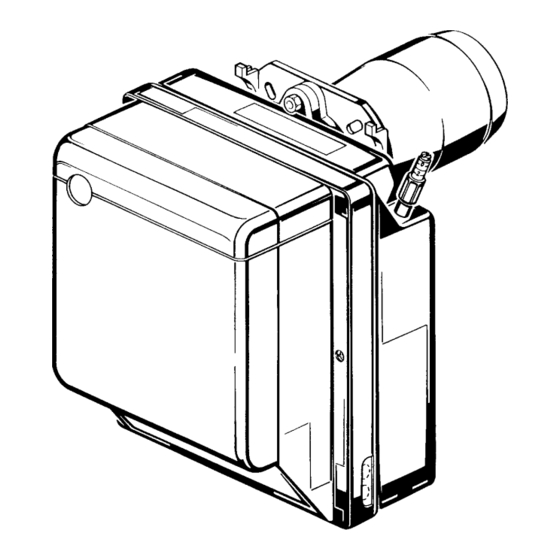

TECHNICAL DATA 2.1 TECHNICAL DATA TYPE 393 T1 – – Output - Thermal power 15 kg/h 178 kW Fuel Gas oil, viscosity 4 – 6 mm /s at 20 °C ± Electrical supply Single phase, 50Hz 230 V Motor Run current 1.9 A –...
INSTALLATION THE BURNER MUST BE INSTALLED IN CONFORMITY WITH LEGISLATION AND LOCAL STANDARDS. 3.1 BOILER FIXING Put on the flange (1) the screw and two nuts, (see Fig. 3). Widen, if necessary, the insulating gasket holes (4). Fix the flange (1) to the boiler door (3) using screws (5) and (if necessary) the nuts (2) interposing the ...
3.3 HYDRAULIC SYSTEMS WARNING: The pump is designed to allow working with two pipes. Fig. 6 In order to obtain one pipe working it is necessary to unscrew the return plug (2), remove the by-pass screw (3) and then screw again the plug (2). (See Fig. 6). Before starting the burner make sure that the return ...
3.4 ELECTRICAL WIRING NOTES: WARNING – Wires of min. 1 mm section. DO NOT EXCHANGE NEUTRAL WITH PHASE (Unless requested otherwise by local standards and legislation). 50Hz 230V – The electrical wiring carried out by the installer must be in compliance with the rules in force in PE L the Country.
WORKING 4.1 COMBUSTION ADJUSTMENT In conformity with EN 267 the application of the burner on the boiler, adjustment and testing must be carried out observing the instruction manual of the boiler, including verification of the CO and CO concentration in the flue gases, their temperatures and the average temperature of the water in the boiler.
4.3 ELECTRODES ADJUSTMENTS (see Fig. 12) ATTENTION Lean the diffuser disc-holder assembly (1) on the nozzle-holder (2) and lock it by screw (3). For prospective adjustments loosen screw (4) and move the electrodes assembly (5). To have access to the electrodes WARNING MEASURES MUST BE Fig.
MAINTENANCE The burner requires periodic maintenance carried out by a qualified and authorised technician in conformity with legislation and local standards. Maintenance is essential for the reliability of the burner, avoiding the excessive consumption of fuel and consequent pollution. Before carrying out any cleaning or control always first switch off the electrical supply to the burner acting on the main switch of the system.
FAULTS / SOLUTIONS Here below you can find some causes and the possible solutions for some problems that could cause a fail- ure to start or a bad working of the burner. A fault usually makes the lock-out lamp light which is situated inside the reset button of the flame control (3, Fig.
