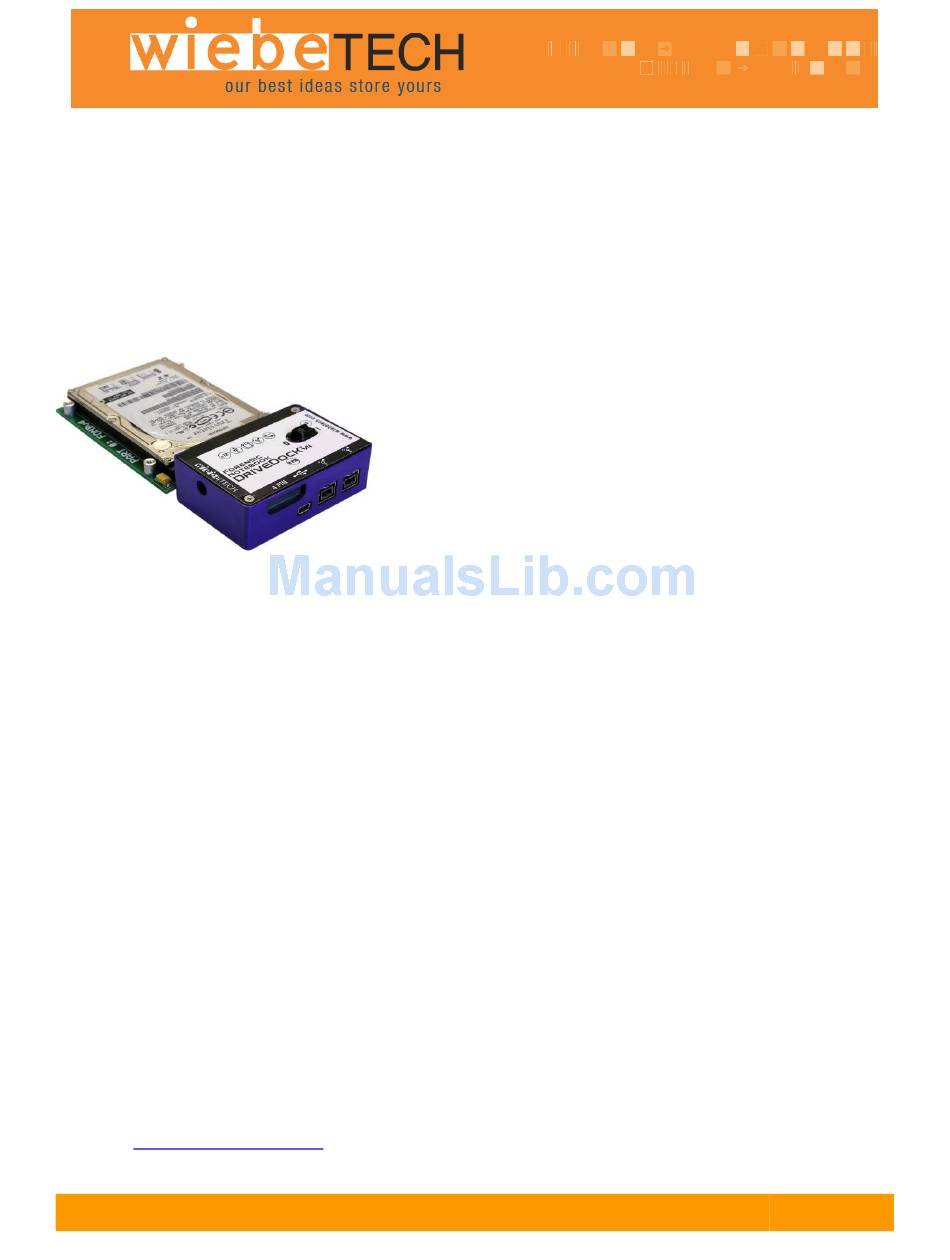

Forensic Notebook DriveDock™ v4
• Retrieve data from 2.5" ATAPI drives through FireWire 800 (400 compatible) or USB 2.0 –
Forensic Notebook DriveDock v4 is the best solution for accessing data from 2.5" evidentiary drives.
With 2 FireWire ports, it's daisy-chainable for more versatility.
• Rugged design, built to last – Grab it and go! Forensic Notebook DriveDock is tough as nails and
made to last. The small and rugged case contains a complete, high speed Oxford Semiconductor
OXFW922 bridge and is constructed from briefcase-tough aluminum for durability.
• Bus-powered through FireWire, plus two options for external power
Forensic Device User Advisory
We recommend that you perform a final check on this product.
Prior to first use, please verify that the write-blocking function of this product is working properly. This is
easily done: attach a known good formatted drive, and verify that the drive mounts properly on your
computer. Use a drive that has data on it that you are willing to overwrite. Transfer files to the drive. The
files will appear to transfer to the drive. Thereafter, unmount the drive and remount the drive. The files
that you wrote to the drive should not appear after the drive is remounted. If they do appear, there is a
problem with your Forensic Device, and you should contact our support department for further
instructions.
WiebeTech support may be reached at:
(866) 744-8722 (toll free)
(316) 744-8722 (international)
(316) 744-1398 (fax)
support@wiebetech.com
F o r e n s i c N o t e b o o k D r i v e D o c k v 4 U s e r M a n u a l
USER'S MANUAL
Revised March 10, 2008

Features

• Portable and rugged write-blocked solutions to image
drives in the field – WiebeTech's proprietary write-blocking
technology offers easy read-only access to suspect hard
drives.
• Now with HPA/DCO detection. Forensic NoteBook
DriveDock v4 will recognize and report the presence of an
HPA or DCO on a hard drive.
• Multiple status indicators – show power input/output status,
hard drive access, host attachment, and write-blocking status.
(email)
- 1 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FONBv4 and is the answer not in the manual?

Questions and answers

Related Manuals for WiebeTech FONBv4

Summary of Contents for WiebeTech FONBv4

  • Page 1 USER’S MANUAL Revised March 10, 2008 Features • Portable and rugged write-blocked solutions to image drives in the field – WiebeTech's proprietary write-blocking technology offers easy read-only access to suspect hard drives. • Now with HPA/DCO detection. Forensic NoteBook DriveDock v4 will recognize and report the presence of an HPA or DCO on a hard drive.

  • Page 2: Installation Instructions

    WiebeTech LLC Installation Instructions Check the accessories with your Forensic Notebook DriveDock. Please contact WiebeTech if any items are missing or damaged. The box should contain: Forensic Notebook DriveDock AC adapter & power cord FireWire 800 cable FireWire 800 to 400 converter cable...
  • Page 3 The Forensic Notebook DriveDock v4 is Plug-and-Play compatible with Windows XP. No drivers are needed. FireWire 800 ports are FireWire 400 host compatible (a FireWire 800-400 cable or adapter such as WiebeTech’s Cable-11 is necessary for use with FireWire 400 ports). The USB2 port is USB 1.1 compatible.

  • Page 4: Usage With Macintosh Computers

    The Forensic Notebook DriveDock v4 is Plug-and-Play compatible under Mac OS 9.2 and OS X. No drivers are needed. FireWire 800 ports are FireWire 400 host compatible (a FireWire 800-400 cable or adapter such as WiebeTech’s Cable-11 is necessary for use with FireWire 400 ports). The USB2 port is USB 1.1 compatible. Mounting and Ejecting Volumes Assuming the drive format is recognizable by Mac OS, an icon representing the drive’s...
  • Page 5 Use a power supply with an RFI reducing ferrite approximately 5 inches from the DC plug. If you have any questions or problems, please contact interested in purchasing more WiebeTech products, check our website or contact sales@wiebetech.com. We appreciate being able to serve you!
