Features
• Dual daisy-chainable FireWire 800 ports (400
compatible) work with any FireWire host at blazing fast
speeds!
• USB2 port allows attachment to all hosts, including
PCs, Macs, and Linux
• Self-aligning connector provides easy attachment of
IDE/ATA 3.5" drives
• Two options for power input: Use the included AC
adapter, or use a 4-wire connector from a computer's power supply
• LEDs show when unit is receiving power as well as power output status
• Power status LED verifies that unit is switched on (or off)
• Power switch helps prevent FireWire port damage during plug insertion
• Host-detection LEDs indicate connection to either FireWire or USB host
• Access LED shows hard drive activity
• Small size allows you to take it anywhere
• Aluminum case is briefcase tough, with excellent heat dissipation
• World-compatible AC adapter accepts 100-240VAC so you can trot the globe
Installation Instructions
1.
Check the accessories packaged with your ComboDock. Please contact WiebeTech if any items are missing
or damaged. The box should contain:
ComboDock
AC adapter & power cord
FireWire 800 cable
USB Cable
Metal bottom plate
Hard drive screws
Rubber bumpers
Manual and Warranty information
2.
Attach bottom plate to your 3.5" hard drive. This step is optional but
recommended. The purpose of the bottom plate is to provide protection to your
drive electronics and aid heat dissipation. Attach the bottom plate to your drive using
the four screws supplied. Attach a rubber bumper to each corner. Extra bottom
plates are available from WiebeTech (p/n BPLATE).

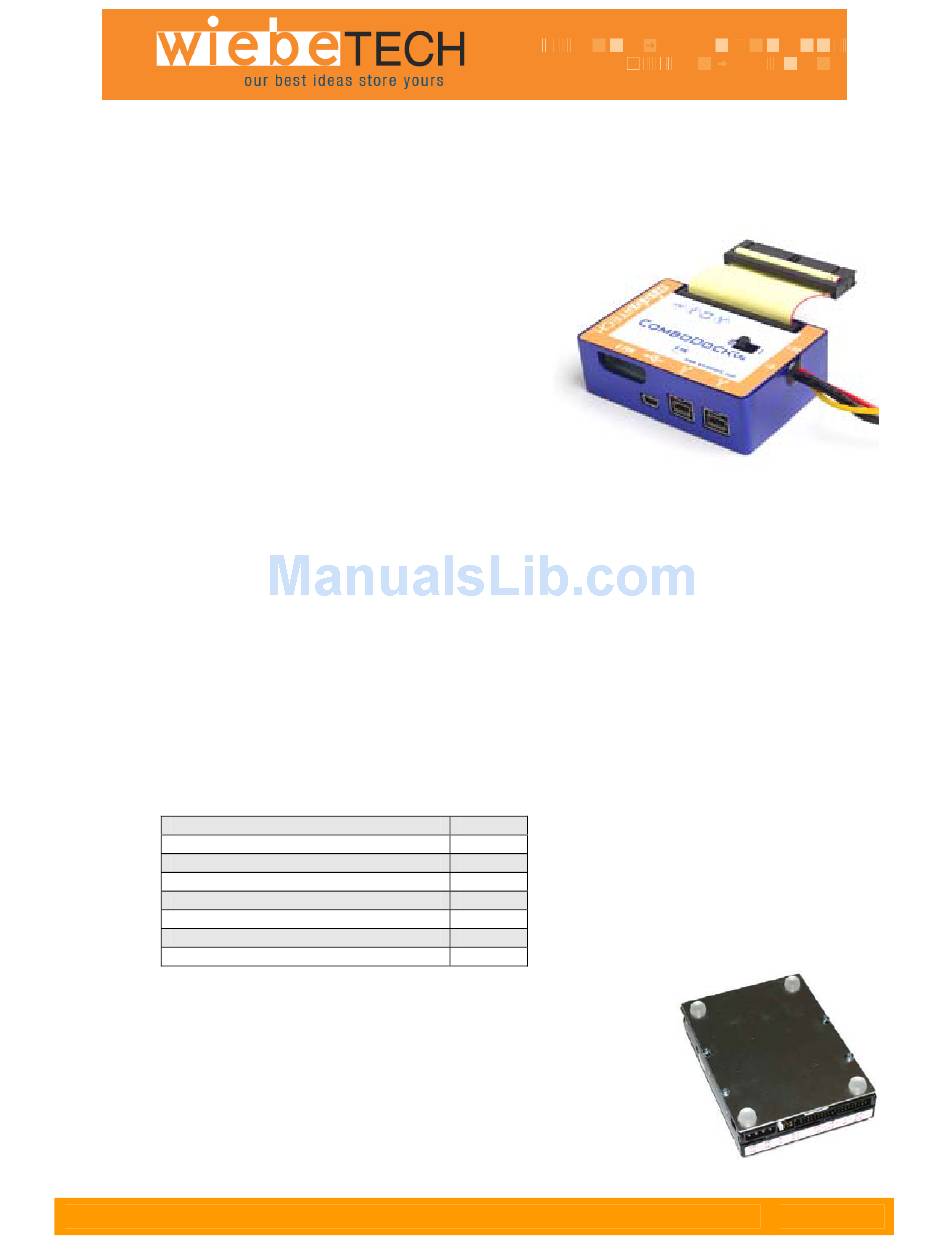

C o m b o D o c k v 4 U s e r ' s M a n u a l
ComboDock™ v4
USER'S MANUAL
Revised January 9, 2007
1
1
1
1
1
4
6
(on CD)
