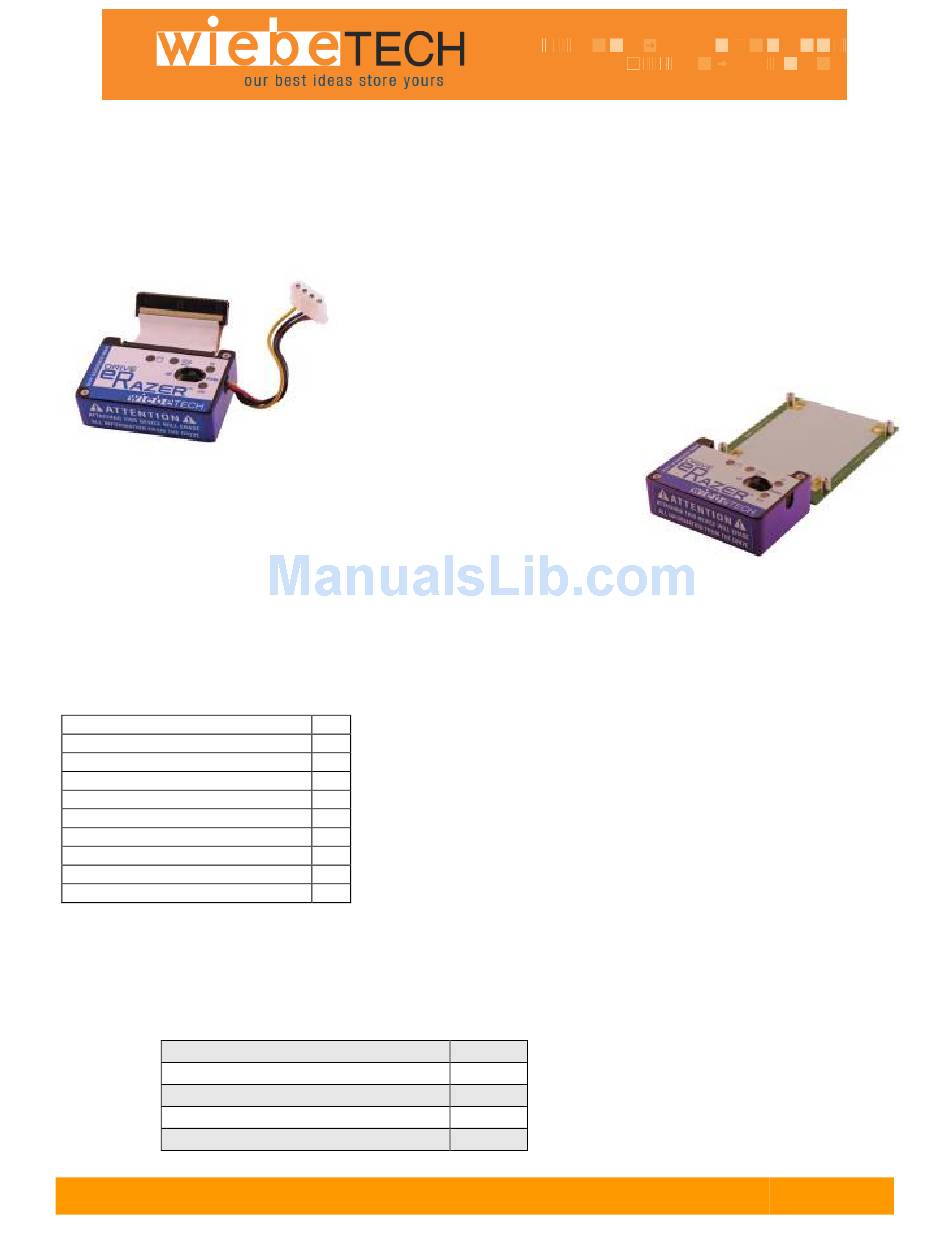

Connecting with Versatile Bundle Mode Specifications Switching Modes Technical Specifications Installation Instructions Check the accessories packaged with your eRazer™. Please contact WiebeTech if any items are missing or damaged. The box should contain: eRazer™ unit AC adapter & power cord Metal drive plate...
Page 2
WiebeTech LLC Take a moment to familiarize yourself with the parts of your new eRazer™. This will aid you in the remaining steps. Connectors: IDE ribbon cable, connects to drive or adapter DC +12V power input from AC adapter Power switch (OFF / ERASE) 4-wire power output, connects to drive Status LED functions.
Page 3
Attach a rubber bumper to each corner. Extra bottom plates are available from WiebeTech (p/n BPLATE). Configure the jumpers on your IDE/PATA hard drive. The drive must be set to the Master setting. Consult the instructions for your drive (some drives display configuration information on the drive’s label).
Page 4
WiebeTech LLC Connecting with your Versatile Bundle Access a 2.5 IDE/PATA drive by connecting the 3.5″ to 2.5″ adapter. The pins on the 3.5″ side connect in such a way that the missing pin (pin 20) on the adapter will line up with the filled in pin hole on the IDE ribbon cable from the eRazer.
Page 6
Use a power supply with an RFI reducing ferrite approximately 5 inches from the DC plug. If you have any questions or problems, please contact interested in purchasing more WiebeTech products, check our website or contact sales@wiebetech.com. We appreciate being able to serve you! D r i v e e R a z e r ™...
