DEALER / INSTALLER
END USER
A-FRAME COUPLER WITH LOWER SUPPORT PLATE (SEE FIGURE 6)
MODELS APPLICABLE
MAXIMUM LIFT CAPACITY
RETRACTED HEIGHT
VERTICAL TRAVEL
POWER REQUIREMENTS
OUTER TUBE DIAMETER
POWER CORD LENGTH
FOOT PAD DIAMETER
LED WORK LIGHTS
SHIPPING WEIGHT
See www.huskytow.com for Warranty Information / Tech Support / Product Updates.
©2023 Keystone Automotive Operations Inc. All Rights Reserved. September 2023. REV1

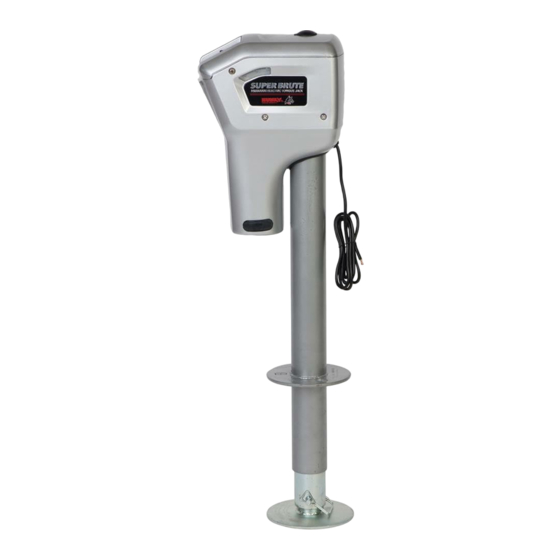

SUPER BRUTE ELECTRIC TRAILER JACK
( HSB4000 & HSB5000R )
WITH SMART STOP
Assembly, Installation, Operation, and Maintenance Instructions
Provide a copy of these instructions to the end user of this product. These instructions provide
important operating and safety information for proper usage of this product. Demonstrate the
proper use of the product with the end user. Have the end user demonstrate that they understand
the proper use of the product.
Read and follow all instructions included in this manual. Ask your Dealer/Installer for assistance if
you do not understand the proper use of the product. Never remove any decals from the product.
Failure to follow these instructions can result in injury or death.
TOOLS & COMPONENTS REQUIRED
THREE (3) GRADE 5, 1" LONG, 3/8"-16 UNC BOLTS (INCLUDED)
THREE (3) 3/8" FLAT WASHERS (INCLUDED)
THREE (3) 3/8" STAR WASHERS (INCLUDED)
9/16" WRENCH
TORQUE WRENCH
WIRE CUTTERS
WIRE STRIPPERS
CRIMPERS OR SOLDERING IRON
SPECIFICATIONS
HSB4000; HSB5000R
4,000 LB / 5,000 LB (CONTINUOUS USE)
30-5/8"
18"
12 VOLT DC
2-1/4"
6 FT OF #10 GAUGE WIRE
5-1/2"
ON 3 SIDES FOR EASY NIGHTTIME HOOKUPS
HSB4000 – 25-1/2 LB & HSB5000R – 25-1/2 LB
PART
82022 & 82084
NUMBER
INSTALL
30 MINUTES
TIME
Page 1 of 7
Advertisement
Related Manuals for Husky 82022
Summary of Contents for Husky 82022
- Page 1 SUPER BRUTE ELECTRIC TRAILER JACK PART 82022 & 82084 ( HSB4000 & HSB5000R ) NUMBER WITH SMART STOP INSTALL 30 MINUTES TIME Assembly, Installation, Operation, and Maintenance Instructions Provide a copy of these instructions to the end user of this product. These instructions provide important operating and safety information for proper usage of this product.
-
Page 2: Installation
FOR MANUAL HANDLE 3. If replacing an old jack, remove the old jack from LIGHT the coupler. SWITCH BRAKE BRAKE 4. Insert the Husky Super Brute into the jack hole RELEASE ® RELEASE HANDLE HANDLE and align the bolt holes so the motor housing is facing... -
Page 3: Manual Operation
2. Remove the rubber access covers on the top of the brake on a loaded jack. Due to the Husky Super ®... -
Page 4: Remote Control
REMOTE CONTROL ( ONLY INCLUDED WITH THE HSB5000R ) Before using remote control, you must press the ON Indicator Light Figure 3 button. LEDs will flash momentarily to confirm the remote has been turned ON. DOWN Press the UP button to extend the jack (raise the trailer). Press the DOWN button to retract the jack (lower the OFF / LOCKED trailer). -
Page 5: Replacement Parts
3/8” SAFETY LOCK PIN 32335 UNIVERSAL CONNECTOR STORAGE KIT 81497 MAINTENANCE Due to the design of the Husky Super Brute’s ® low-friction ball screw, the inner assembly of the jack does not require regular lubrication. But to keep your jack in good, functional condition, fully extend the jack and clean the inner jack tube once per year. - Page 6 ALTERNATIVE 7-WAY PLUG WIRING To wire the Husky Super Brute jack through a 7-way ® Figure 5 plug instead of wiring to the trailer battery. Black Terminal: 12V Battery Power / Auxiliary Power 1. Take the black wire from the jack and wire into the black terminal of the 7-way plug.
-
Page 7: Warranty Terms
Husky Towing Products and Keystone Automotive Operations Inc. with proof of purchase by the original purchaser. The original purchaser shall pay all transportation and shipping costs associated with the return of the defective product and the defective product shall become the property of Keystone Automotive Operations Inc.
