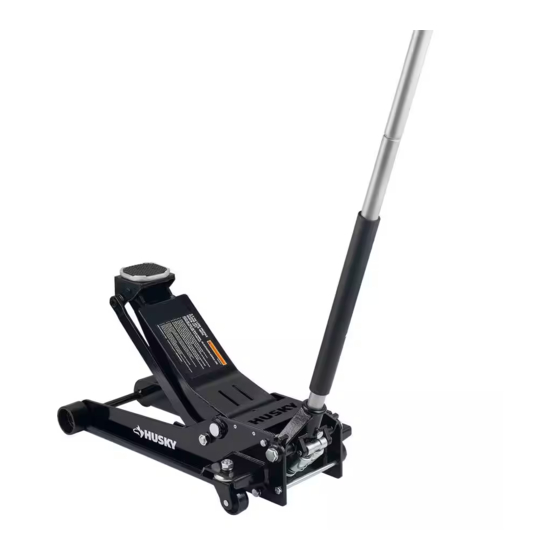

3.5 ton low profile floor jack with speedy lift
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
USE AND CARE GUIDE
3.5 TON LOW PROFILE FLOOR JACK
WITH SPEEDY LIFT
Questions, problems, missing parts?
Before returning to the store, call
Husky Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST Saturday
1-888-HD-HUSKY
HUSKYTOOLS.COM
We appreciate the trust and confidence you have placed in Husky through the purchase of this jack kit. We strive to
continually create quality products designed to enhance your home. Visit us online to see our full line of products
available for your home improvement needs. Thank you for choosing Husky!
THANK YOU
Item #1003 930 514
Model #HD4795-DIP

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HD4795-DIP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Husky HD4795-DIP

Summary of Contents for Husky HD4795-DIP

  • Page 1 THANK YOU We appreciate the trust and confidence you have placed in Husky through the purchase of this jack kit. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products...

  • Page 2: Table Of Contents

    Contact the Customer Service at 1-888-HD-HUSKY or visit www.huskytools.com.

  • Page 3: Pre-Operation

    Pre-Operation BEFORE ASSEMBLY AND OPERATION Compare all parts with the Package Contents lists in this manual. If any part appears missing or damaged, do not use this product. Contact the Customer Service at 1-888-HD-HUSKY or visit www.huskytools.com. SPECIFICATIONS Model Jack Dimensions...

  • Page 4: Jack Operation

    Jack Operation Inserting the handle Placing the vehicle in park □ Place the vehicle in PARK and apply the □ Insert the handle (B) into the handle socket of emergency brake. the jack (A). Ensure the pin on the lower end of the handle (B) snaps into the socket slot.

  • Page 5: Tool Set Up

    Tool Set Up ATTACHING THE HANDLE Fasten the Upper handle to the Lower Handle. Loosen the Set Screw and insert the assembled Handle into the Handle Socket. Tighten the Set Screw. HUSKYTOOLS.com Please contact 1-888-HD-HUSKY for further assistance.

  • Page 6: Bleeding

    Tool Set Up (continued) BLEEDING Loosen the Fill Screw. Insert the Handle into the Handle Socket to operate the Release Valve. Turn the Handle counterclockwise to open the valve. Pump the Handle up and down quickly several times to purge air from the system. Tighten the Fill Screw.

  • Page 7: Care And Cleaning

    OIL PAN NOTE: When draining oil, use a proper container and always follow all local and state waste disposal guidelines. HUSKYTOOLS.com Please contact 1-888-HD-HUSKY for further assistance.

  • Page 8: Replacing Hydraulic Jack Oil

    Releasing pressurized air Filling with new oil □ □ Rapidly pump the jack handle 6 to 8 strokes to Using a good grade of SAE 5W hydraulic release any pressurized air. jack oil, fill the reservoir to the bottom of the threads in the oil fill hole.

  • Page 9: Cleaning The Jack

    E. Recheck oil level and re-fill as needed. F. Reinstall the Oil Filler Plug. 4. Wipe dry with a clean cloth. Then, store the jack in a safe, dry location out of reach of children and other non-authorized people. HUSKYTOOLS.com Please contact 1-888-HD-HUSKY for further assistance.

  • Page 10: Troubleshooting

    Troubleshooting Problem Probable Cause Solution □ □ The jack will not lower There is air in the hydraulic Purge air from the hydraulic completely. system. system. □ □ The release valve is stuck. Transfer the weight load and clean the valve. The jack will not hold weight.

  • Page 11: Exploded View

    Spring Washer M18 Retaining Ring M16 Retaining Ring M30 Lifting Arm Assembly Handle Yoke Roller Grease Fitting Retaining Ring M12 Split Pin 4x55 Set Screw-Handle Saddle Handle Yoke Saddle Screw Handle Bumper Rubber Pad HUSKYTOOLS.com Please contact 1-888-HD-HUSKY for further assistance.
  • Page 12 Questions, problems, missing parts? Before returning to the store, call Husky Customer Service 8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST Saturday 1-888-HD-HUSKY WWW.HUSKYTOOLS.COM Retain this manual for future use.
