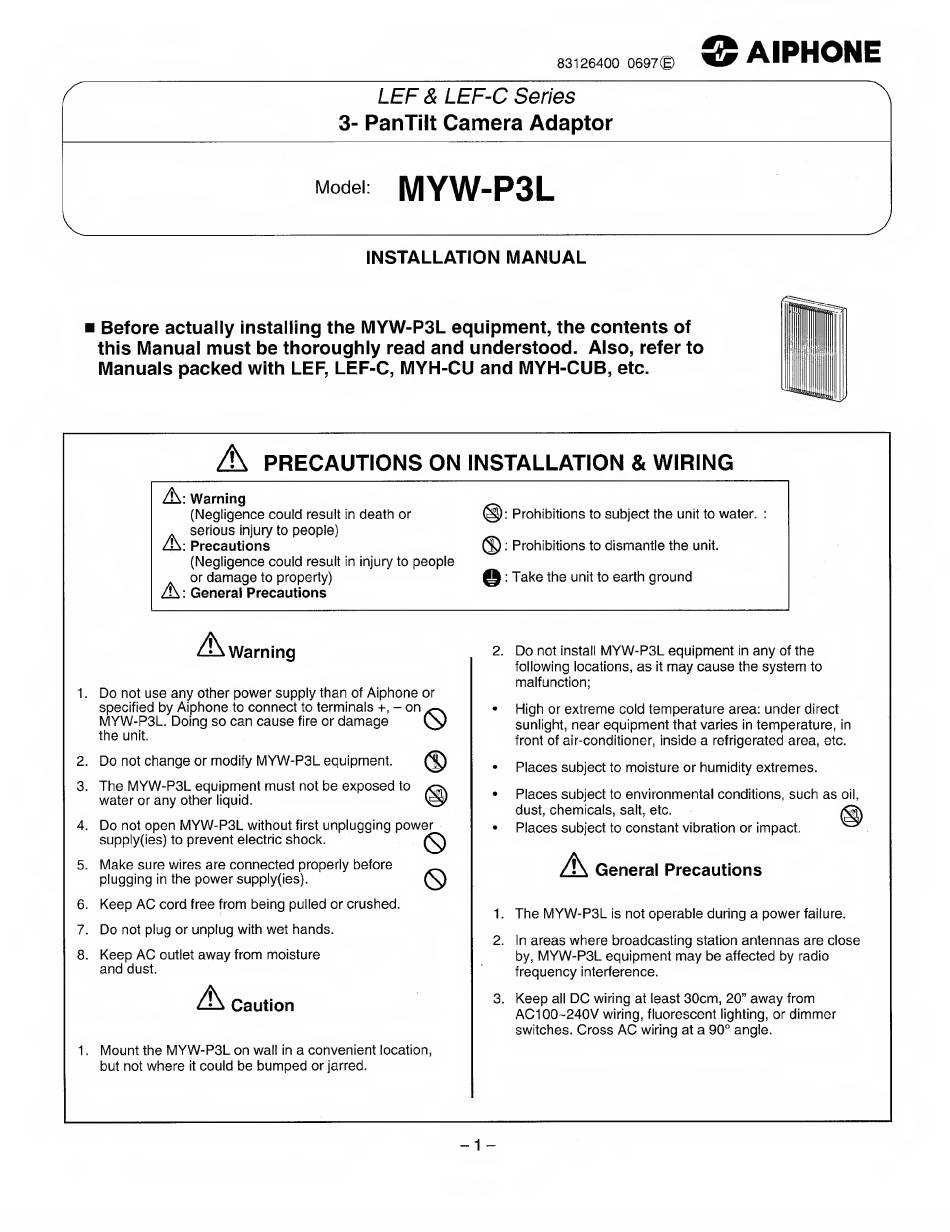

Aiphone LEF Series Installation Manual

83126400 0697©
® AIPHONE
LEF& LEF-C Series
3- PanTilt Camera Adaptor
Model:
V_
MYW-P3L
INSTALLATION MANUAL
■ Before actually installing the MYW-P3L equipment, the contents of
this Manual must be thoroughly read and understood. Also, refer to
Manuals packed with LEF, LEF-C, MYH-CU and MYH-CUB, etc.
A PRECAUTIONS ON INSTALLATION & WIRING
A: Warning
(Negligence could result in death or (§): Prohibitions to subject the unit to water. :
serious injury to people)
Precautions ^: Prohibitions to dismantle the unit.
(Negligence could result in injury to people
or damage to property) @ : Take the unit to earth ground
nS : General Precautions
A
Warning
1. Do not use any other power supply than of Aiphone or
specified by Aiphone to connect to terminals +, - on
MYW-P3L. Doing so can cause fire or damage Qy
the unit.
(D
2. Do not change or modify MYW-P3L equipment.
3. The MYW-P3L equipment must not be exposed to xrx
water or any other liquid.
4. Do not open MYW-P3L without first unplugging power
supply(ies) to prevent electric shock. 0
5. Make sure wires are connected properly before
plugging in the power supply(ies).
6. Keep AC cord free from being pulled or crushed.
7. Do not plug or unplug with wet hands.
8. Keep AC outlet away from moisture
and dust.
Caution
1. Mount the MYW-P3L on wall in a convenient location,
but not where it could be bumped or jarred.
2. Do not install MYW-P3L equipment in any of the
following locations, as it may cause the system to
malfunction;
• High or extreme cold temperature area: under direct
sunlight, near equipment that varies in temperature, in
front of air-conditioner, inside a refrigerated area, etc.
• Places subject to moisture or humidity extremes.
Places subject to environmental conditions, such as oil,
dust, chemicals, salt, etc.
Places subject to constant vibration or impact.
General Precautions
1. The MYW-P3L is not operable during a power failure.
2. In areas where broadcasting station antennas are close
by, MYW-P3L equipment may be affected by radio
frequency interference.
3. Keep all DC wiring at least 30cm, 20" away from
AC100-240V wiring, fluorescent lighting, or dimmer
switches. Cross AC wiring at a 90° angle.
-
1
-
