Important safety instructions:
Please carefully read all instructions before assembling.
For your safety and ease, assembly by two or more adults is recommended.
Keep instructions for future use.
Pre-assembly:
Do not discard any contents until after assembly is complete to avoid accidentally discarding small parts or
hardware.
Remove all parts and hardware from box along with any plastic protective packaging.
Parts List
Item
REST & REMOVABLE SEAT
P1
& REMOVABLE CUSHION
P2
FRONT LEG RIGHT
P3
FRONT LEG LEFT
P4
BACK LEG RIGHT
P5
BACK LEG LEFT
P6
FRONT STRETCHER
P7
BACK STRETCHER
P8
RIGHT STRETCHER
P9
LEFT STRETCHER
Hardware List
Description
Item
H1
Bolts M6 X 50 mm
H2
Bolts M6 X 60 mm
H3
Lock Washer Ø6 x Ø11 x 2mm
H4
Flat Washer Ø6 x Ø16 x 1mm
Allen Wrench 4 mm
H5
H6
Screw JP 8 x 1 3/4"
H7
WHEN PROPERLY ASSEMBLED, THIS ITEM IS SAFE FOR INTENDED USE. SELLER IS NOT LIABLE FOR ANY DAMAGES
RESULTING FROM ITEM BEING IMPROPERLY ASSEMBLED AFTER PURCHASE.
ASSEMBLY INSTRUCTIONS
Description:
Description
Screw Driver ( Not Include )

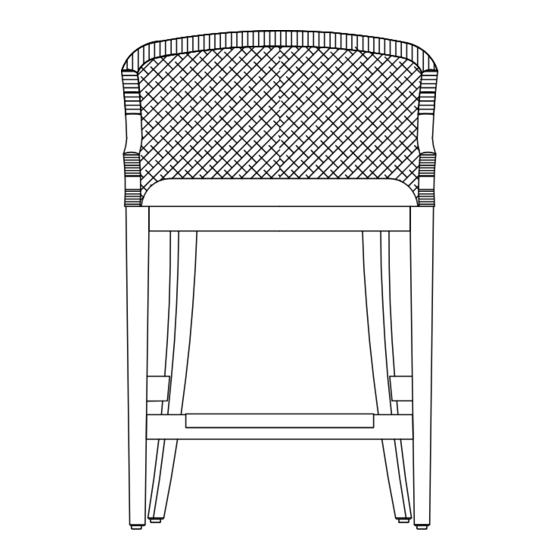

PLAYA COUNTER STOOL
QTY
1
1
1
1
1
1
1
1
1
QTY
4
4
8
8
1
8
Page 1 of 4
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Martha Stewart PLAYA
Summary of Contents for Martha Stewart PLAYA
- Page 1 ASSEMBLY INSTRUCTIONS Description: PLAYA COUNTER STOOL Important safety instructions: Please carefully read all instructions before assembling. For your safety and ease, assembly by two or more adults is recommended. Keep instructions for future use. Pre-assembly: Do not discard any contents until after assembly is complete to avoid accidentally discarding small parts or hardware.
- Page 2 ASSEMBLY INSTRUCTIONS Description: PLAYA COUNTER STOOL Assembly Procedures: Step1. 1) Assemble the Blake Accent Chair on a flat, soft surface such as a carpet or cloth to prevent scratching the finishing. Attach Front legs Right (P2), Attach Front Leg Left (P3) to Chair top (P1) using Allen key (H5), Lock washer (H3), Flat washers (H4), and 50 MM Bolt (H1) and Attach Back Leg Right (P4), Attach Back Leg Left (P5) to Chair top (P1) using ( Don't tighten all bolts on this step ).
- Page 3 ASSEMBLY INSTRUCTIONS Description: PLAYA COUNTER STOOL Step 2: Attach Front Stretcher (P6) to Front Leg Right (P2), Front Leg Left (P3) using Screw Driver (H7), Screw JP 8 x 1 3/4" (H6) and Attach Back Stretcher (P7) to Back Leg Right (P4), Back Leg Left (P5) using Screw Driver (H7), Screw JP 8 x 1 3/4" (H6) (H6)x4 Screw JP 8 x 1 3/4"...
- Page 4 ASSEMBLY INSTRUCTIONS Description: PLAYA COUNTER STOOL Step 4. Turn the assembled chair to an upright position. Assembly is complete. Leveler Note: Levelers on the front legs Disclaimer: When properly assembled, this item is safe for intended use. Seller is not liable for any damages resulting from item being improperly assembled after purchase.
