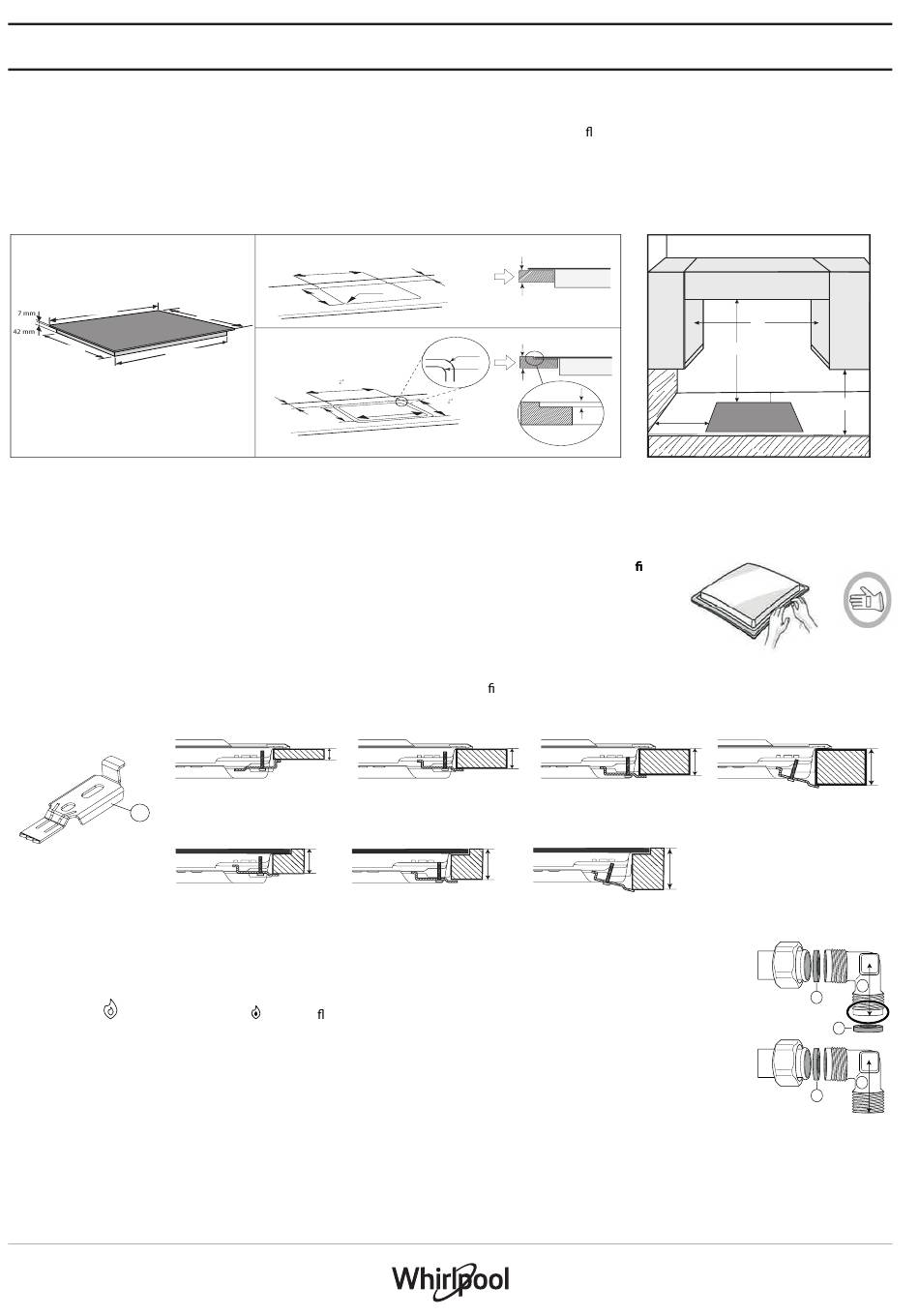

INSTALLATION
TECHNICAL INFORMATION FOR THE INSTALLER
• Use protective gloves for handling, preparing and installing the product.
• This product can be embedded in a worktop 20 ÷ 60 mm thick with standard installation. For ush installation 30 ÷ 68
• If there is no oven beneath the hob, insert a separator panel that has a surface at least equal to the opening in the work surface. This panel must
be positioned at a maximum distance of 150 mm below the upper surface of the work surface but, in no case less than 20 mm from the bottom of
the hob. In the case that you intend to install an oven beneath the hob, make sure that it is equipped with a cooling system.
DIMENSIONS AND DISTANCES TO BE MAINTAINED
590 mm
469 mm
544 mm
NOTE: if distance "A" between the kitchen cabinets is between 600 mm and 730 mm, height "B" must be at least 530 mm. If distance "A"
between the kitchen cabinets is greater than the width of the hob, height "B" must be at least 400 mm. If a hood is installed above the
hob, refer to the assembly instructions for the hood to see the necessary distance.
ASSEMBLY
After having cleaned the perimeter surface, apply the supplied gasket to the hob as shown in the gure.
Position the hob in the worktop opening made respecting the dimensions indicated in the Instruction.
NOTE: the power supply cable must be long enough to permit its upward extraction.
To secure the hob, use the brackets (A) provided with it. Fit the brackets into the relevant bores shown by the arrow and fasten them by means of
their screws in accordance with the thickness of the worktop (see the following gures).
Standard Installation
A
Flush installation
GAS CONNECTION
• Connect elbow (A)* or (B)* supplied with to the hob inlet main pipe and interpose the washer (C) supplied, in
compliance with EN 549.
* Use elbow (A)
for France and elbow (B) for all other destinations.
• After connection to the gas supply, check for leaks with soapy water. Light up the burners and turn the knobs from
max position
to minimum position
•
Standard installation
560 mm
R= 8 mm
482 mm
510 mm
Flush installation
593 mm
Min. 70 mm
560 mm
482 mm
Before applying silicon, the cooktop should be centered in the cut-out
20
30 mm
to check ame stability.
min 20 mm
max 60 mm
Min. 70 mm
min 30 mm
max 68 mm
R= 6,5 mm
R= 8 mm
10 mm
513 mm
30
40 mm
A
750mm
50mm
100mm
40
68 mm
C
C
C
B
60
A
B
