Norfolk DC Smart Series Installation Guide
Thanks for choosing our Norfolk DC Smart Series ceiling fan.
We strongly recommend that you read this manual carefully before installation.
Models Parameters (Fan Only):
MNDC123WN
1220mm 3 Blade DC WiFi Ceiling Fan Matt White/Natural
MNDC123WW
1220mm 3 Blade DC WiFi Ceiling Fan Matt White/Whitewash
MNDC123MW
1220mm 3 Blade DC WiFi Ceiling Fan Matt Black/Walnut
MNDC143WN
1420mm 3 Blade DC WiFi Ceiling Fan Matt White/Natural
MNDC143WW
1420mm 3 Blade DC WiFi Ceiling Fan Matt White/Whitewash
MNDC143MW
1420mm 3 Blade DC WiFi Ceiling Fan Matt Black/Walnut
Models Parameters (Fan and LED Light):
1220mm 3 Blade DC WiFi Ceiling Fan Matt White/Natural
MNDC1233WN
MNDC1233WW
1220mm 3 Blade DC WiFi Ceiling Fan Matt White/Whitewash
MNDC1233MW
1220mm 3 Blade DC WiFi Ceiling Fan Matt Black/Walnut
MNDC1433WN
1420mm 3 Blade DC WiFi Ceiling Fan Matt White/Natural
MNDC1433WW
1420mm 3 Blade DC WiFi Ceiling Fan Matt White/Whitewash
1420mm 3 Blade DC WiFi Ceiling Fan Matt Black/Walnut
MNDC1433MW

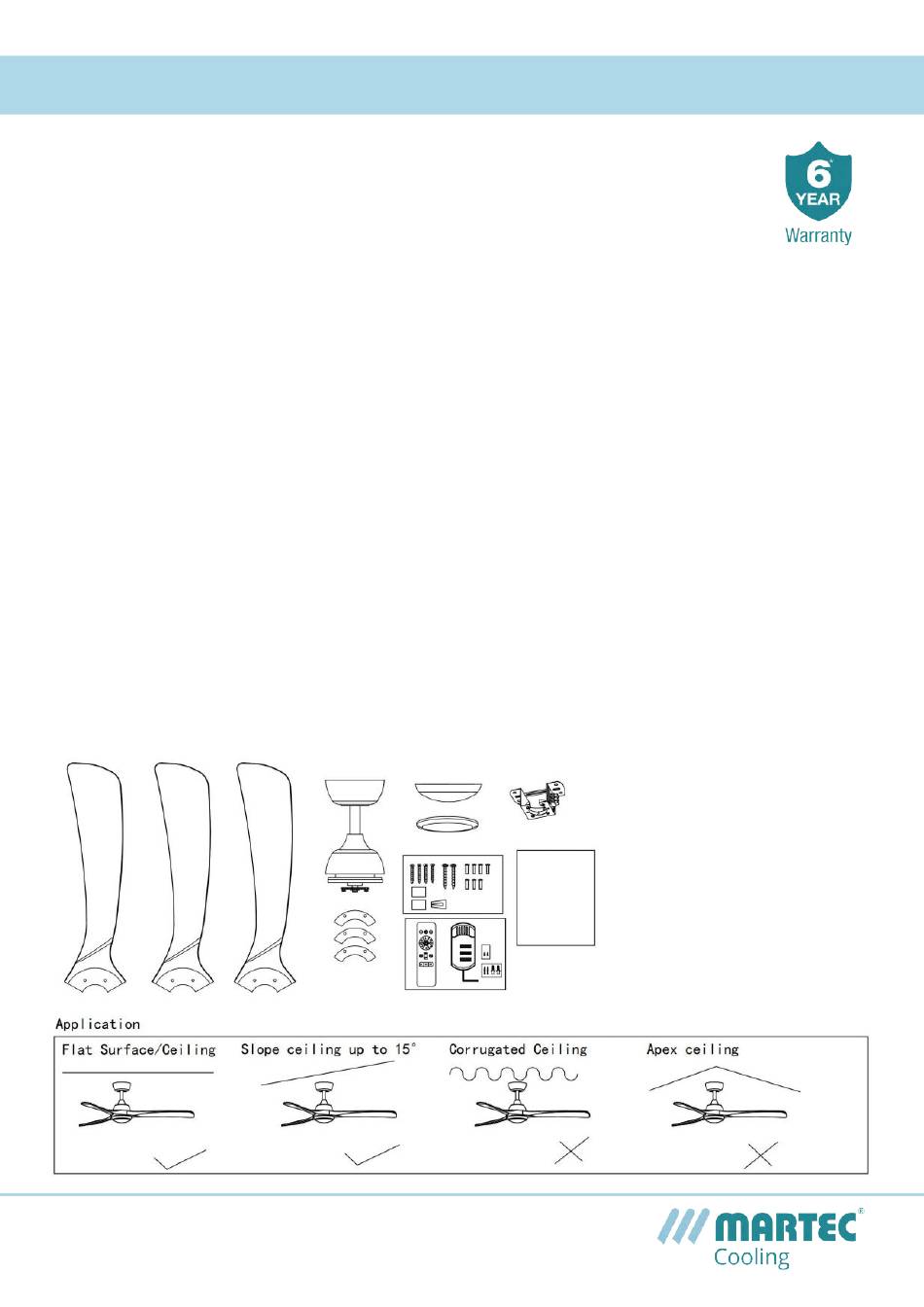

Part List:
Qty 1 x Motor assembly
Qty 1 x Mounting bracket
Qty 3xBlade fixing metal plate
E: sales@martecltd.com.au IP: 02 8778 7500
www.martecaustralia.com.au
Qty 1x Instruction manual
Qty 1 x Remote & Receiver
Qty 1 x LED light kit (with light models only)
Qty 1 x Screw kit
Qty 1xBottom plate (no light models only)
Qty 3x Blades
