jbc B210K Instruction Manual

Expansion kit for b210 handle
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

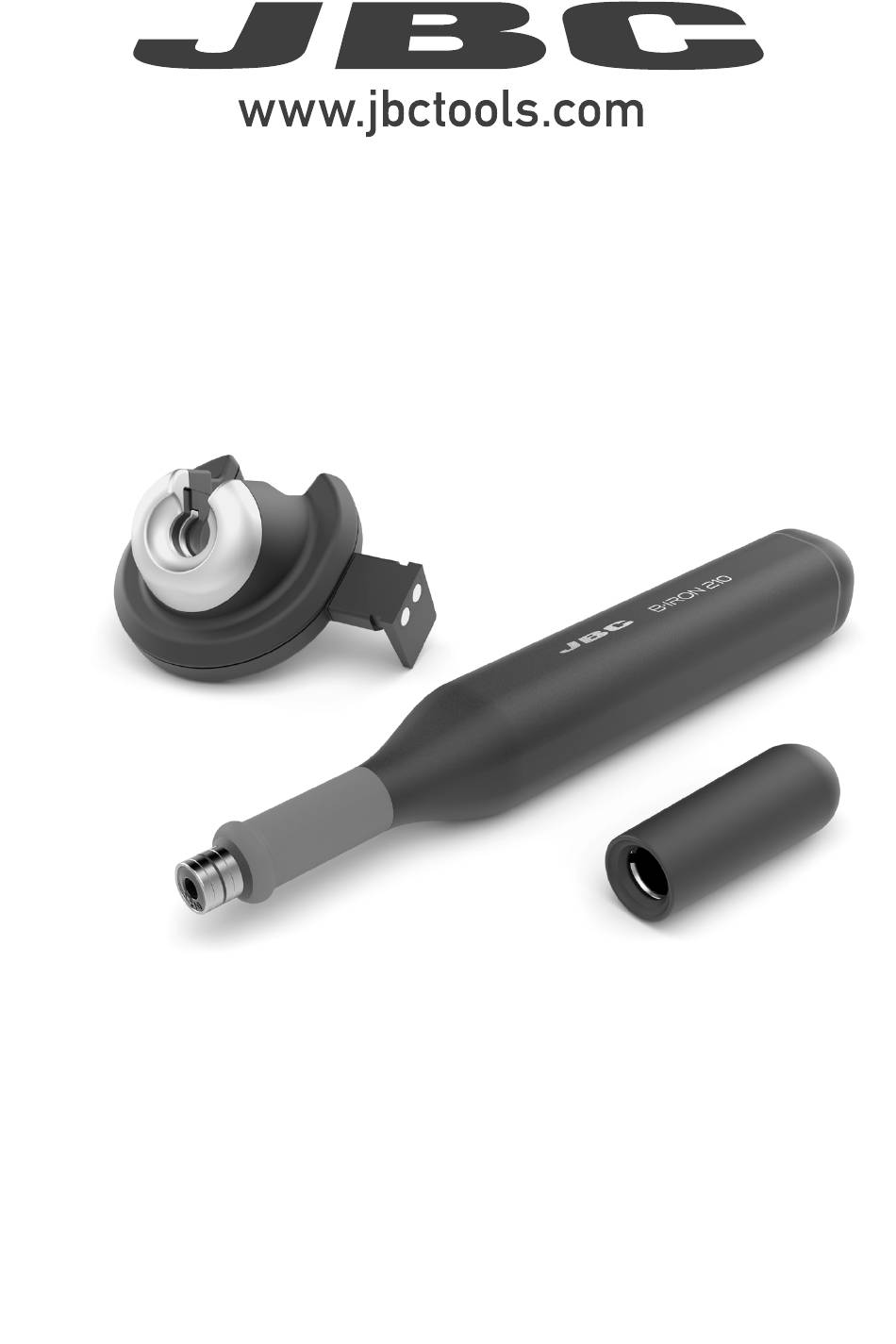

INSTRUCTION MANUAL
B210K
Expansion Kit for B210 Handle

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the B210K and is the answer not in the manual?

Questions and answers

Related Manuals for jbc B210K

Summary of Contents for jbc B210K

  • Page 1 INSTRUCTION MANUAL B210K Expansion Kit for B210 Handle...

  • Page 2: Packing List

    This manual corresponds to the following reference: B210-KB Packing List The following items are included: Tool Holder for B210/B115 Handles B210 Handle Safety Cap for B115/B210 Handles Expansion Kit for B210 Handle ......................1 unit Manual .................................. 1 unit Ref. 0030953 Please read this manual and its safety guidelines thoroughly before using the product.
  • Page 3 200 mm Features 130 mm 130 mm Expansion Kit B210K is used to upgrade B·IRON stations with one tool holder or to replace a tool holder of dual-tool B·IRON stations. The tool provided with B210K works with C210 cartridges. 100 mm...
  • Page 4 Quick Start Tool Holder Dissasembly and Replacement Adjustable tool holders can be disassembled by loosening the screws (1) at the bottom of the charging stand and pulling downward from the side band (2). Before sliding down the side band, hold the tool holder with your hand to prevent it from falling off. Then, to install a new tool holder onto the charging base, place the tool holder at the top of the side rail and slide back the side band over it until it is secured in place.

  • Page 5: Tool Selection

    - color gris 200 mm MENU Return to Work JBC#1 24 W 100% Tool ID Lock Parameters Sleep mode Sleep temperature Tool1 Tool1 Tool Charging 150ºC 18 W 100% Locked Unlocked 2822 130 mm 130 mm Hibernation delay...
  • Page 6 Inserting and Exchanging Cartridges The cartridge exchanger saves time and allows to change cartridges safely without switching the tool off. Inserting Cartridges Fixing Cartridges Holes Place the handle over a cartridge and press the Depending on the shape of the tip, use the handle down to insert the cartridge.
  • Page 7 para manuales - color gris Cartridge 200 mm Exchanger Cartridge Exchanger Place the cartridge over one of the slots of the Place the handle over a cartridge and press the cartridge exchanger and press down (1) until handle down to insert the cartridge. Place the cartridge over one of the slots of the Place the handle over a cartridge and press the you hear a click.
  • Page 8 Assembling New Grips Firmly slide the grip onto the handle until it locks into place. B210 B0001 Precision Handle for B·iRON Grips for B115/B210 Handles Replacing Sealing Plugs The sealing plug prevents undesirable flux vapors or particles from entering the handle. Its usage is highly recommended for intensive applications when soldering is exposed to FOD environments or for applications where the soldering iron works close to a vertical position.
  • Page 9 para manuales - color gris 200 mm 2. Mounting Position 130 mm 130 mm Note: The chamfered side has to be positioned towards the handle. Chamfered Side 100 mm Handle 80 mm 60 mm 3. Inserting Sealing Plug 50 mm Push the sealing plug inside the handle until the sealing plug and handle edges are aligned.

  • Page 10: Maintenance

    - Maintain the tip surface clean and tinned prior to storage in order to avoid tip oxidation. Rusty and dirty surfaces reduce heat transfer to the solder joint. - Do not use liquids such as alcohol, thinner or benzene to clean the tablet. - Repairs should only be performed by a JBC authorized technical service. Clean contact surfaces...
  • Page 11 para manuales - color gris 200 mm Safety 130 mm 130 mm It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion. 100 mm - Do not use the units for any purpose other than soldering or rework. Incorrect use may cause a fire. - The power cord must be plugged into approved bases.

  • Page 12: Safety - Battery

    - In the event of damage, leakage, or overheating of the batteries, discontinue use immediately and contact customer support or JBC technical service facility. - Dispose of devices with batteries inside, responsibly according to regulations. They must be disposed of in accordance with local regulations so that they can be recycled.
  • Page 13 para manuales - color gris 200 mm Notes 130 mm 130 mm 100 mm 80 mm 60 mm 50 mm 40 mm...
  • Page 14 Notes...
  • Page 15 para manuales - color gris 200 mm Notes 130 mm 130 mm 100 mm 80 mm 60 mm 50 mm 40 mm...

  • Page 16: Specifications

    9.65 x 7.28 x 1.77 in / 0.68 lb Complies with CE standards. Not grounded device. No ESD discharge feature. Warranty JBC’s 2 year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labour. Warranty does not cover product wear or misuse.
