Retrofitting the support brace for Aduro 22-3
Difficulty level: Intermediate
Time consumption: 20 minutes
Tools: Bit set, Bit screwdriver
Components: Retrofit-kit (Washers, screws, 30x30x320 U-Profile)
To stiffen and make the Aduro 22-3 stove more rigid, a brace will be retrofit to it for models made before

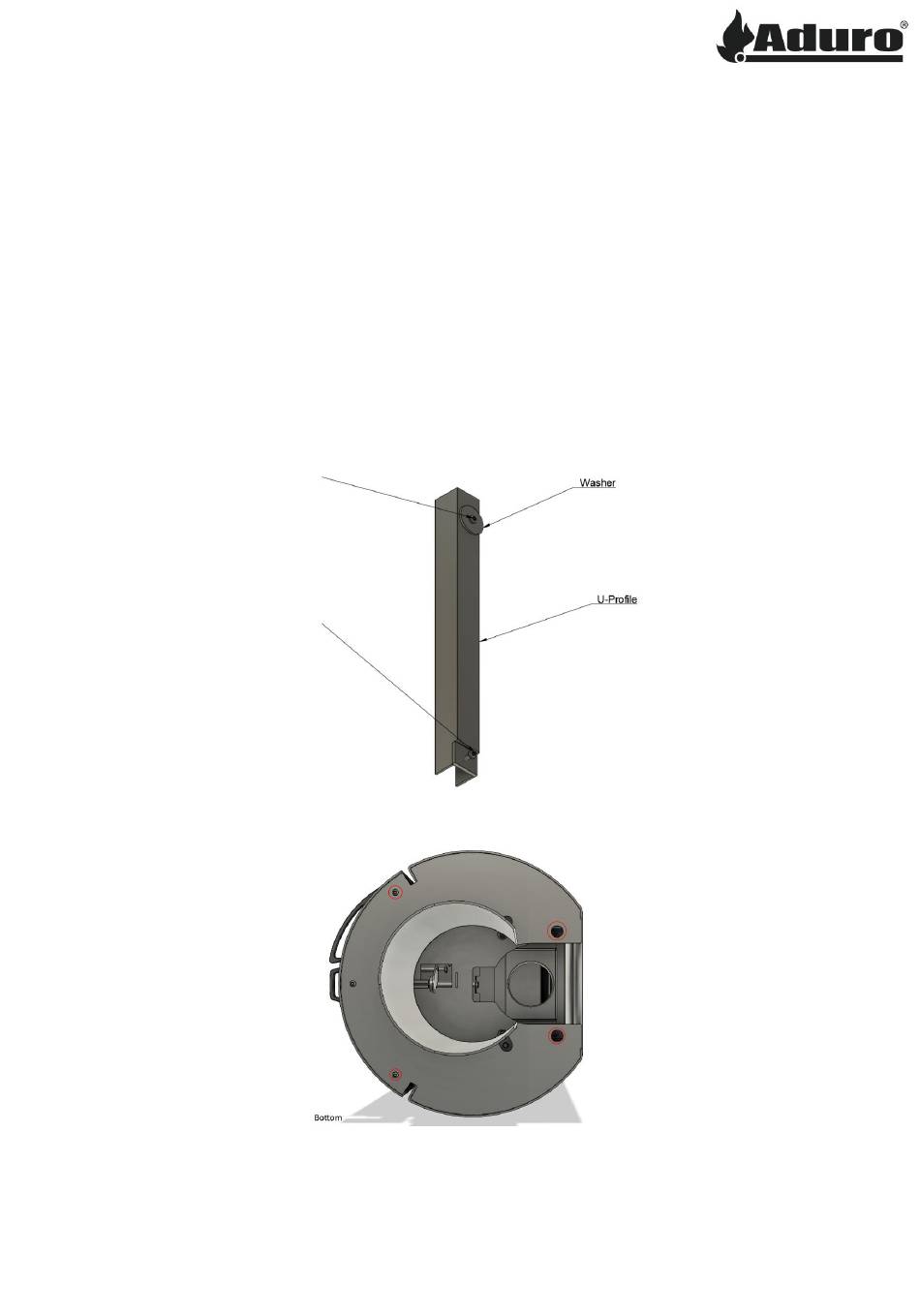

February 2023. A brace consists of the following parts:
Two braces will be needed for each stove, which is why they come in pairs.
The brace will be fitted using some of the existing holes in the bottom plate of the stove:
The brace will be installed, using the following steps:
Screw
Screw
1
