Summary of Contents for ADURO Aduro 1

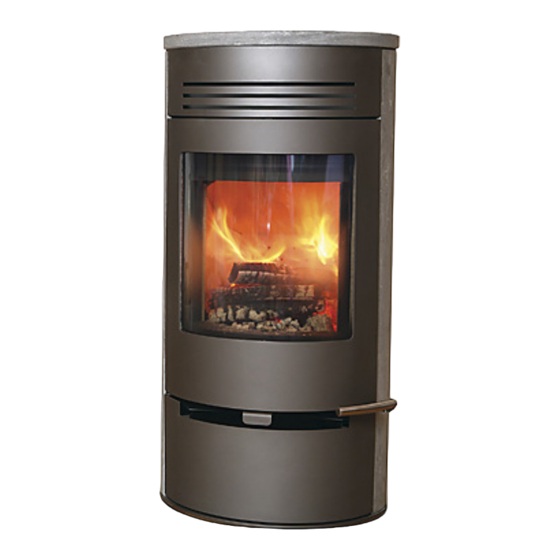

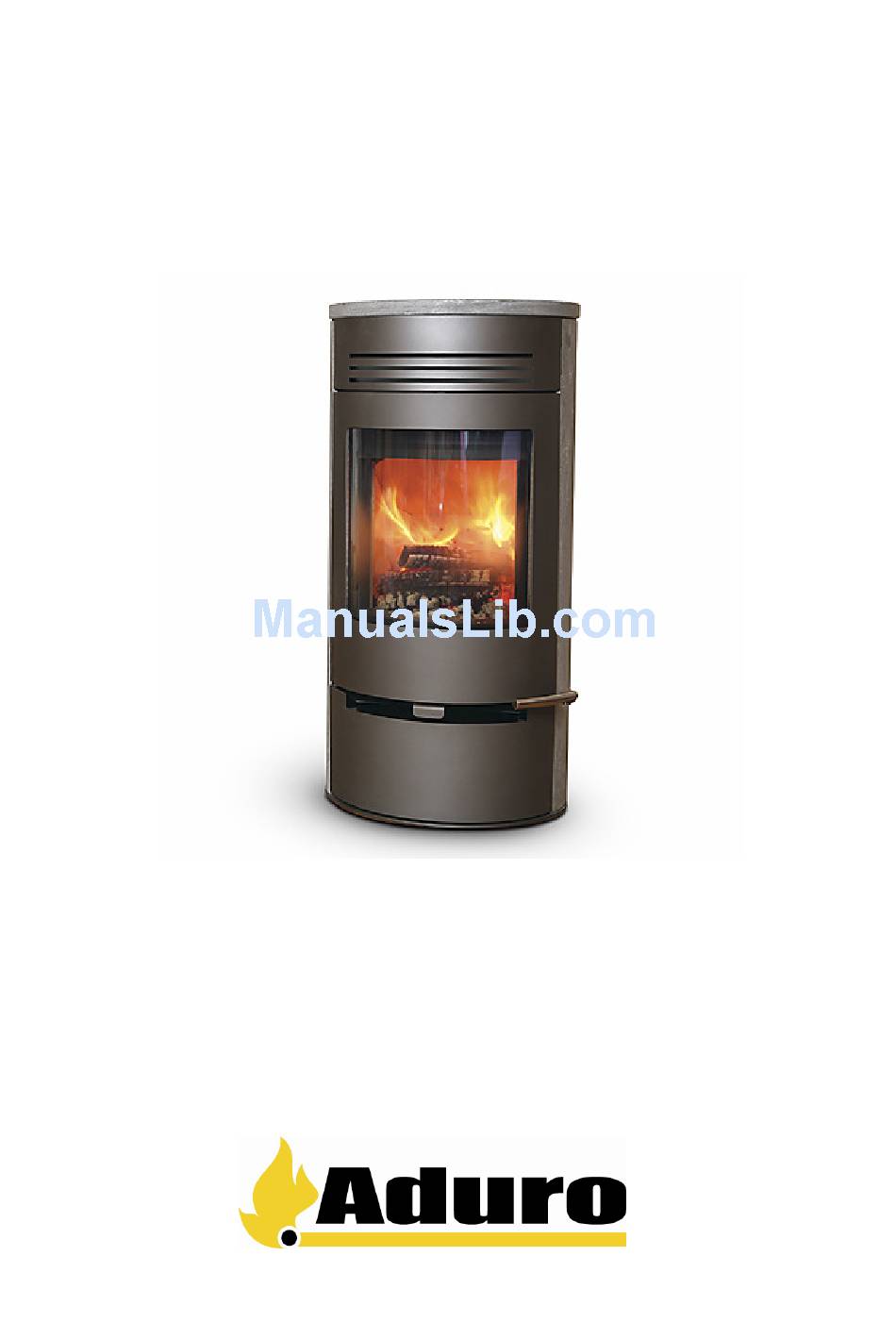

- Page 1 Aduro 1 / Aduro 1SK User Manual Ecolabel - Sintef 110-0239 - EN 13240 www.aduro.dk...
- Page 2 Flue outlet, diameter: 150 mm Weight: Aduro 1 with drawer 93 kg, Aduro 1 with wood tray 85 kg and Aduro 1SK with soapstone 150 kg. 1.3 Transportation When taking your wood burning stove home, please ensure that it travels in an upright position. If you wish...
- Page 3 Distance requirements will only apply if the wood burning stove is to be placed close to flammable materials. The Aduro 1 should be installed at a distance of 17,5 cm from flammable materials at the rear and at a distance of 40 cm from the side. When placing in a corner, there must be 25 cm to each side.
- Page 4 3.2 Pipe connection Aduro 1 leaves the factory with the flue outlet mounted on the top. If you require the flue outlet on the back, remove the round circle from the rear cover at the upper rear of the stove and then exchange the exhaust connector (located on the top outlet above the stove) with the cover plate (that covers the rear outlet).
- Page 5 4.0 Lighting a fire in the wood burning stove 4.1 Important safety information The wood burning stove will become warm during use and therefore it should be treated with all • necessary caution. Never keep easily combustible fluids such as petrol in the vicinity of the wood burning stove – and •...
- Page 6 100 %. You should never close the air intake so far that the flames are extinguished. There should always be visible flames in order to achieve clean and efficient combustion. Aduro Key: provides easier control of the secondary damper. The key is fitted onto the control handle, so you can more easily adjust the airflow from side to side.
- Page 7 17-20%. Standard size logs are approx. 30 cm long and 10 x 10 cm in thickness. A standard chimney was also used for testing. In practice, such circumstances can differ, which is why the Aduro-tronic control can be adjusted to your circumstances. If you want a slower intake of primary air: (e.g. for a slower flue draught, larger sized wood or for longer intervals between stoking) Adjust the screw on the front of the control level using a small screwdriver to slow closure rate.
- Page 8 be created around the stove, leading to smoke leakage and poor combustion. In these circumstances, it might be necessary to open a window to provide air for combustion and to equalize the vacuum. Alternatively, you could fit an air vent in the room containing the wood burning stove. 5.0 The chimney Data for chimney calculation: Wood...
- Page 9 These parts can be purchased as spare parts. 8.1 Free online warranty registration Aduro will give you the opportunity to extend the above warranty on your wood burning stove from two to five years. All you need to do is to access our website at www.aduro.dk...
