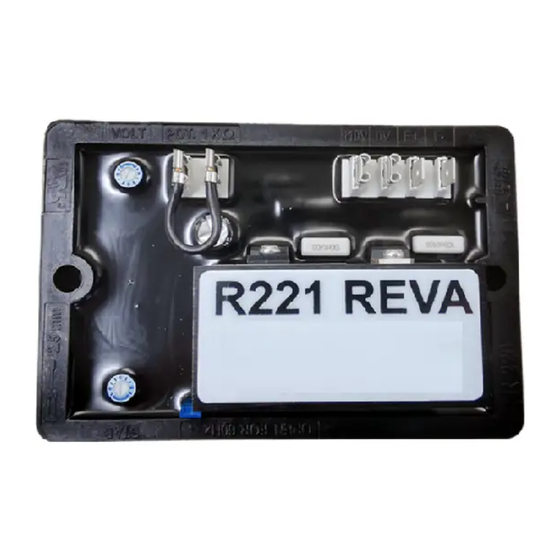

- Page 1 VOLT POT 1K R221 Installation and maintenance...
- Page 2 Installation and maintenance Electric Power Generation 5035 en - 2024.02 / h R221 This manual concerns the alternator AVR which you have just purchased. We wish to draw your attention to the contents of this maintenance manual. SAFETY MEASURES Before using your machine for the first time, it is important to read the whole of this installation and maintenance manual.
-
Page 3: Table Of Contents
Installation and maintenance Electric Power Generation 5035 en - 2024.02 / h R221 CONTENTS 1 - POWER SUPPLY ....................... 4 1.1 - SHUNT excitation system ....................4 2 - R221 AVR ...........................4 2.1 - Characteristics ......................4 2.2 - AVR options ........................4 3 - INSTALLATION - COMMISSIONING .................5 3.1 - Electrical checks on the AVR ..................5 3.2 - Settings ........................5... -
Page 4: Power Supply
Installation and maintenance Electric Power Generation 5035 en - 2024.02 / h R221 1 - POWER SUPPLY - Power supply protected by 8 A fuse, slow- blow action (tolerates 10 A for 10 s) 1.1 - SHUNT excitation system The fuse is impregnated in the resin, The alternator with Shunt excitation is self- therefore it can not be replaced. -
Page 5: Installation - Commissioning
Installation and maintenance Electric Power Generation 5035 en - 2024.02 / h R221 3 - INSTALLATION - 3.2.2 - Special type of use COMMISSIONING WARNING 3.1 - Electrical checks on the AVR Excitation circuit E+, E- must not be left - Check that all connections have been open when the machine is running : AVR made properly as shown in the attached... -
Page 6: Electrical Faults
Installation and maintenance Electric Power Generation 5035 en - 2024.02 / h R221 3.3 - Electrical faults Fault Action Effect Check/Cause The alternator builds up and its voltage is still correct when the - Lack of residual magnetism battery is removed The alternator builds up but its - Check the connection of the voltage Connect a new battery... -
Page 7: Spare Parts
Installation and maintenance Electric Power Generation 5035 en - 2024.02 / h R221 4 - SPARE PARTS 4.1 - Designation Description Type Code R221 AEM 110 RE 042 4.2 - Technical support service Our technical support service will be pleased provide additional information you may require. -
Page 8: Disposal And Recycling Instructions
Installation and maintenance Electric Power Generation 5035 en - 2024.02 / h R221 Disposal and recycling instructions All materials listed above need special committed limiting treatment separate waste from environmental impact of our activity. We reclaimable materials and should be continuously monitor production... - Page 9 Installation and maintenance Electric Power Generation 5035 en - 2024.02 / h R221...
