Host card

The front of the host card includes the following:
Hardware Guide
Diag LED
Reserved for future use.
Link LED
When lit, indicates that the cable is plugged in correctly.
TX LED
Blinks if the appliance is sending a data packet.
RX LED
Blinks if the appliance is receiving a data packet.
TX Gigabit port
Port for outgoing data.
RX Gigabit port
Port for incoming data.
AUX port
Reserved for future use.
Console port
A single RJ-45 connector provides direct workstation-to-appliance
connection.
Appliance Reset
Place a pin in this port to reset the appliance.

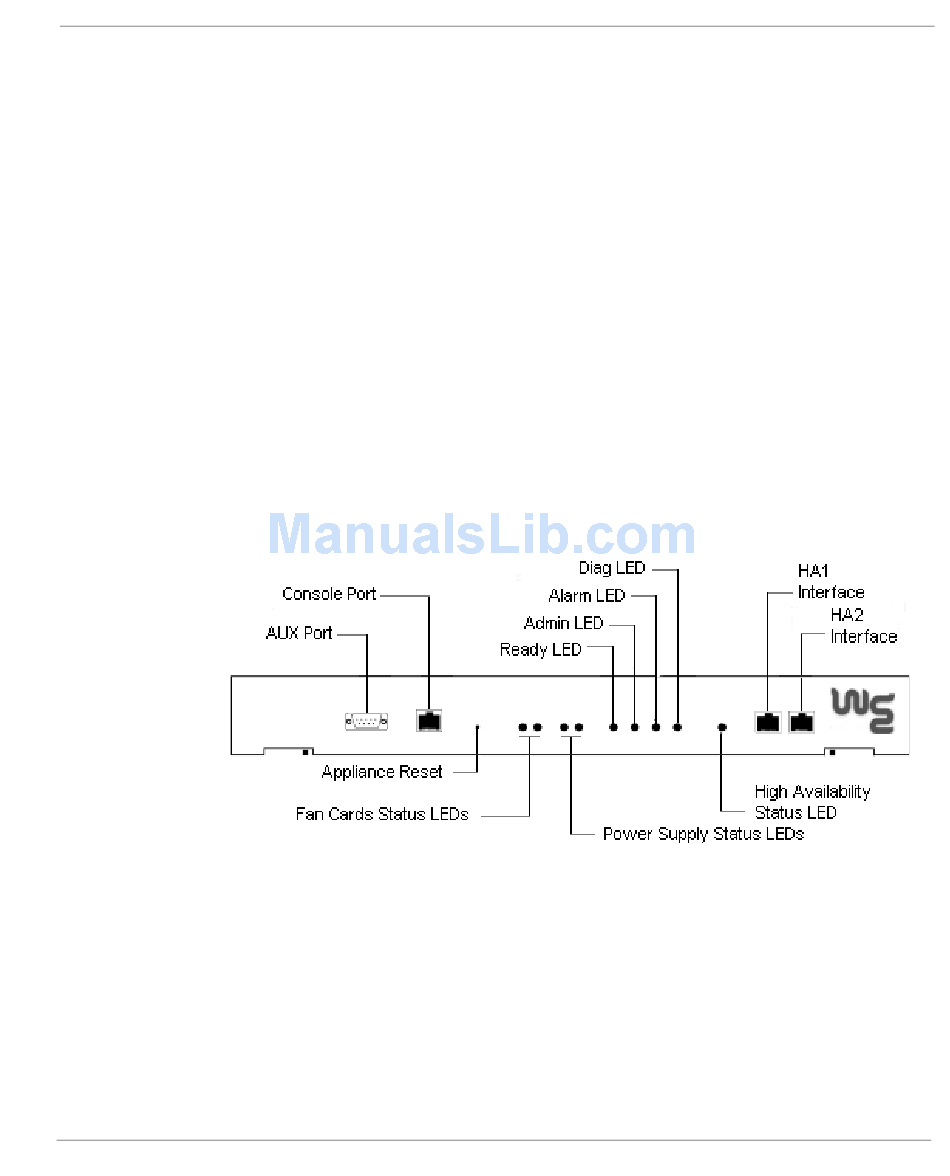

Firebox V200 Front Panel
3
