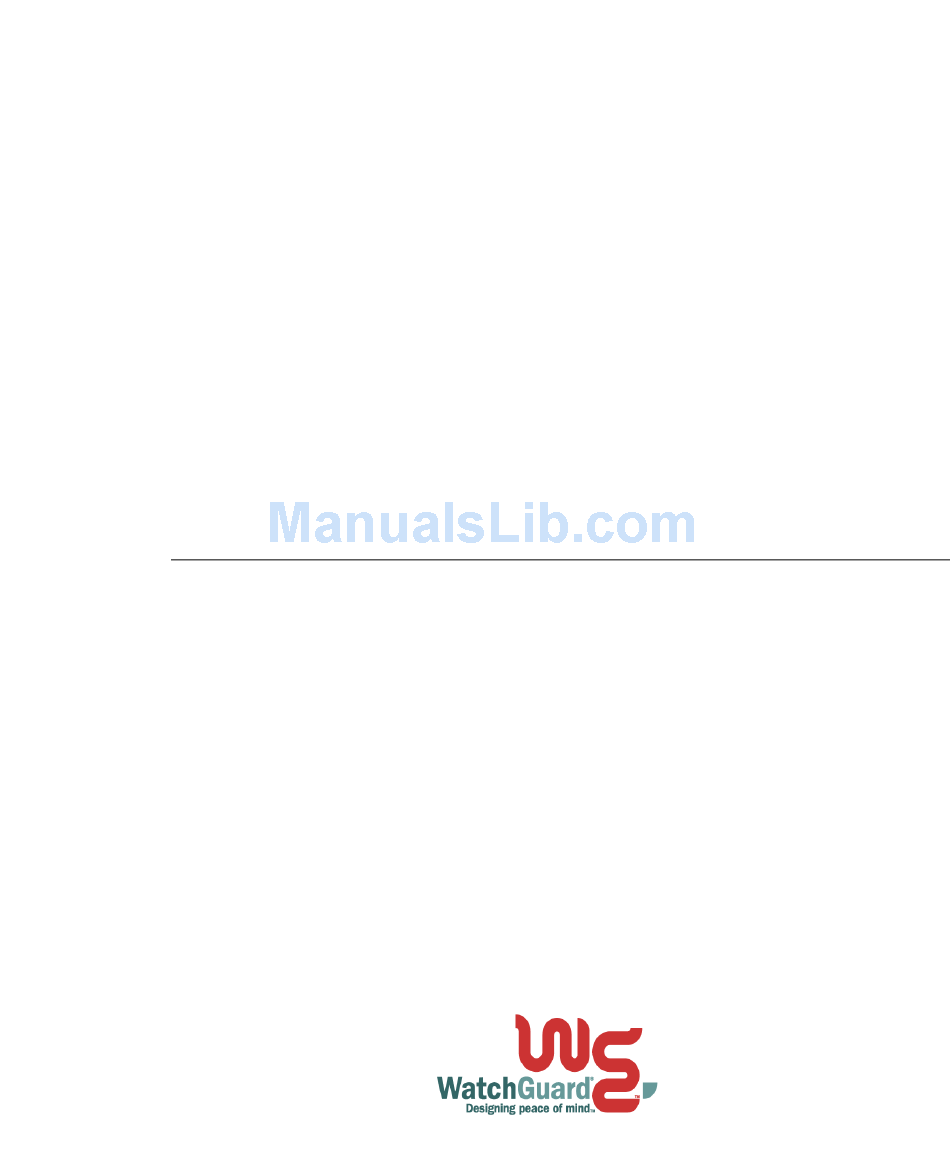

  • Page 1 Firebox V200 ® Hardware Guide...
  • Page 2 This device must accept any interference received, including interference that may cause undesired operation. CE Notice The CE symbol on your WatchGuard Technologies equipment indicates that it is in compliance with the Electromagnetic Compatibility (EMC) directive and the Low Voltage Directive (LVD) of the European Union (EU).
  • Page 3 VCCI Notice Class A ITE Hardware Guide...
  • Page 4 Declaration of Conformity WatchGuard Firebox V200...
  • Page 5 2. Remedies. If any Product does not comply with the WatchGuard warranties set forth in Section 1 above, WatchGuard will, at its option, either (a) repair the Product, or (b) replace the Product; provided, that you will be responsible for returning the Product to the place of purchase and for all costs of shipping and handling. Repair or replacement of the Product shall not extend the Warranty Period.
  • Page 6 No part of this guide may be reproduced or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the express written permission of WatchGuard Technologies, Inc. Copyright, Trademark, and Patent Information Copyright©...
  • Page 7 EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
  • Page 8 WatchGuard Firebox V200...

  • Page 9: Table Of Contents

    Contents CHAPTER 1 Package Contents Firebox V200 Front Panel Line cards Host card Firebox V200 Back Panel If a power failure occurs CHAPTER 2 Removing line cards Replacing the line cards Replacing a fan card Replacing a power supply module...
  • Page 10 WatchGuard Firebox V200...

  • Page 11: Chapter 1 Hardware Description

    Windows 9x/2000/XP, Solaris, and Linux. The CD also provides electronic versions of the complete user documentation set. • Rack-mounting hardware. If you are mounting the appliance in a rack, note that V200 appliances are 4U high. Hardware Guide ® ® Firebox...

  • Page 12: Firebox V200 Front Panel

    Firebox V200 Front Panel This illustration of a Firebox V200 security appliance’s front panel shows the two fan cards, two line cards, and one host card. Line cards The front of each line card includes the following: Monitor port A single DB-9 connector provides direct console connection to the appliance.

  • Page 13: Host Card

    The front of the host card includes the following: AUX port Reserved for future use. Console port A single RJ-45 connector provides direct workstation-to-appliance connection. Appliance Reset Place a pin in this port to reset the appliance. Hardware Guide Firebox V200 Front Panel...
  • Page 14 Private interface. Alarm LED If the light appears green, an alarm is triggered. Diag LED Blinks while appliance runs diagnostics. High Availability Status LED Reserved for future use. HA1/HA2 Interfaces High Availability ports. WatchGuard Firebox V200...

  • Page 15: Firebox V200 Back Panel

    CLI or Vcontroller. For more information on completing a system shutdown, see the Firebox Vclass User Guide. Do not connect any Firebox V200 appliance to a source of power that supplies the wrong voltage. Doing so will damage the appliance and void the warranty.

  • Page 16: If A Power Failure Occurs

    Used to attach an ESD wrist strap so you can safely channel static electricity. Under normal circumstances, you do not need to open the Firebox V200 appliance, and WatchGuard recommends that you do not. However, if you must open the box to replace a card or for some other reason, see Chapter 2, “Replacing the WatchGuard Firebox V200 Hardware”...
  • Page 17 Firebox V200 Back Panel If both power supplies are plugged in and power is lost to one power supply, the unit will continue to operate on the secondary power supply. Hardware Guide...
  • Page 18 WatchGuard Firebox V200...

  • Page 19: Chapter 2 Replacing The Watchguard Firebox V200 Hardware

    Replacing the WatchGuard CHAPTER 2 Firebox V200 Hardware Under normal circumstances, you do not need to open the Firebox V200 appliance, and WatchGuard recommends that you do not. However, one of the appliance’s major components might occasionally need to be replaced.

  • Page 20: Removing Line Cards

    Removing line cards The Firebox V200 has two line cards, which are installed from the front side of the appliance. These cards are not redundant or hot-swappable. You must complete a system shutdown in CLI or Vcontroller and turn off the appliance before you replace the line cards.
  • Page 21 You must properly shutdown the system and turn off the power switch on the rear of the unit before removing a line card. Failure to do so could cause file corruption or damage to the board or system. Attach an ESD strap to your wrist and to the grounding connector at the back of the unit before opening the appliance or removing any card or module.

  • Page 22: Replacing The Line Cards

    Replacing a fan card The Firebox V200 operates with two fan cards. To view the status of each fan card, check the Fan Card Status LEDs on the front of the unit. If one of the five fans on a fan card is not operating, the status light for that card turns from green to red.
  • Page 23 The fan status light changes to red when any one or more of the five fans on the fan card are not operating. To maintain optimal cooling, the fan card should be replaced promptly when the light is red. However, do not remove the fan card until a replacement fan card is available.
  • Page 24 When one fan card is removed, the blades on the other fan card continue to spin to provide cooling as long as the appliance is powered. Do not leave the appliance unattended when a fan card is removed. ARNING ARNING WatchGuard Firebox V200...

  • Page 25: Replacing A Power Supply Module

    Replacing a power supply module Because the Firebox V200 supports two fully redundant power supplies, either module can be removed while the appliance is in operation. To determine the status of each power supply, check the Fault LED and Power Good LED on each power supply, or check the Power Supply Status LEDs on the front of the unit.
  • Page 26 If you want to shut off the power to the appliance to replace the power supply, make sure you complete a system shutdown in CLI or Vcontroller before shutting off the power. For information on how to complete a system shutdown, see the Firebox Vclass User Guide. AUTION AUTION WatchGuard Firebox V200...
  • Page 27 You must properly shutdown the system software before you turn off the power switch on the rear of the unit. Failure to do so, could cause file corruption or damage to the board or system. Attach an ESD strap to your wrist and to the grounding connector at the back of the unit before opening the appliance or removing any card or module.
  • Page 28 WatchGuard Firebox V200...

  • Page 29: Index

    6, 9 cards removing certification, FCC Console port Ethernet ports fan cards removing replacing FCC certification Firebox V200 assembling opening opening appliance package contents host card front of Hardware Guide line cards front of removing replacing...
