Firebox V200 Front Panel

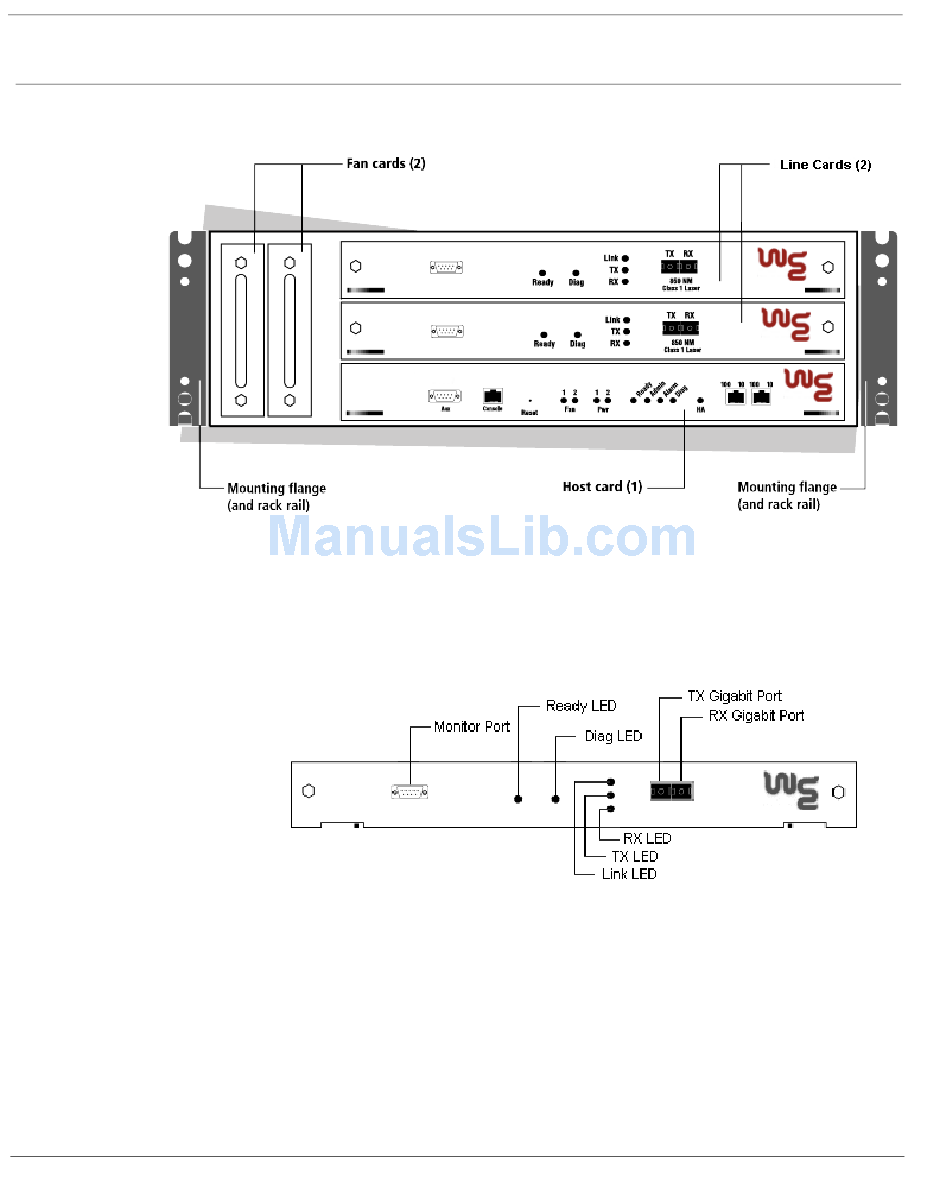

This illustration of a Firebox V200 security appliance's front panel shows
the two fan cards, two line cards, and one host card.
Line cards
The front of each line card includes the following:
2
Monitor port
A single DB-9 connector provides direct console connection to the
appliance.
Ready LED
Blinks while the appliance powers up or down and is steadily lit
when the appliance is ready for network traffic.
WatchGuard Firebox V200
