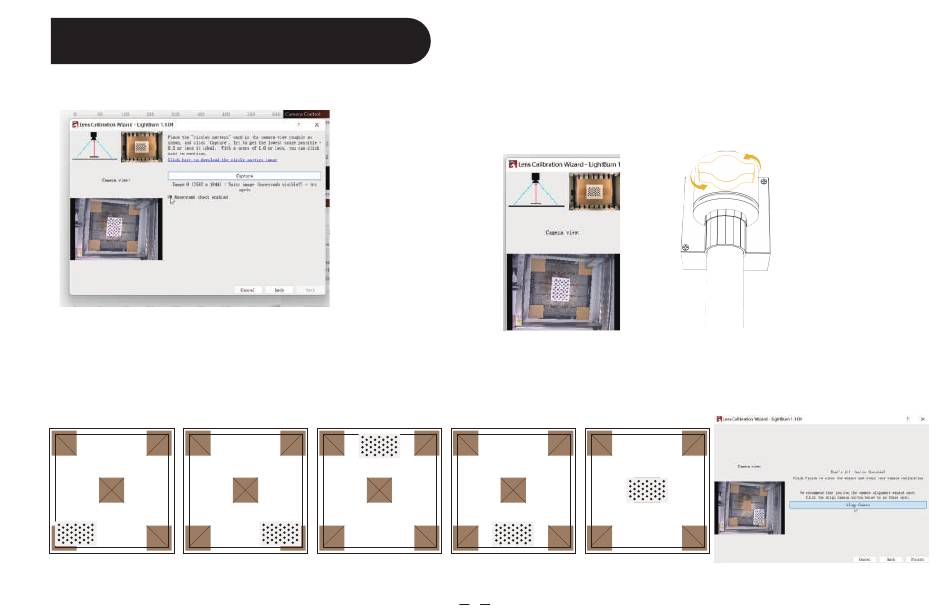

ATOMSTACK MAKER AC1 User Manual page 7

5 Calibrate camera lens
5.5 Click to close Honeycomb check enabled.
5.7 Place the dot card in five positions, left, right, top, bottom, and middle, and capture 5 times. If the captured result Score≤1 and the
pattern is slightly deformed or not deformed, click Next; if the pattern cannot be captured, repeat step 2 Fine-tune the lens or move the
position of the dot card to capture again (the recommended order of dot card placement is left, right, top, bottom, and middle) until the
capture is successfully completed.
left right top
5.6 Observe whether the fixed focus plate in the preview window is tilted or not.
If it is tilted, adjust the knob to fine-tune the camera lens so that the cross mark
is in the center of the field of view, and the top, bottom, left, and right are as
symmetrical as possible.
bottom
6
Adjustment knob
middle
