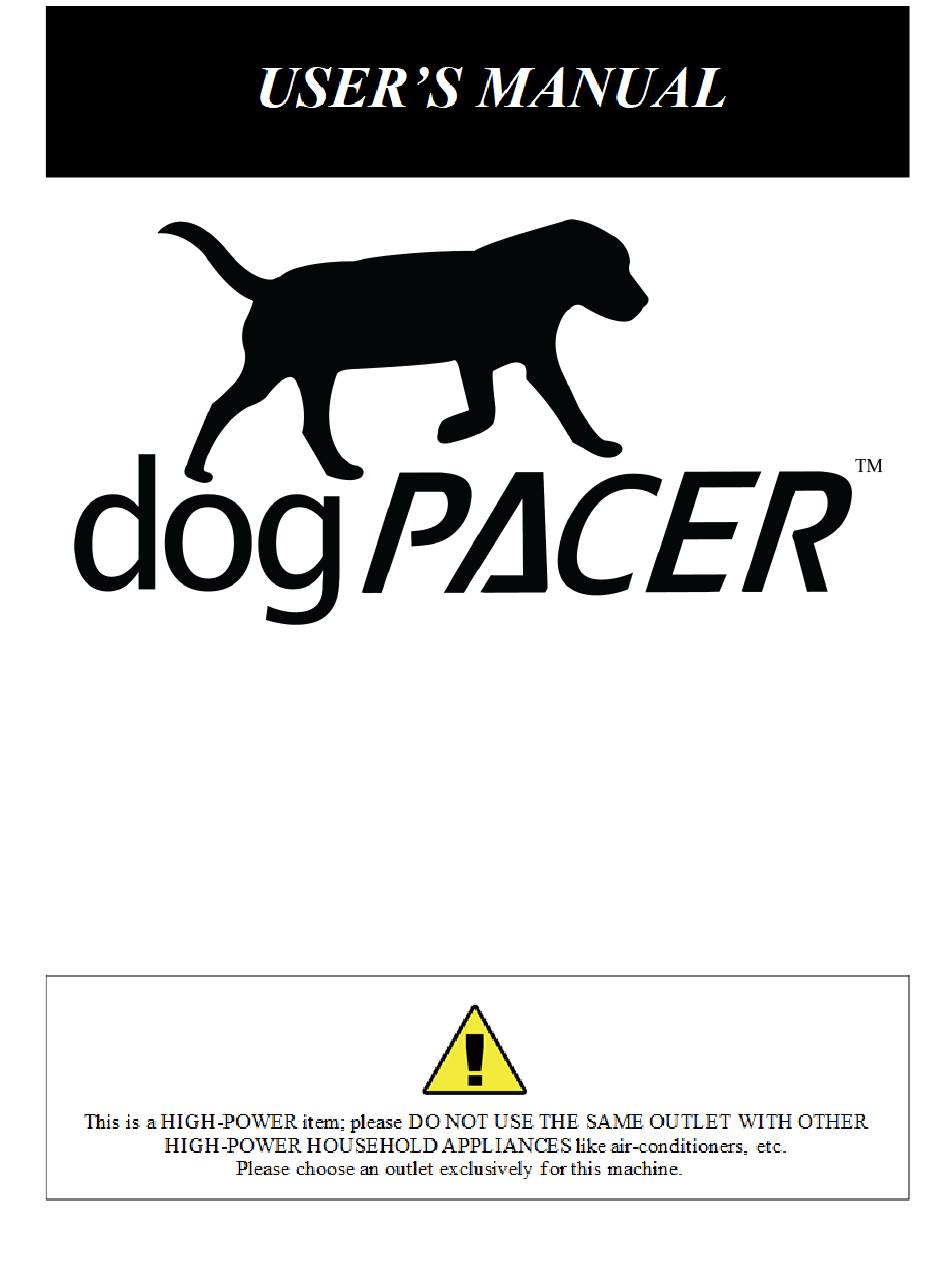

- Page 1 WWW.DOGPACER.COM The latest manual and any updates are always available online Product may vary slightly from the items pictured due to model upgrades...
-
Page 2: Table Of Contents
Table of Content 1. GENERAL INSTRUCTIONS 1.1 Important Electrical Information 1.2 Important Operation Instructions 2. MACHINE OVERVIEW 3. ASSEMBLY INSTRUCTIONS 3.1 Initial Assembly 3.2 Belt Tension & Tracking Belt Tracking Adjustment: 3.3 Know Your Computer 3.4 After assembly - Quick Start Operation 3.5 Calorie Display 3.6 Incline Feature 3.7 Transport... - Page 3 1. GENERAL INSTRUCTIONS WARNING: To reduce the risk of serious injury, read all important precautions, instructions and all warnings described in this manual. We assume no responsibility for personal injury or property damage sustained by or through the use of this product. 1.
-
Page 4: Important Electrical Information
20. Inspect and properly tighten all parts of the treadmill regularly. Constant opening and closing may cause the middle hinge to loosen. 21. Never drop or insert any object into any opening on the treadmill. 22. DANGER: Always unplug the power cord immediately after use, before cleaning the treadmill and before performing the maintenance and adjustment procedures described in this manual. -
Page 5: Machine Overview
2. MACHINE OVERVIEW This motorized treadmill can help complete your goal of keeping your pet fit, living a happy and healthy life. Speed range: 0.5 -7.5 MPH (0.1 increments) Manual incline: 5-9 degrees Programs: 3 pre-set programs (P1-P3) Motor power:1.5HP Peak... -
Page 6: Assembly Instructions
3. ASSEMBLY INSTRUCTIONS 3.1 Initial Assembly Take the dogPACER out of the box and place it on cardboard, a mattress or a carpeted surface. ● Lay the dogPACER in an open area so you have plenty of room to work. - Page 7 ● Put the overhead bar in place and tighten the 4 screws (Bolts M6*15). The upper part can come off if your dog is too big. NOTE: Tighten screws a little at a time, one by one using the 5mm Hex Key.
- Page 8 ● Thread the computer with the cable through the leg and connect the computer to the leg using ST4.2*12 screws (see diagram). ● Connect the computer cable with the cable coming out of the treadmill (see diagram).
- Page 9 ● Connect the computer to the treadmill using two M6*15 bolts (see diagram). Steps to Attach the Side Panels: 1. Place the side panel flat on the belt of the treadmill. 2. Insert the side panel to the 3 rubber clips (A, B & C) on the P.V.C side rails. 3.
-
Page 10: Belt Tension & Tracking
3.2 Belt Tension & Tracking ● The belt comes assembled loose. The Adjustment Knob System is located on the back-end caps. ● Kneeling at the back/ end of the belt, center the belt using your hands. After you make sure the belt is centered, start turning both adjustment knobs clockwise to tighten the tension. -
Page 11: Belt Tracking Adjustment
● After the belt and all the screws are tightened, connect the power cord to a ground circuit. Turn on the dogPACER with the power switch (reset/off circuit breaker). Press the START/STOP button on your computer. The computer will countdown ‘3,2,1’and start moving at the minimum speed (0.5MPH). -
Page 12: Know Your Computer
3.3 Know Your Computer ● Before you start, remember to attach the red “Safety Key” to the computer. If you do not connect it, the screen will show an “E0” error message. （1）MODE When the machine is stopped, pressing the MODE button will allow you to select pre-set programs (P1 –... -
Page 13: After Assembly - Quick Start Operation
● While the belt is moving press START/STOP, the walking belt will gradually slow down. 3.5 Calorie Display The dogPACER displays the cumulative calories burned at any given time during your pet’s workout. NOTE: This is only a rough guide, used for comparison of different exercise sessions. It should not be used for medical purposes. -
Page 14: Transport
3.7 Transport Transport the treadmill from one place to another with the transport wheels by lifting the front of the treadmill and rolling it to the desired position. Note: you should be able to carry 51 lbs. 3.8 Programs 3.8.1 Selecting a Program Power on the machine, press ‘MODE’... -
Page 15: Program Charts
Program Charts... -
Page 16: Maintenance
● Check parts for wear before use. ● Always replace the belt if torn and replace any other defective parts. ● If in doubt, do not use the treadmill and contact us at info@dogpacer.com or visit www.dogpacer.com. TAKE CARE TO PROTECT CARPETS AND FLOOR in case of leakages. This product is a... -
Page 17: Belt/ Deck/ Roller Lubrication
4.3 Belt/ Deck/ Roller Lubrication The belt / deck friction may play a major role in the function and life of your treadmill. We recommend that you consistently lubricate this friction point to prolong the useful life of your treadmill. You should apply the lubrication after approximately the first 40 hours of operation. -
Page 18: How To Check The Running Belt For Proper Lubrication
If the surface is slick when touched then no further lubrication is needed. If the surface is dry when touched, apply a suitable silicone lubricant. We recommend you use a silicone-based spray to lubricate your dogPACER Treadmill. This can be purchased from your local sports retailer or hardware store. -
Page 19: Exercise
Shorter, more frequent times of exercise are more beneficial. ● Use of the dogPACER is a great way to exercise your pet, but it is not a substitute for socialization for your pet. Your pet should still have contact with other dogs and outdoor exercise when able. -
Page 20: Enhanced Diagram
7. ENHANCED DIAGRAM... -
Page 21: Bluetooth Connection
8. Bluetooth Connection Thank you for purchasing our NEW dogPACER 4.0. We are so excited for you to get started using it. Please follow the steps below to get started: 1. Download the dogPACER APP from the Apple/Android store. 2. Turn the power on to your treadmill and open the app.
