USER'S MANUAL
USER'S MANUAL
WWW.DOGPACER.COM
The latest manual and any updates are always available online
USER'S MANUAL
This is HIGH-POWER item; please DO NOT USE THE SAME OUTLET WITH OTHER HIGH-
POWER HOUSEHOLD APPLIANCES like air-conditioners, etc.
Please choose an outlet exclusively for this machine.

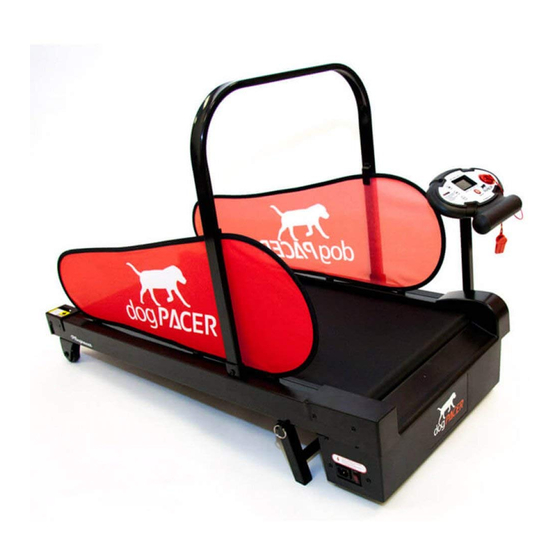

Product may vary slightly from the item pictured due to model upgrades
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for dogPacer minipacer
Summary of Contents for dogPacer minipacer
- Page 1 USER’S MANUAL USER’S MANUAL WWW.DOGPACER.COM The latest manual and any updates are always available online USER’S MANUAL This is HIGH-POWER item; please DO NOT USE THE SAME OUTLET WITH OTHER HIGH- POWER HOUSEHOLD APPLIANCES like air-conditioners, etc. Please choose an outlet exclusively for this machine.
-
Page 2: Table Of Contents
Table of contents 1. GENERAL INSTRUSTRUCTIONS 1.1 Important Electrical Information 1.2 Important Operation Instructions 2. MACHINE OVERVIEW 3. ASSEMBLY INSTRUCTIONS 3.1 Initial Assembly 6 - 7 3.2 Steps to Attach Side Panels 3.3 Belt Tracking Adjustment 3.4 Know Your Controller 3.5 After Assembly –... -
Page 3: General Instrustructions
1. GENERAL INSTRUCTIONS WARNING: To reduce the risk of serious injury, read all important precautions, instructions and all warnings described in this manual. We assume no responsibility for personal injury or property damage sustained by or through the use of this product. 1. -
Page 4: Important Electrical Information
20. Never drop or insert any object into any opening on the treadmill. 21. DANGER: Always unplug the power cord immediately after use, before cleaning the treadmill, and before performing the maintenance and adjustment procedures described in this manual. Never remove the motor hood unless instructed to do so by an authorized service representative. -
Page 5: Machine Overview
2. MACHINE OVERVIEW This motorized treadmill can help complete your goal of keeping your pet fit, living a happy and healthy life. Speed range: 0.5 – 7.5MPH (0.1 increments) Incline : 4.5 degrees Programs: 3 pre-set programs (P1-P3) Motor power: 0.85HP Peak Overhead Running belt Computer... -
Page 6: Assembly Instructions
3. ASSEMBLY INSTRUCTIONS Initial Assembly Take the MiniPACER out of the box and place it on cardboard, a mattress, or a carpeted surface. • Lay the MiniPACER in an open area so you have plenty of room to work. • Open legs and lock them into place using the Leg Pins (Bolt Ø6). Make sure they are locked (see diagram below). - Page 7 • Put the computer with the cable through the leg and connect the computer to the leg using ST4.2*12 screws (see diagram). Cross recessed modified truss tapping screw ST4.2*12 (Computer Bar Pins) • Connect the computer cable with the cable coming out of the treadmill (see diagram). Cross recessed modified truss tapping screw ST4.2*12...
-
Page 8: Steps To Attach Side Panels
• Connect the computer to the treadmill with two screws (M6*15) (see diagram) Ø6 Flat Washer / M6*15 Motor cover Hex bolt M6*15 Ø6 Flat Washer / M6*15 Motor cover Motor cover Ø6 Flat Washer / M6*15 3.2 Steps to Attach the Side Panels: Plain washer Φ... -
Page 9: Belt Tracking Adjustment
• Connect the power cord to a ground circuit. Ensure the red Safety Key is in place. Power on the MiniPacer with the power switch (reset/off circuit breaker). Press the START/STOP button on your computer. The computer will countdown ‘3,2,1’ and start moving at the minimum speed (0.5). -
Page 10: Know Your Controller
3.4 Know Your Computer Speed + Speed + Speed + Speed - Speed + Speed - Speed + Speed - Speed + Safety key Speed - Mode Speed + Safety key Speed - mode Speed + Safety key Speed - mode Speed + Safety key... -
Page 11: After Assembly - Quick Start Operation
Note: This is only a rough guide used for comparison of different exercise sessions. It should never be used for medical purposes. 3.7 Incline Feature The MiniPacer contains 4 manual incline positions from 5 degrees to 9 degrees (5, 6.5, 7.5, 9) -
Page 12: Transport
3.8 Transport Transport the treadmill from one place to another with the transport wheels by lifting the front of the treadmill and rolling to desired position. Note: you should be able to carry 22.4lbs. 3.9 Programs 3.9.1 Selecting a Program Power on the machine, press ‘MODE’... -
Page 13: Program Charts
SPEED(MPH) Program 1 - Easy Pacer 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 TIME(minutes) SPEED(MPH) Program 2 - Interval Pacer 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30... -
Page 14: Maintenance
• If in doubt, do not use the treadmill and contact us at info@dogpacer.com or visit www.dogpacer.com. TAKE CARE TO PROTECT CARPETS AND FLOOR in case of leakages. This product is a machine and contains moving parts which have been greased / lubricated and could leak. -
Page 15: Belt/Deck/Roller Lubrication
4.3 Belt/Deck/Roller Lubrication The belt/deck friction can play a major role in the function and life of your treadmill. We recommend that you consistently lubricate this friction point to prolong the useful life of your treadmill. You should apply the lubrication after approximately the first 40 hours of operation. We recommend lubrication of the deck according to the following timetable: Light use (less than 3 hours per week) every 6 months. -
Page 16: How To Check The Running Belt For Proper Lubrication
If the surface is slick to the touch, then no further lubrication is needed. If the surface is dry when touched, apply a suitable silicone lubricant. We recommend you use a silicone-based spray to lubricate your MiniPACER Treadmill. This can be purchased from your local sports retailer or hardware store. -
Page 17: Exercise
Shorter, more frequent times of exercise are more beneficial. • Use of the MiniPACER is a great way to exercise your pet, but it is not a substitute for socialization for your pet. Your pet should still have contact with other dogs and outdoor exercise when able. -
Page 18: Enhanced Diagram
ENHANCED DIAGRAM...
