  • Page 1 Application Manual KNX 90-230 Vac 1/4-channel phase cut dimmers EK-GD2-TP-1-HV EK-GD1-TP-4-HV...

  • Page 2: Table Of Contents

    11.4.6 Night function ..........................42 11.4.7 Counter function (energy and hours counter) ................42 11.5 Alarms ..............................45 12. KNX communication objects summary ....................46 Release 1.0 - Updated: 31/08/2023 MAEKGDxTPxHV_EN © Ekinex S.p.A. – All rights reserved Page 2...
  • Page 3 13.2 Return of defective products ....................... 47 ® 13.2.1 Devices purchased directly from ekinex ..................47 ® 13.2.2 Devices purchased through ekinex resellers ................47 13.3 Further information ..........................47 Release 1.0 - Updated: 31/08/2023 MAEKGDxTPxHV_EN © Ekinex S.p.A. – All rights reserved Page 3...
  • Page 4 Application Manual KNX EK-GD2-TP-1-HV / EK-GD1-TP-4-HV dimmer Release Changes Date Author Verified by First issue 31/08/2023 G. Schiochet C. Baldini Release 1.0 - Updated: 31/08/2023 MAEKGDxTPxHV_EN © Ekinex S.p.A. – All rights reserved Page 4...

  • Page 5: Scope Of The Document

    Application Manual KNX EK-GD2-TP-1-HV / EK-GD1-TP-4-HV dimmer 1. Scope of the document ® This manual describes the application details for version A1.0 of the following ekinex devices:  EK-GD2-TP-1-HV: 90-230 Vac 1-channel phase-cut KNX dimmer.  EK-GD1-TP-4-HV: 90-230 Vac 4-channel phase cut KNX dimmer.

  • Page 6: Product Description

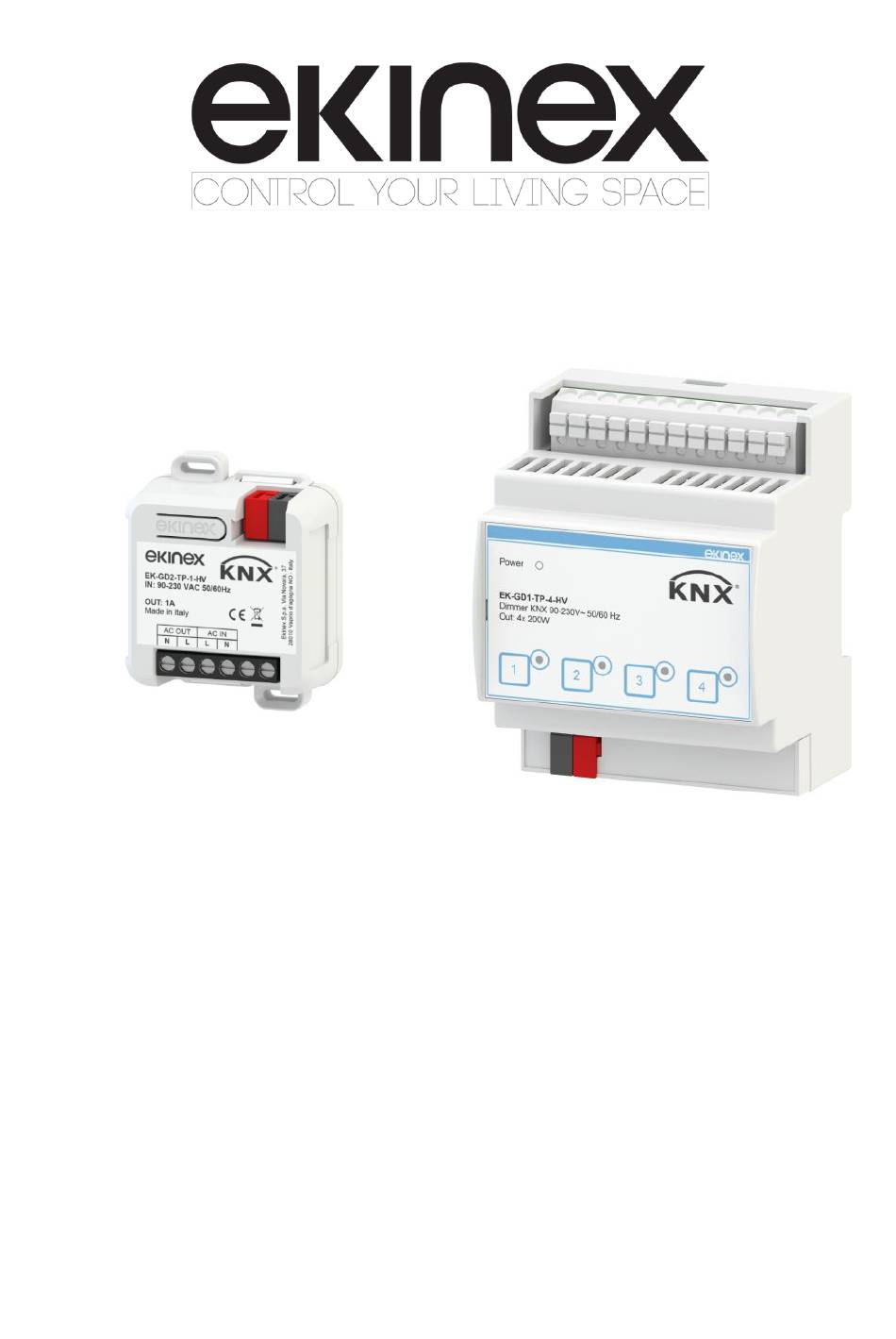

    ® The ekinex KNX phase-cut dimmers powered by 90-230 Vac with 1 or 4 channels EK-GD2-TP-1-HV and EK- GD1-TP-4-HV allow the brightness control of light loads with voltage 90 - 230 Vac at 50/60 Hz. The 1-channel model has a maximum output power of 230 W, while the 4-channel model has a max. of 200 W for each channel.

  • Page 7: Switching, Display And Connection Elements

    3. Not used 4. KNX bus terminal block 5. Programming installation test button Programming LED (internal) Figure 2 - Switching, display and connection elements for EK- GD2-TP-1-HV Release 1.0 - Updated: 31/08/2023 MAEKGDxTPxHV_EN © Ekinex S.p.A. – All rights reserved Page 7...

  • Page 8: Ek-Gd1-Tp-4-Hv Elements

    Pay particular attention to identifying the correct connections, in order to avoid short circuits and even fatal damage to the operator or to the appliance. Release 1.0 - Updated: 31/08/2023 MAEKGDxTPxHV_EN © Ekinex S.p.A. – All rights reserved Page 8...

  • Page 9: Configuration

    (1 or 4 channels) and the configuration of all the working parameters of the device. The program must be loaded into ETS (alternatively it is possible to load the entire database of ekinex® products in a single operation), after which all the device examples of the type considered can be added to the project being defined.

  • Page 10: Device Reset

    Auxiliary output function with status indication via KNX  Installer mode (only for EK-GD2-TP-1-HV, if KNX bus is present): pressing the programming button for about 2 s activates/deactivates the flashing of the programming LED and the load every 1 s ...

  • Page 11: Operation At Power Up

    When voltage is restored, the device resumes operation by restoring the status memorized when it was switched off, except for those parameters for which a different behavior has been configured. Release 1.0 - Updated: 31/08/2023 MAEKGDxTPxHV_EN © Ekinex S.p.A. – All rights reserved Page 11...

  • Page 12: Off-Line Operation

    2 seconds activates/deactivates the flashing of the programming and load LED every 1 s. In this case, the KNX bus must be connected and active. Release 1.0 - Updated: 31/08/2023 MAEKGDxTPxHV_EN © Ekinex S.p.A. – All rights reserved Page 12...

  • Page 13: Online Operation

    On/Off status: there is an object referring to each single output  Actual dimming value: contains the current unloading value the channel is set to. Release 1.0 - Updated: 31/08/2023 MAEKGDxTPxHV_EN © Ekinex S.p.A. – All rights reserved Page 13...

  • Page 14: Dimming Function

    The “On” dimming time is applied even if the intensity to be reached is not equal to 100%, for example with a restart command when it is set as the “Previous” restart level. Release 1.0 - Updated: 31/08/2023 MAEKGDxTPxHV_EN © Ekinex S.p.A. – All rights reserved Page 14...

  • Page 15: Switch On And Off Delay

    There is a specific parameter to set whether, when one of the alarms is active, it should be cyclically transmitted on the bus and at what interval. Release 1.0 - Updated: 31/08/2023 MAEKGDxTPxHV_EN © Ekinex S.p.A. – All rights reserved Page 15...

  • Page 16: Staircase Light Function

    In the event of forced termination of the timing, the output value remains the one active at the time of termination; this also applies if the termination occurs during the pre-warning time. The following figures illustrate how the manual off function works: Release 1.0 - Updated: 31/08/2023 MAEKGDxTPxHV_EN © Ekinex S.p.A. – All rights reserved Page 16...
  • Page 17 Application Manual KNX EK-GD2-TP-1-HV / EK-GD1-TP-4-HV dimmer Figure 6 - Manual switch-off function The following figures illustrate how the Restart (Retriggerable) function works: Release 1.0 - Updated: 31/08/2023 MAEKGDxTPxHV_EN © Ekinex S.p.A. – All rights reserved Page 17...
  • Page 18 Application Manual KNX EK-GD2-TP-1-HV / EK-GD1-TP-4-HV dimmer Figure 7 - Retrigger feature The following figures illustrate how the pre-warning function works: Release 1.0 - Updated: 31/08/2023 MAEKGDxTPxHV_EN © Ekinex S.p.A. – All rights reserved Page 18...

  • Page 19: Logic Function

    Figure 8 - Pre-warning feature 10.9 Logic function The device has the possibility of conditioning the status of the outputs with the application of a simple logic block. Release 1.0 - Updated: 31/08/2023 MAEKGDxTPxHV_EN © Ekinex S.p.A. – All rights reserved Page 19...
  • Page 20 This structure allows to implement also logical combinations of discrete complexity; moreover, a more stringent programmability would have added excessive complexity and would therefore have been outside the scope of obtaining a simple-to-use structure. Release 1.0 - Updated: 31/08/2023 MAEKGDxTPxHV_EN © Ekinex S.p.A. – All rights reserved Page 20...
  • Page 21 The following figures illustrate the basic logic functions better, assuming that the direct command and a single logic communication object are used as inputs: Figure 10 - OR logic function Figure 11 - AND logic function Release 1.0 - Updated: 31/08/2023 MAEKGDxTPxHV_EN © Ekinex S.p.A. – All rights reserved Page 21...

  • Page 22: Lock Function

    Release 1.0 - Updated: 31/08/2023 MAEKGDxTPxHV_EN © Ekinex S.p.A. – All rights reserved Page 22...

  • Page 23: Forcing Function

    It is possible to set what value the output should assume both when the output forcing is released and also on recovery after a bus power-off if forcing was previously in effect. Figure 14 - Forcing function Release 1.0 - Updated: 31/08/2023 MAEKGDxTPxHV_EN © Ekinex S.p.A. – All rights reserved Page 23...

  • Page 24: Scene Management

    Release 1.0 - Updated: 31/08/2023 MAEKGDxTPxHV_EN © Ekinex S.p.A. – All rights reserved Page 24...

  • Page 25: Operating Hours / Energy Consumption Counter

    Upon activation of the KNX bus, the output channels can be set in one of the following states: No change (in case of KNX bus OFF or after download) Previous state (in case of KNX bus or power ON) Release 1.0 - Updated: 31/08/2023 MAEKGDxTPxHV_EN © Ekinex S.p.A. – All rights reserved Page 25...
  • Page 26 For each of the available events, if the "ON" option is selected, it is possible to specify the value to be assumed for the channel in question. Release 1.0 - Updated: 31/08/2023 MAEKGDxTPxHV_EN © Ekinex S.p.A. – All rights reserved Page 26...

  • Page 27: Ets Application Program

    Channel configuration: general parameters of the outputs  Channel x: general parameters of a specific channel (x = 1 for EK-GD2-TP-1-HV, x = 1,2,3,4 for EK- GD1-TP-4-HV). Device parameters are divided into general parameters and specific parameters, grouped into tabs. shows the tree structure of the application program with the main Tabs.
  • Page 28 Counter function Channel 4 Main Lock function Forced function Staircase function Logic function Scenes function Night function Counter function Figure 18 - ETS application parameter structure Release 1.0 - Updated: 31/08/2023 MAEKGDxTPxHV_EN © Ekinex S.p.A. – All rights reserved Page 28...

  • Page 29: About

    The About tab is for information only and does not contain any parameters to set. The information reported © Copyright EKINEX S.p.A. 2023 Application software for ETS5 & ETS6 Version 1.00 (or later) EK-GD2-TP-1-HV, EK-GD1-TP-4-HV – KNX DIMMER series EKINEX S.p.A. Via Novara, 37 I-28010 Vaprio d’Agogna (NO) Italy www.ekinex.com...

  • Page 30: Channel Configuration

    Size Flags CO number Output 1 - ON/OFF 1 bit C-W-- [1.001] switch command This communication object is the direct command for setting the output. Release 1.0 - Updated: 31/08/2023 MAEKGDxTPxHV_EN © Ekinex S.p.A. – All rights reserved Page 30...
  • Page 31 [1.005] alarm alarm Object for the open load alarm of the channel. Output x – Open load alarm 1 bit CR-T- [1.005] alarm 52, 77, 102 Release 1.0 - Updated: 31/08/2023 MAEKGDxTPxHV_EN © Ekinex S.p.A. – All rights reserved Page 31...

  • Page 32: Channel X

    See above: x = 2,3,4. 11.4 Channel x These parameters are found under the Channel x - Main tab, where x = 1 for EK-GD2-TP-1-HV and x = 1, 2, 3, 4 for EK-GD1-TP-4-HV. The Channel x – Main tab is visible only if Output x = Direct or In parallel with channel 1 has been selected in the Channel configuration tab.
  • Page 33 50 [0 … 100] Light intensity (%) Behaviour at power ON = ON Allows you to choose the new dimming value when power is restored. Release 1.0 - Updated: 31/08/2023 MAEKGDxTPxHV_EN © Ekinex S.p.A. – All rights reserved Page 33...

  • Page 34: Lock Function

    Allows you to choose the new dimming value after downloading the ETS application. 11.4.1 Lock function These parameters are found under the Channel x - Main tab, where x = 1 for EK-GD2-TP-1-HV and x = 1, 2, 3, 4 for EK-GD1-TP-4-HV.

  • Page 35: Forced Function

    See above: x=2,3,4 11.4.2 Forced function These parameters are available under the Channel x - Main tab, where x = 1 for EK-GD2-TP-1-HV and x = 1, 2, 3, 4 for EK-GD1-TP-4-HV. The forced function allows you to force a value on the output of a specific channel, with precedence over the other functions.
  • Page 36 Size Flags CO number [2.001] 1-bit Output 1 = enabled Output 1 – Forcing command controlled 2 bit C-W-- Forced function = enabled Switch control Release 1.0 - Updated: 31/08/2023 MAEKGDxTPxHV_EN © Ekinex S.p.A. – All rights reserved Page 36...

  • Page 37: Staircase Light Function

    See above: x=2,3,4 11.4.3 Staircase light function These parameters are found under the Channel x - Main tab, where x = 1 for EK-GD2-TP-1-HV and x = 1, 2, 3, 4 for EK-GD1-TP-4-HV. For an exhaustive discussion of the staircase light function, refer to paragraph 10.8.

  • Page 38: Logic Function

    See above: x=2,3,4 11.4.4 Logic function These parameters are found under the Channel x - Main tab, where x = 1 for EK-GD2-TP-1-HV and x = 1, 2, 3, 4 for EK-GD1-TP-4-HV. For an exhaustive discussion of the staircase light function, refer to paragraph 10.9 The communication object for a specific channel is only available if the Output type is set as Direct or Copy parameters from channel.

  • Page 39: Scenes Function

    Logic object n = enabled See above: x=2,3,4 11.4.5 Scenes function These parameters are found under the Channel x - Main tab, where x = 1 for EK-GD2-TP-1-HV and x = 1, 2, 3, 4 for EK-GD1-TP-4-HV. Release 1.0 - Updated: 31/08/2023 MAEKGDxTPxHV_EN ©...
  • Page 40 Value to assign to the output for the specified scene. This is an initialisation value which can remain fixed or, if the learning mode is enabled, be overwritten by a "save scene" command. Release 1.0 - Updated: 31/08/2023 MAEKGDxTPxHV_EN © Ekinex S.p.A. – All rights reserved Page 40...
  • Page 41 1 Byte C-W-- 44, 69, 94 [18.001] Output type = Direct or Copy parameters from channel scene control Scene function = enabled See above: x=2,3,4. Release 1.0 - Updated: 31/08/2023 MAEKGDxTPxHV_EN © Ekinex S.p.A. – All rights reserved Page 41...

  • Page 42: Night Function

    KNX EK-GD2-TP-1-HV / EK-GD1-TP-4-HV dimmer 11.4.6 Night function These parameters are found under the Channel x - Main tab, where x = 1 for EK-GD2-TP-1-HV and x = 1, 2, 3, 4 for EK-GD1-TP-4-HV. For an exhaustive discussion of the scenes function, please refer to paragraph 10.13.
  • Page 43 Energy counter (Wh) enable parameters from channel Copia i parametri dal canale Counter function = enabled Current counter value of the energy absorbed by the load. x=2,3,4. Release 1.0 - Updated: 31/08/2023 MAEKGDxTPxHV_EN © Ekinex S.p.A. – All rights reserved Page 43...
  • Page 44 Copia i parametri dal canale Counter function = enabled Alarm transmitted when the output x operating time totalizer reaches the limit value of 65535 hours. x=2,3,4. Release 1.0 - Updated: 31/08/2023 MAEKGDxTPxHV_EN © Ekinex S.p.A. – All rights reserved Page 44...

  • Page 45: Alarms

    Output x – open load alarm 1 bit CR-T- 52, 76, 102 alarm Output type = Direct or Copy parameters from channel Copia i parametri dal canale See above: x=2,3,4. Release 1.0 - Updated: 31/08/2023 MAEKGDxTPxHV_EN © Ekinex S.p.A. – All rights reserved Page 45...

  • Page 46: Knx Communication Objects Summary

    Output x – Short circuit alarm 1 bit CR-T- [1.5] DPT_Alarm 26, 51, 76, 101 Output x – Open load alarm 1 bit CR-T- [1.5] DPT_Alarm 27, 52, 77, 102 Release 1.0 - Updated: 31/08/2023 MAEKGDxTPxHV_EN © Ekinex S.p.A. – All rights reserved Page 46...
